Radiolink Pixhawk Flight controller board

Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
-27 %
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
Radiolink Pixhawk Flight controller board
₹14,569
₹20,000

(inc GST)

  • Stock: In Stock
  • ₹145 FlyRobo Cashback.
  • SKU: FR-02-844
    3 or more ₹13,615
    10 or more ₹13,085
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

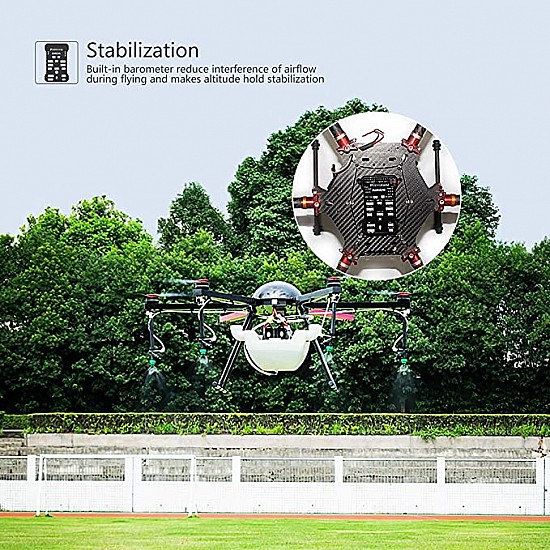

Radiolink Has optimised its pixhawk flight controller PCB layout and height hold with the barometer sensor MS5611. It is a highly stable flight controller that comes from the radiolink. This controller provides more stable flight performance even at high speed. It integrated the newest 32-bit chip technology and high-end sensors, this is absolutely one of the best flight controllers for quadcopters.

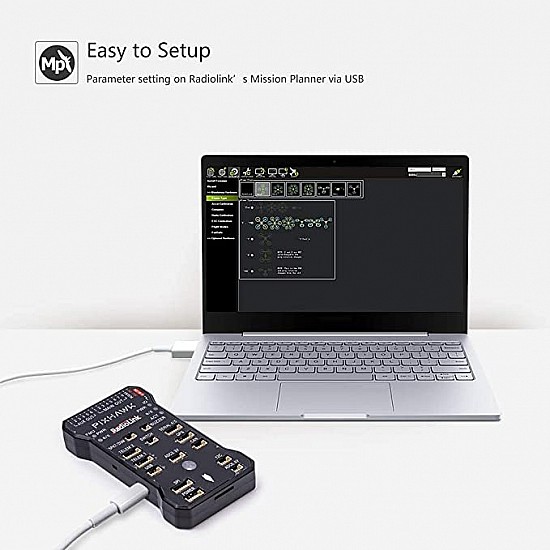

(Download Mission Planner HERE)


Feature:

  • Multi-sound buzzer interface support.
  • Multiple flight modes, support for self-stability, height-set, hover, sports, freestyle, circling, following, return, guidance, automatic, and all-powerful.

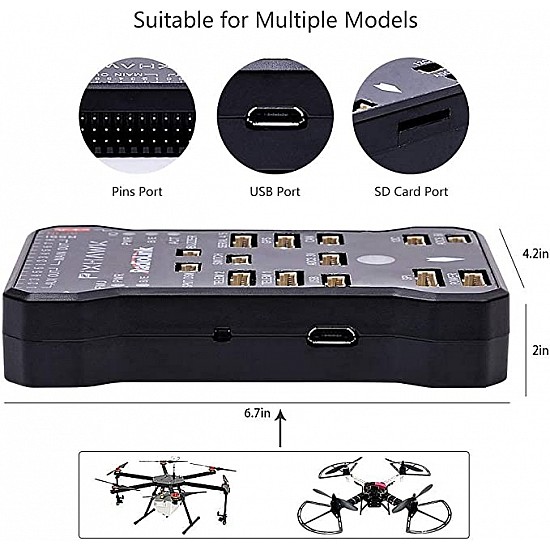

  • Abundant connectivity options for additional peripherals (GPS, I2C, SPI).
  • 14 PWM / servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible).
  • Providing a multi-sound buzzer interface.
  • Multiple flight mode switches freely, Helicopter, Fixed-wing, Multi-rotor, Model Car.
  • All interfaces are fully tested and accurately detected by an automatic detection system, avoiding bad interfaces leading to flight control installation unsuccessfully.
  • Support DSM Spektrum receiver.

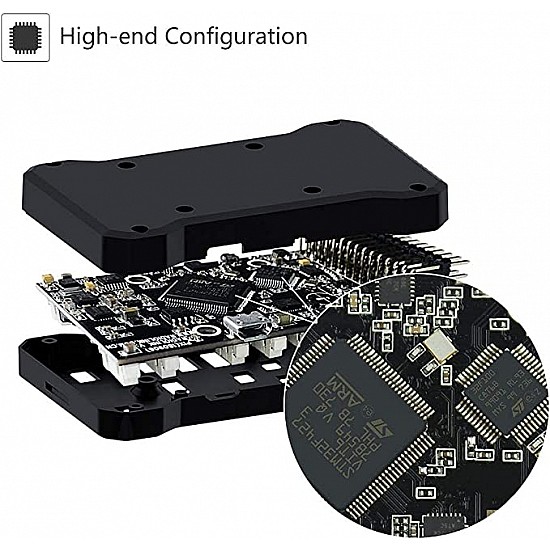

  • Advanced 32-bit CortexM4 ARM high-performance processor, and 32-bit STM32STMF100 failsafe co-processor.
  • Equipped with buzzer, 4G memory card, safety switch and power module.

Hardware Details
Barometer sensor MS5611
Three-axis digital gyroscope IST8310
triaxial accelerometer(E-compass) IST8310
Six-axis accelerometer(Gyro) MPU6000
FRAM FM25V02
(256Kb)
All Functions Automation Software Testing System Have

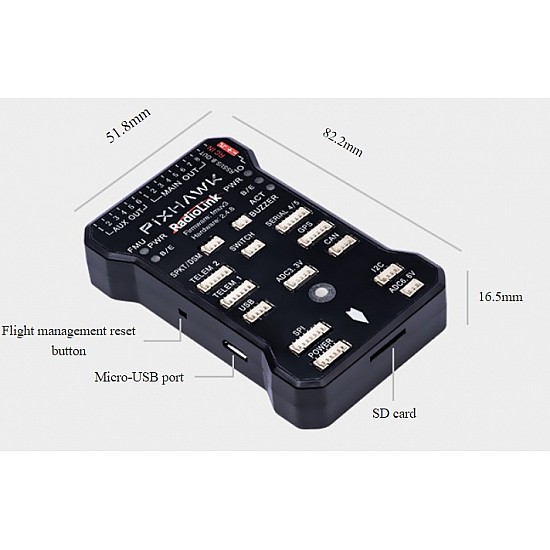

Radiolink Pinout Details:

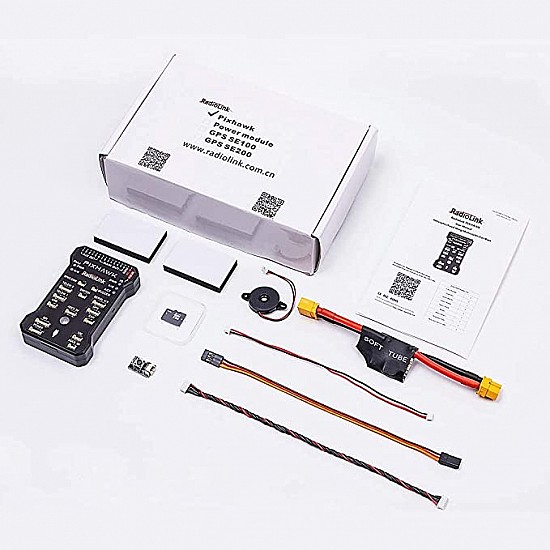

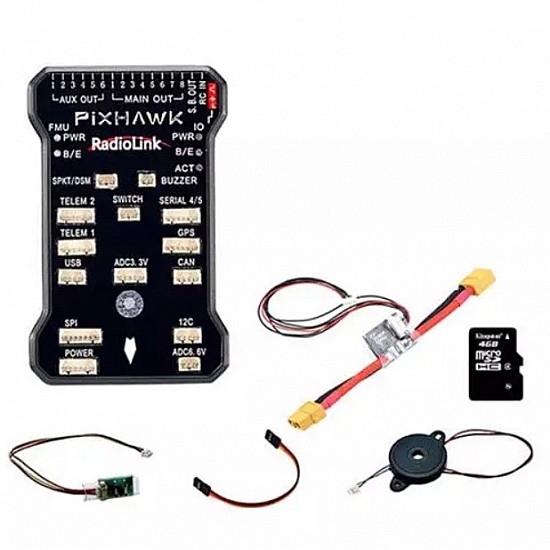

Package Content:

1 x Radiolink Pixhawk main board
1 x Power module
1 x Safety Switch
1 x Buzzer
1 x connecting wires
1 x USB Cable for Programming
1 x User Manual

Technical
Processor

32bit 32F427 ARM Cortex M4 Core + FPU (floating point unit)

Frequency

168 MHZ

Memory Size

2 MB Flash

RAM Size

256 KB

Sensor

ST Micro L3GD20H 16 bit gyroscope

Flight Controller
Sensors

MEAS MS5611 barometer
