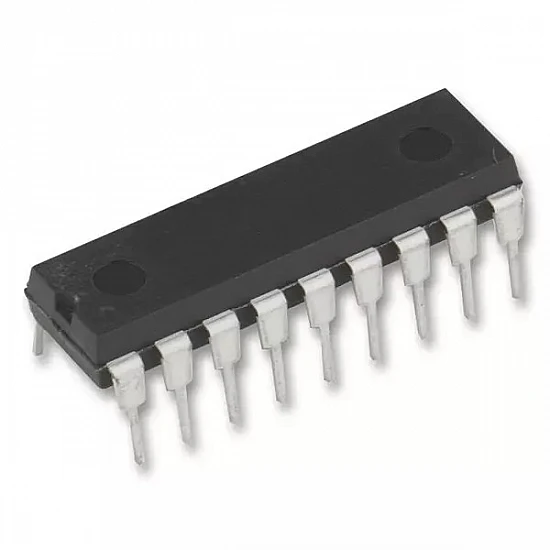

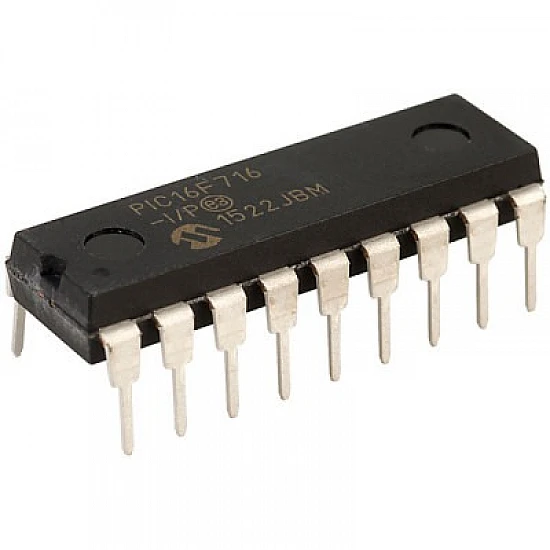

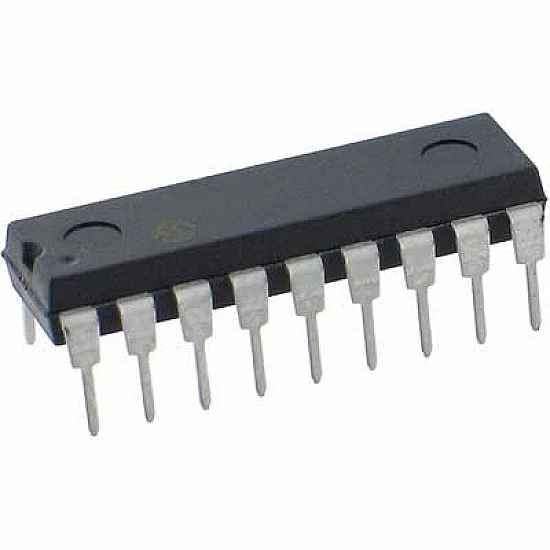

PIC16F716-I/P 8-Bit Microcontroller with ECCP - DIP-18

The PIC16F716-I/P is a versatile 8-bit microcontroller from Microchip's popular PIC16 family, featuring a user-friendly DIP-18 package ideal for prototyping and through-hole PCB designs. This powerful RISC-based MCU operates at speeds up to 20 MHz and is equipped with an Enhanced Capture/Compare/PWM (ECCP) module, making it an excellent choice for motor control and power conversion applications. It includes 3.5 KB of Flash program memory, 128 bytes of RAM, and a 4-channel 8-bit Analog-to-Digital Converter (ADC). With its wide operating voltage range (2.0V to 5.5V) and low power consumption, the PIC16F716 is a reliable solution for industrial control, automotive sub-systems, and educational electronics projects.

Features:

• Enhanced PWM (ECCP): Supports full-bridge and half-bridge outputs with programmable dead-time for motor driving.
• Integrated 8-Bit ADC: 4-channel analog-to-digital converter for precise sensor interfacing.
• High-Performance RISC CPU: Efficient architecture with only 35 instructions to learn and execute.
• Standard DIP-18 Package: Easy to handle for breadboarding, socketing, and manual soldering.
• Wide Voltage Range: Operates reliably between 2.0V and 5.5V for maximum system flexibility.
• Industrial Grade: Rated for operation in harsh environments from -40°C to +85°C.

Package Includes:

1 x PIC16F716-I/P PIC16F716 DIP-18 8-bit microcontroller chip
