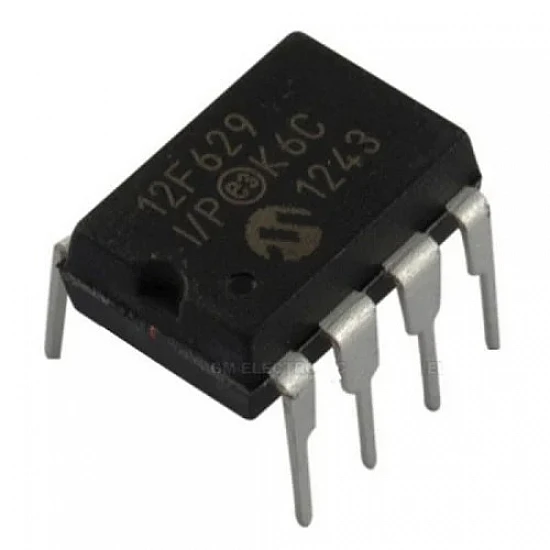

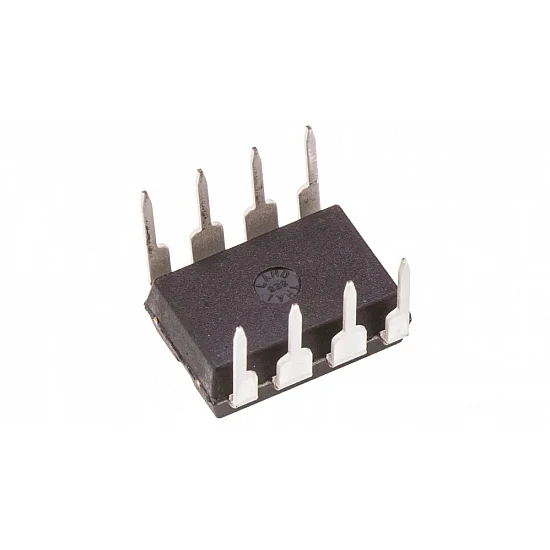

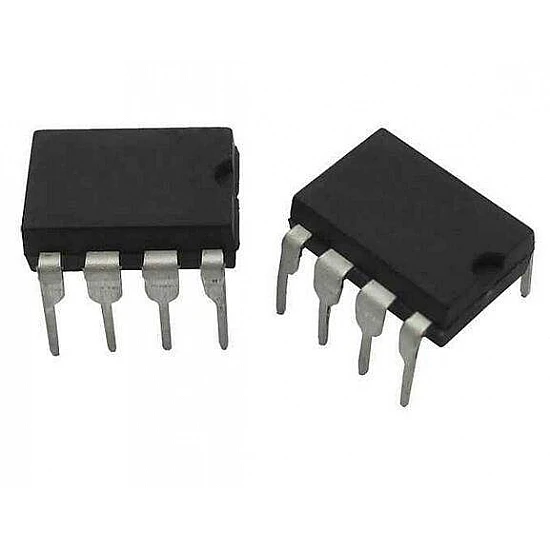

PIC12F629-I/P 8-Bit Flash Microcontroller with EEPROM DIP-8

The PIC12F629-I/P is a highly efficient 8-bit CMOS microcontroller from Microchip's mid-range PIC12 family, engineered for applications where board space and power consumption are critical. Housed in a standard 8-pin DIP package, it features 1.75 KB of Flash memory, 128 bytes of EEPROM, and 64 bytes of RAM. This microcontroller stands out with its internal 4 MHz oscillator, which frees up pins for I/O use, and its integrated analog comparator. With only 35 instructions to learn and an ultra-low standby current of just 1 nA, the PIC12F629 is a robust and beginner-friendly solution for small-scale industrial control, automotive sub-systems, and consumer electronics requiring long battery life.

Features:

• High-Performance RISC CPU: Easy-to-learn 35-instruction set with 200ns execution at 20MHz.
• Integrated 128B EEPROM: Non-volatile data storage for calibration constants and system settings.
• Compact DIP-8 Package: Through-hole design perfect for prototyping, breadboarding, and simple PCBs.
• Internal 4 MHz Oscillator: Precision factory-calibrated oscillator (±1%) saves external component costs.
• Ultra-Low Power consumption: Features a power-saving Sleep mode with standby current as low as 1 nA.
• Analog Comparator: Includes a single analog comparator with a programmable on-chip voltage reference.

Package Includes:

1 x PIC12F629-I/P 8-bit flash microcontroller DIP-8 12F629
