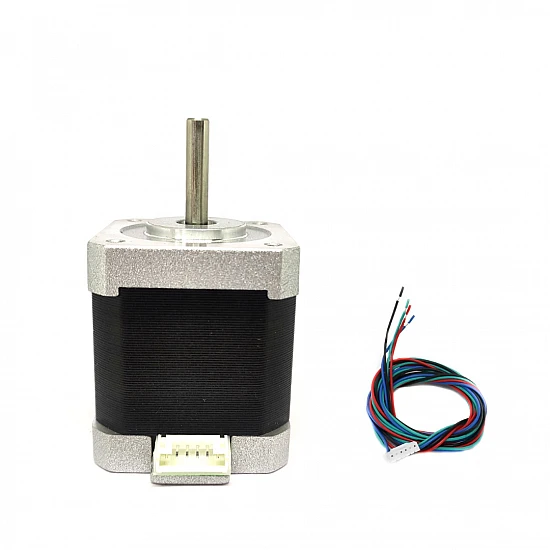

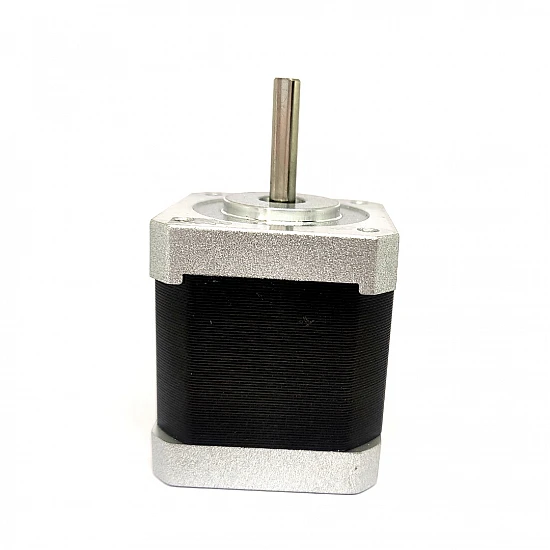

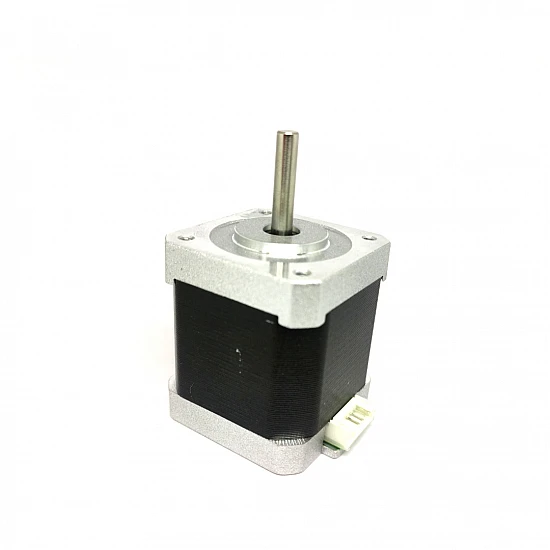

NEMA17 5.5 KG-CM Stepper Motor

NEMA17 5.5 KGCM Stepper Motor
NEMA17 5.5 KGCM Stepper Motor
NEMA17 5.5 KGCM Stepper Motor
-14 % Out Of Stock
NEMA17 5.5 KGCM Stepper Motor
NEMA17 5.5 KGCM Stepper Motor
NEMA17 5.5 KGCM Stepper Motor
NEMA17 5.5 KG-CM Stepper Motor
₹859
₹999

(inc GST)

  • Stock: Out Of Stock
  • ₹8 FlyRobo Cashback.
  • SKU: FR-04-342
    5 or more ₹844
    15 or more ₹835

The NEMA17 5.5 kg-cm Stepper Motor can provide 5.5 kg-cm of torque at 1.5A current per phase. The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control.

The motor’s position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. The NEMA17 5.5 kg-cm Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.

They are very useful in various applications, especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc.

Features:

  • High accuracy of around 3 to 5% a step.
  • The input pulse decides the rotation angle of the motor.

  • Control of this motor is less costly because of the exclusion of complex control circuitry.

  • Provides good starting, stopping, and reversing.

  • The speed is proportional to the frequency of the input pulses.

Package Includes:

1 x NEMA17 5.5 KGCM Stepper Motor

Technical
Accuracy

Inductance Accuracy: ±20%; Resistance Accuracy: ±10%; Step Angle Accuracy: ±5%

Cable Length

100 cm

Detent Torque

2.6 Kg-Cm

Holding Torque

5.5 Kg-Cm

Inductance

5.5 mH/Phase

Input Current

1.5A

No. of Leads

6

Operating Voltage

4.2 ~ 6.0 VDC

Resistance

2.8 ohm

Shaft Diameter

0.5 cm

Shaft Length

2.2 cm

Shaft Type

D-type

Step Angle

1.8°

Dimensions (LxWxH)

4.2x4.2x6.9 cm
