Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone

Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone
Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone
Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone
Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone
Out Of Stock
Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone
Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone
Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone
Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone

Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone
₹3,999

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹39 FlyRobo Cashback.
  • SKU: FR-02-839

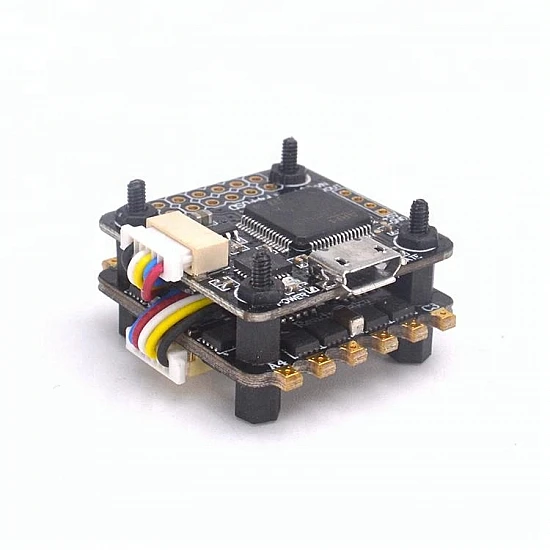

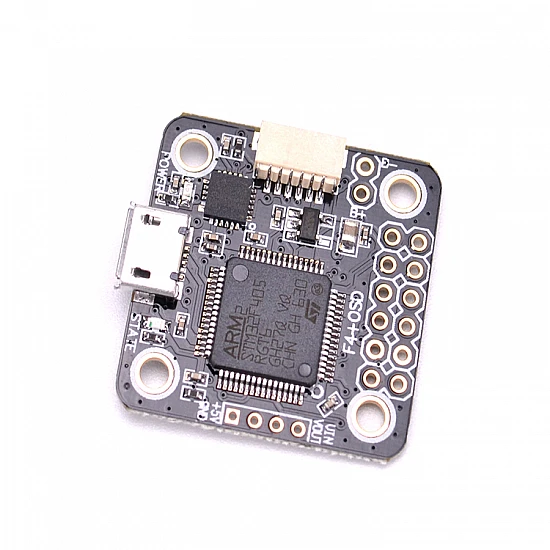

Mini F4 Flytower Flight controller equipped with MPU6000 F4 flight control acceleration for faster response; integrated 5V 1A BEC, integrated OSD. (This version is 6DOF, no barometer and electronic compass)

Features:

  • For 4-axis models tailored, built-in LC filter, support BF firmware
  • Support 2-4S power input
  • Built-in 5V 1A output BEC
  • Supports Oneshot125 and Multishot. DSHOT150/300, Multishot, PMW via firmware flash.

Package Includes:

1 x Mini F4 Flytower Flight controller Integrated OSD 4 in 1 Built-in 5V 1A BEC ESC Support For FPV RC Drone (unassemble).

Technical
Processor

SILABS EFM8BB21F16G

Driver

3 in 1 driver

Firmware

BLHeli-s

Input Voltage

2-5S

Maximum Current

30A

Mosfet

TPN2R703NL

Length

23 mm

Width

21 mm
