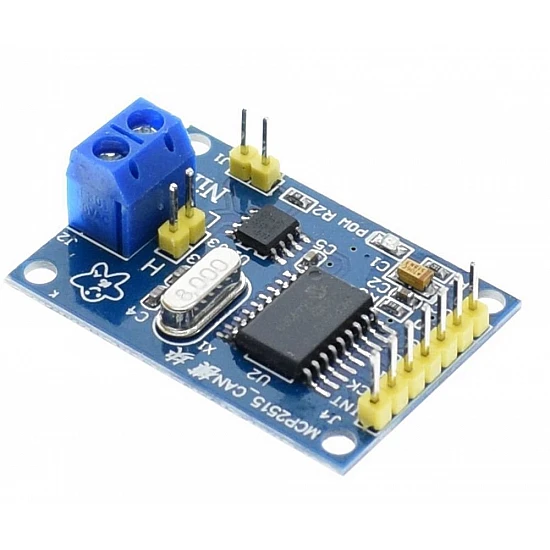

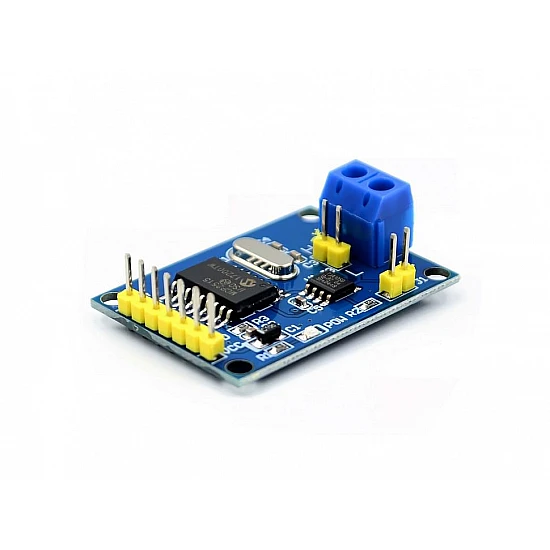

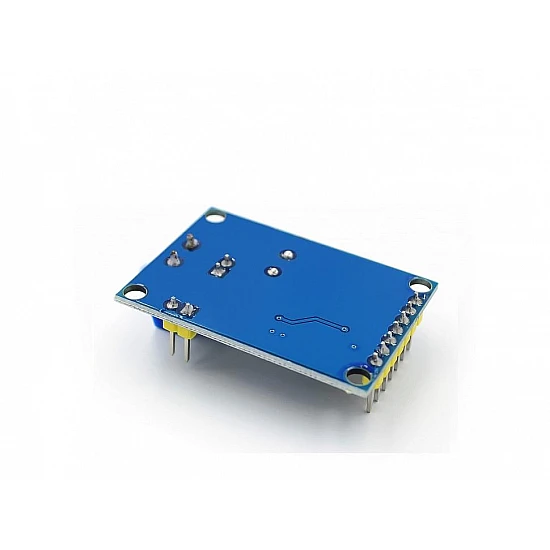

This is MCP2515 CAN Bus Module with TJA1050 Transreceiver which can adopt CAN controller MCP2515 and TJA1050 high-speed CAN transceiver. Onboard independent key. Microchip MCP2515 independent CAN protocol controller, support CAN V2.0B regulation.
This is easy to use CAN bus module controlled via SPI Interface. This module can be easily interfaced to any microcontroller via SPI Interface. It can also be interfaced to Arduino and Raspberry Pi.
- Use High-speed CAN transceiver TJA1050
- Support CAN V2.0B technical standard, communication rate 1Mb / S.
- SPI control for expanding Multi CAN bus interface
- 0 to 8 bytes long data field.
- Standard frames, extended frames, and remote frames.
- Impedance matching, guaranteed drive capability, long-distance data transmission, prevent signal radiation
- With power pin
- Use the serial port could view the communication data
- With the independent key, LED indicator, Power indicator
- The working current: typical 5mA, standby current 1 microamp. Except for the power indicator.
- Positioning screw hole center spacing 23 mm x 38 mm
1x MCP2515 CAN Bus Module TJA1050 Receiver
|Communication Rate||1 Mbps|
|crystal oscillator||8 MHz|
|Input Current||5 V|
|Terminal Resistance||120 Ω|
|Working Current||5 mA|
