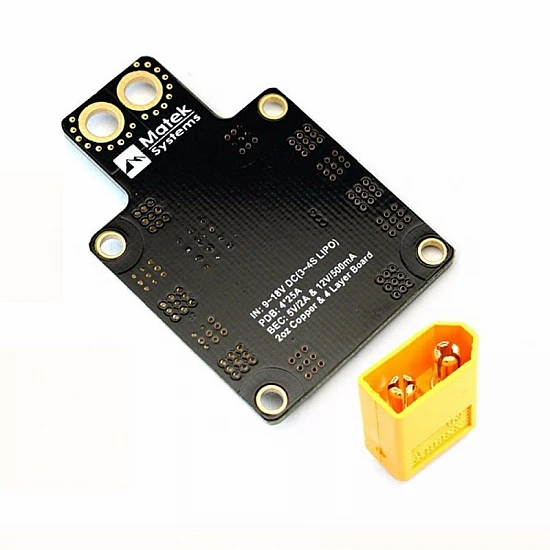

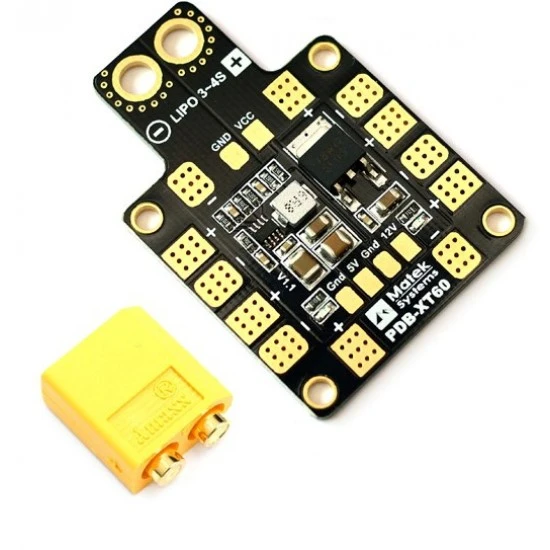

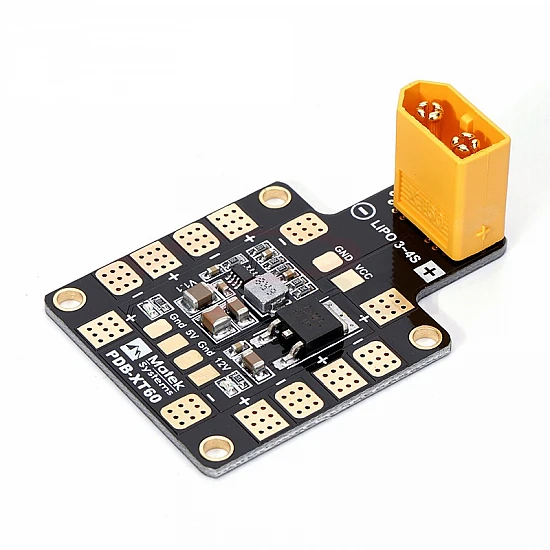

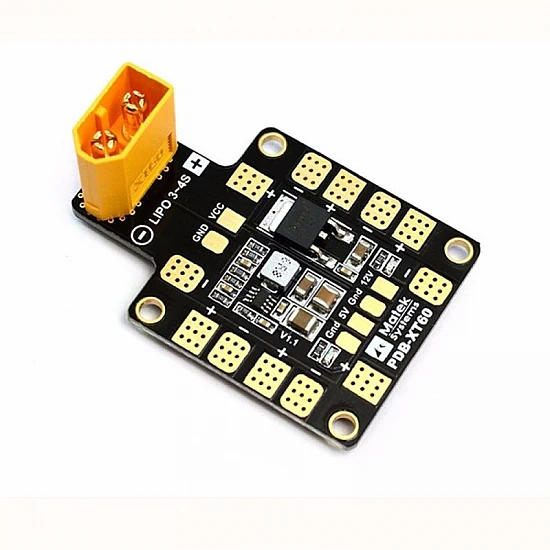

PDB-XT60 with BEC 5V and 12V distributes power from a LiPo pack to 6 ESCs, as well as providing synchronized & regulated DC 5V outputs & linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc. It is a great package to get your Racing Drones powered up for racing.
- 2oz copper, 4-layers &1.6mm PCB.
- Built-in XT60 Socket
- Total 6 pairs ESC solder tabs are fit for H or X type frame
- 5V & 12V Output LED indicators & Short circuit tolerant
1 x PDB-XT60 W/BEC 5V and 12V board
1 x XT60 Male Connector
|Output Continuous Current|
25A @4 and 15A @6
|Short Circuit Tolerant Voltage|
9 to 18V
