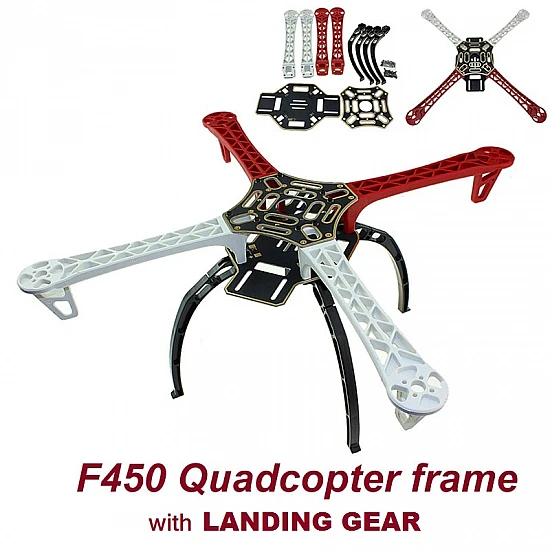

Quadcopter F450 Frame with Landing Gear

Description:

Frame:

    Frame Width: 450mm

    Frame Height: 55mm
    Frame Weight: 295g (without electronics)
    Motor Mount Bolt Holes: 16/19mm

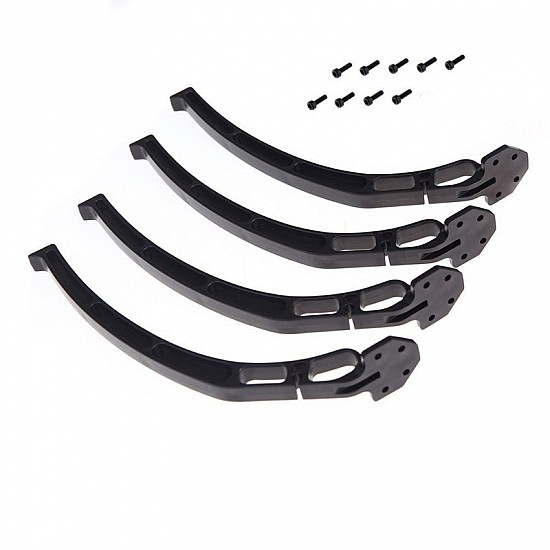

Landing Gear:

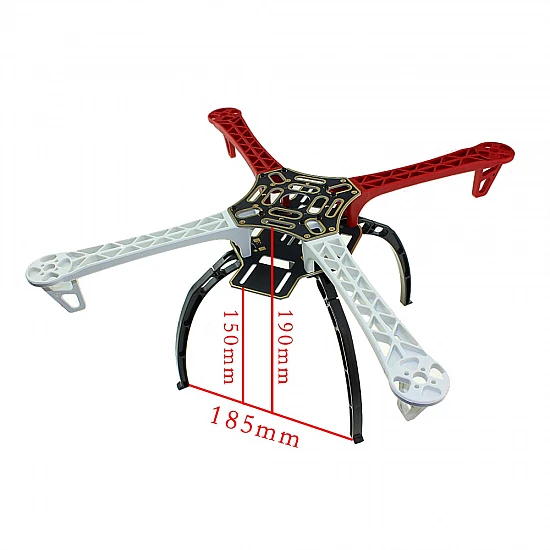

    Height: 150mm
    Weight: 90grams

Features:
Built from high quality glass fiber and ultra durable polyamide nylon.
Arms are reinforced and much more stronger to prevent and reduce breakage.
Integrated PCB connections for direct soldering your ESCs.
Colored arms for orientation to keep you flying in the right direction.
Large mounting tabs on main frame bottom plate for easy camera or other accessories mounting.
Pre-threaded brass sleeves for all of the frame bolts.
Easy assembly.

Required (package not included):
4 x 22~28mm 800~1200kv (or similar size/kv)
4 x 15~30 Amp ESC (Recommend 30A OPTO)
4 x 8x4~10x4.5 Prop (2CW & 2CCW)
1 x Multi-Rotor Control Board (Recommend KK2.1)
1 x 1500~2200mAh 3s 11.1v Lipoly battery

Package included:

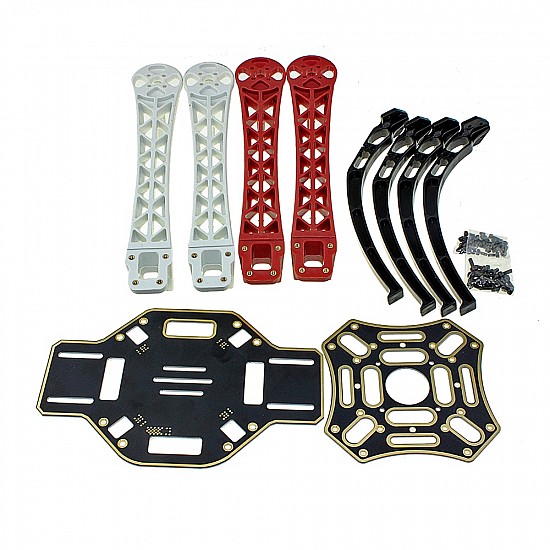

1 x F450 Frame Kit
4 X High Landing Gear
