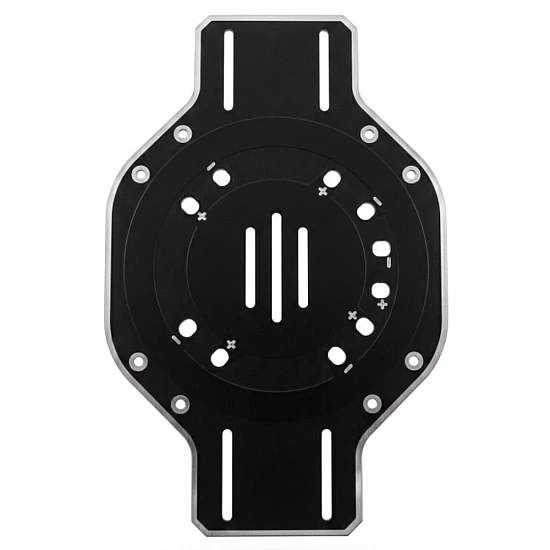

Lower Plate for F450 Quadcopter Frame with Built-in PDB

The F450 Quadcopter Frame Lower Plate with Built-in Power Distribution Board (PDB) serves as the ultimate foundation for building a clean, reliable, and high-performance DIY drone. Specifically engineered for standard 450mm multirotor frames, this bottom board integrates a heavy-duty copper bus directly into its structure. This layout eliminates the need for a separate power distribution board or messy wiring harnesses, solving the critical challenge of cable management and significantly reducing overall weight while lowering the risk of short circuits during intense flights.

Tailored for electronics hobbyists, engineering students, and drone makers, this plate features large, easy-to-solder gold-plated power pads that facilitate low-resistance connections for your ESCs and main battery input. It functions seamlessly as a core component in autonomous IoT aerial vehicles or custom RC aircraft, providing a solid, stable mounting platform for flight controllers like Pixhawk, APM, or Arduino-based boards. Natively compatible with standard F450 flame wheel arms, it ensures a highly rigid and reliable power delivery system.

Features:

• Integrated Power Distribution: Built-in copper traces route power directly to all four Electronic Speed Controllers (ESCs).
• High-Rigidity Material: Fabricated from ultra-durable, high-strength glass fiber PCB composite for crash resistance.
• Solder-Friendly Pads: Generous, high-conductivity gold-plated solder points ensure reliable, low-resistance connections.
• Wide Voltage Support: Optimally designed to handle power delivery from 2S to 4S LiPo battery configurations.
• Perfect Drop-In Fit: Matches original F450 frame dimensions and pre-drilled mounting hole alignments exactly.

Package Includes:

1 x F450 Quadcopter Frame Lower Plate with Built-in PDB
