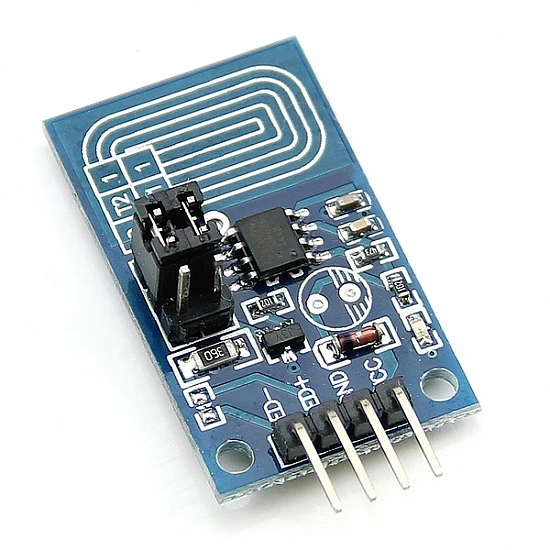

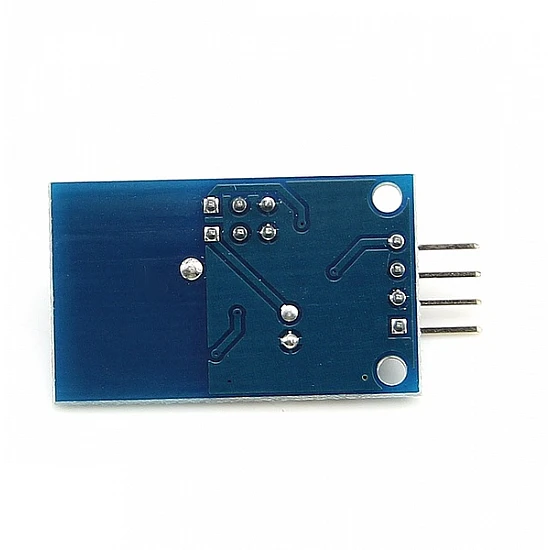

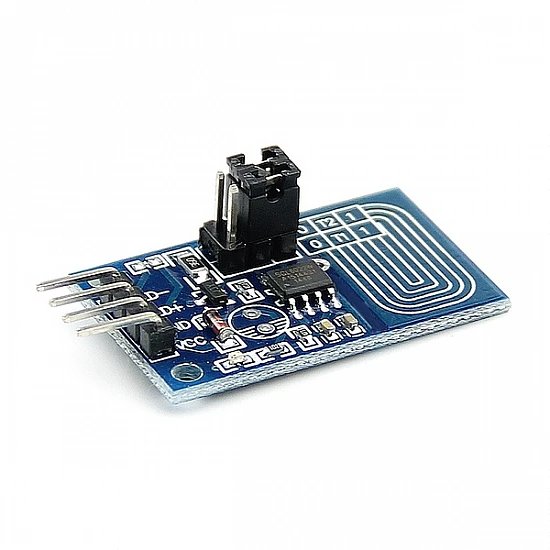

LED Dimming PWM Control Capacitive Touch Dimmer Switch Module

LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
-56 %
LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
LED Dimming PWM Control Capacitive Touch Dimmer Switch Module
₹48
₹109

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-816
    10 or more ₹46
    50 or more ₹45



The default function of the capacitor touch dimmer is a switch, dimming, with brightness memories LED touch dimming. It will light slowly when turning on the lights, and become dark slowly when turn off, which effectively avoids the stimulation to eyes.

The lamp brightness can be adjusted by requirement, it is very to operate. It can touch in medium protection, such as glass, acrylic, plastic, ceramics, and so on, which is very safe.

Features:

  • The lamp brightness can be adjusted by requirement, it is very to operate.
  • It can touch in medium protection, such as glass, acrylic, plastic, ceramics, and so on, which is very safe.
  • Simple applied circuit, less peripheral devices, easy processing, low cost.
  • Anti-power and phone interference, the EFT can reach above +/-2KV; the touch response sensitivity and reliability will not be affected by the close distance or multi-angle mobile phone interference.
  • ApplicationIt can control LED modules, light, and so on. It is available for indoor LED, lighting lamps, DIY automotive lights dimming refit.
  • Function: Single touch, using the principle of capacitance touch. The default function is a switch, dimming, with brightness memories LED touch dimming. It will light slowly when turning on the lights, and become dark slowly when turn off, which effectively avoids the stimulation to eyes.
  • Dimming Mode: Non-polar PWM dimming.

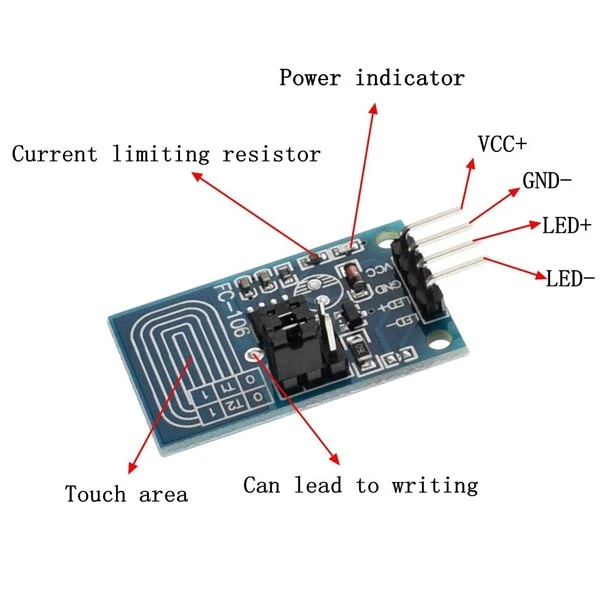

  • Wiring Method: PCB board(VCC, GND) is the power input, (LED+, LED-) is connected with the LED lamps of positive and negative level (fingerprint) touch area, also can wire to lead out (the wiring should not be too long), copper skin area should be 2x3cm. With copper foil, the copper foil board module will side to the shell side.

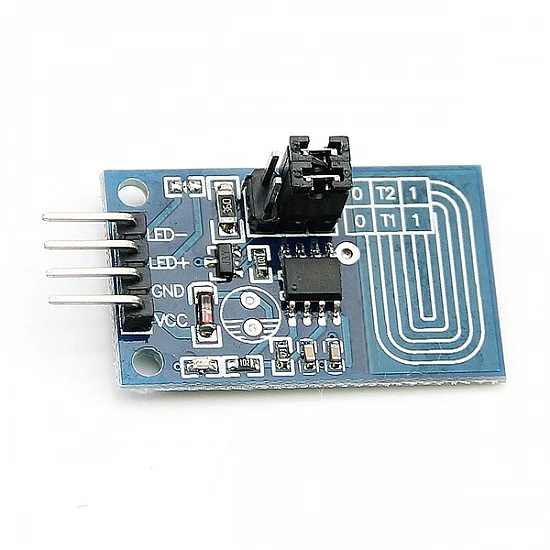

Pin Out
VCC+ input +ve
GND Input -ve
LED+ To Lamp +ve
LED- To Lamp -ve





Package Includes:



1 x LED Dimming PWM Control Capacitive Touch Dimmer Switch Module



Technical
Aperture

1.6 cm

Operating Voltage

2.4 ~ 4.5 V

Length

3.9 cm

Height

1.1 cm

Width

1.9 cm

Questions1 Answers3 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?644
What is GND and VCC Terminal
1) Should we connect power directly or should we have to connect to a adapter 2) what is the power rating for the adapter if any
Prakash
  • Pin Out
    VCC+ input +ve
    GND Input -ve
    LED+ To Lamp +ve
    LED- To Lamp -ve


    Operating Voltage is 2.4~ 4.5 V.
    FlyRobo[ 22/09/2021 ]
    Was this answer helpful?-8
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?-1113
