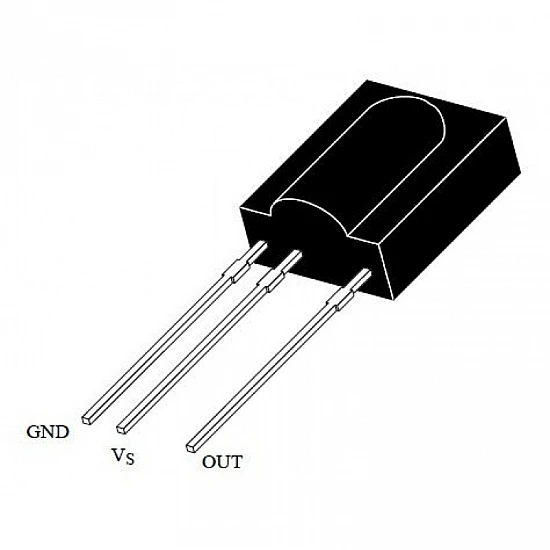

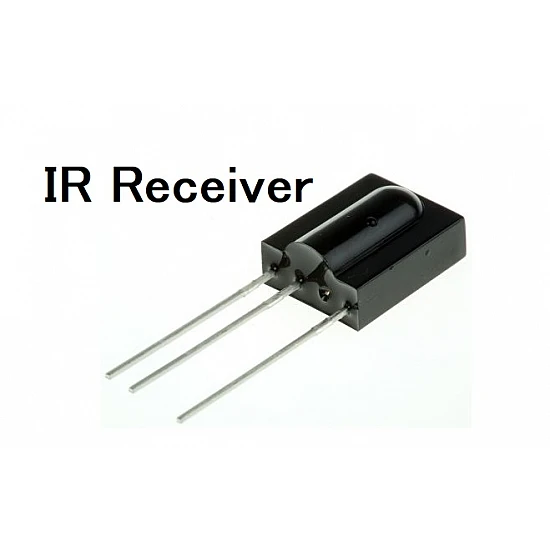

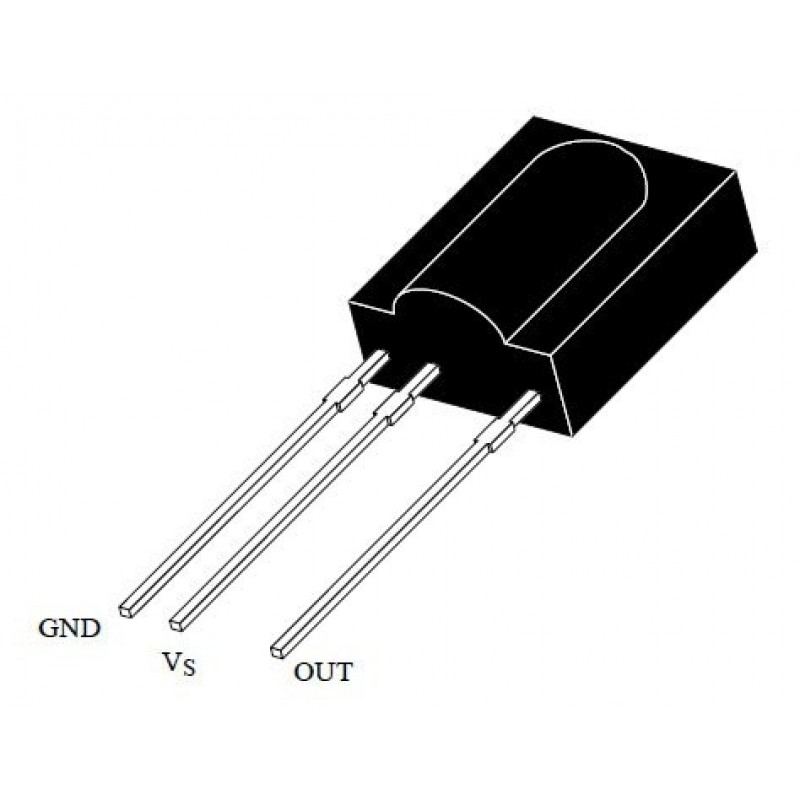

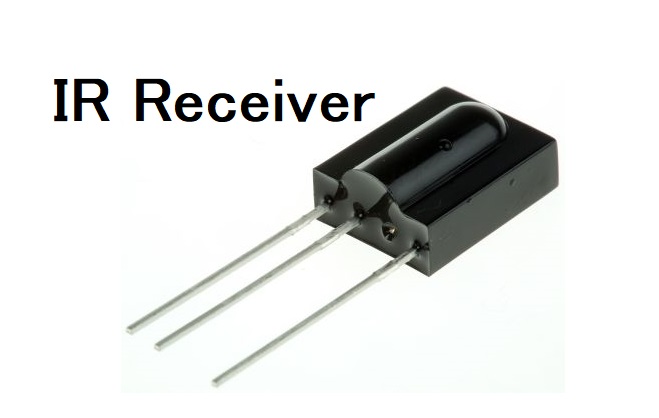

IR Receiver TSOP1738 - Infrared Receiver

TSOP1738 is an infrared receiver tuned to receive IR of frequency 38 kHz only. It is perfect for making obstacle sensors and to read signals from most IR remotes(TV, AC, Home Theatre Remotes, etc). When used as a receiver in distance sensors, it provides better performance as it allows better reception and protection from ambient light compared to other IR receivers. It can be used to read signals of most IR Remotes. The TSOP1738 IR sensor module consists of a PIN diode and a preamplifier that are embedded into a single package. The output of TSOP is active low and it gives +5V in the off state. When IR waves, from a source, with a center frequency of 38 kHz incident on it, its output goes low. Lights coming from sunlight, fluorescent lamps, etc. may cause disturbance to it and result in undesirable output even when the source is not transmitting IR signals. A bandpass filter, an integrator stage, and automatic gain control are used to suppress such disturbances.The TSOP module has an inbuilt control circuit for amplifying the coded pulses from the IR transmitter. The sensor can be used for Proximity detection application along with an IR led in robotics and security systems. It receives IR signal at 38khz frequency.

Features:

• Photodetector and preamplifier in one package
• Internal filter for PCM frequency
• Improved shielding against electrical field disturbance
• TTL and CMOS compatibility
• Output active low
• Low power consumption
• High immunity against ambient light
• Continuous data transmission possible (up to 2400 bps)
• Suitable burst length 10 cycles/burst

Specifications:

• Supply Voltage: 5 V
• Power consumption: 0.4 to 1.0 mA
• Min. Ee irradiation: 0.35 mW/m2 typ.
• The angle of detection: 90
• Temperature range: -25 C to +85 C

Package includes:

1 x TSOP1738 IR Receiver
