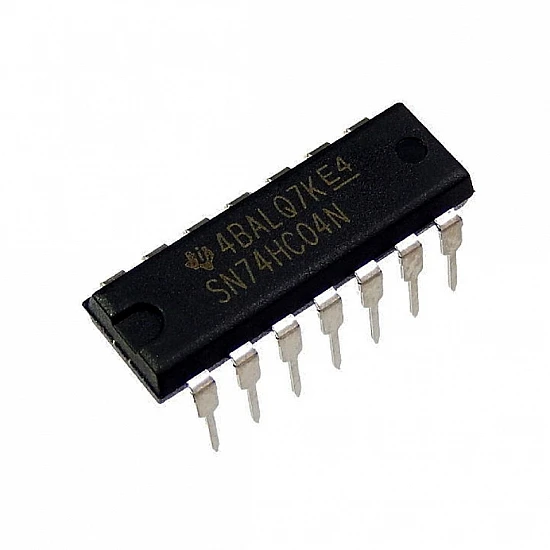

IC 74HC04 Hex Inverter Dip

74HC04 is Hex Inverter NOT gate IC. It consists of six inverters which perform logical invert action. The output of an inverter is the complement of its input logic state i.e. when input is high its output is low and vice versa. The device contains six independent gates each of which performs logic INVERT function. The operating voltage is 5V, the high-level input voltage is 2V, and the low-level input is 0.8V. It contains absolute maximum ratings over operating free-air temperature range, recommended operating conditions, electrical characteristics over recommended operating free-air temperature range.

Features:-

• 6 Hex Inverters in a 14-Pin DIP Package
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Large Operating Voltage Range
• Wide Operating Conditions

Specifications:-

• Type: DIP Bipolar
• Voltage Rating: 4.75 to 5.25V
• Current Rating: Max. 16mA Output
• Temperature Rating: 0 to 70Deg C
• Number of: 14 Pins
• Mounting: Through Hole

Package Includes:

1 x IC 74HC04 Hex Inverter Dip
