300RPM High Torque Side Shaft DC Metal Geared Johnson Motor

High Torque Side Shaft DC Metal Geared Motor -300RPM - DC Gear Motor - Motor and Driver
-33 % Out Of Stock

300RPM High Torque Side Shaft DC Metal Geared Johnson Motor
₹469
₹699

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹4 FlyRobo Cashback.
  • SKU: FR-04-324

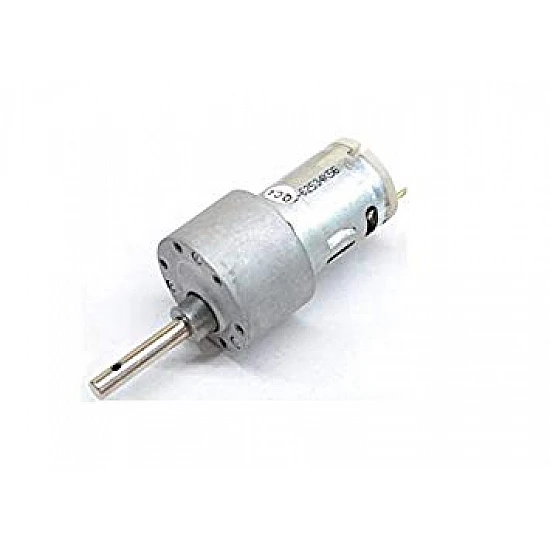

300 RPM 12V DC Johnson high torque geared motors for robotics applications. It gives a massive torque of 30Kgcm. The motor comes with metal gearbox and off-cantered shaft.


Specification :

  • Motor Type High Torque Side Shaft Metal Geared box Motor.
  • Rated Voltage 12V DC.
  • Rated RPM 300
  • Torque 30Kgcm
  • Weight 180gm
  • No Load Current 800mA (Max.)
  • Load Current 7.5A (Max.)
  • Shaft Diameter 6mm (with M3 thread hole.)
  • GearBox Diameter 37mm
  • Shaft Length 30mm
  • Motor Diameter 28.5mm
  • Motor Length 63mm (Without Motor Shaft.)

features :

  • Easy to connect with Pully, Wheel, and rotary with M3 thread hole.
  • Motor and Gearbox are repairable.
  • Long Gearbox shaft provide disclosement with machine application.
  • It provides very high torque, applicable in spindle motor also.



Package Content :

  • 1 X Gear Motor
