The GY-271 is supposed to have an HMC5883L, but some boards have a QMC5883L which has the same basic capability, but is not compatible with the H. The GY-271 QMC5883L 3-axis Electronic Compass Module Magnetic Field Sensor is designed for low field magnetic sensing with a digital interface and it is perfect to give precise heading information. If you get a GY-271 board and observe an I2C address of 0x0C and read back nothing but zeros from the board, then you probably have a QMC5883L chip!
This compact sensor fits into small projects such as UAVs and robot navigation systems. The sensor converts any magnetic field to a differential voltage output on 3 axes. This voltage shift is the raw digital output value, which can then be used to calculate headings or sense magnetic fields coming from different directions.
A development board that provides a simple interface for the HMC5883L (three-axis magnetic field module).
- 3-axis magnetic electronic compass.
- Precise heading information.
- Fits into small projects easily.
- I2C communication.

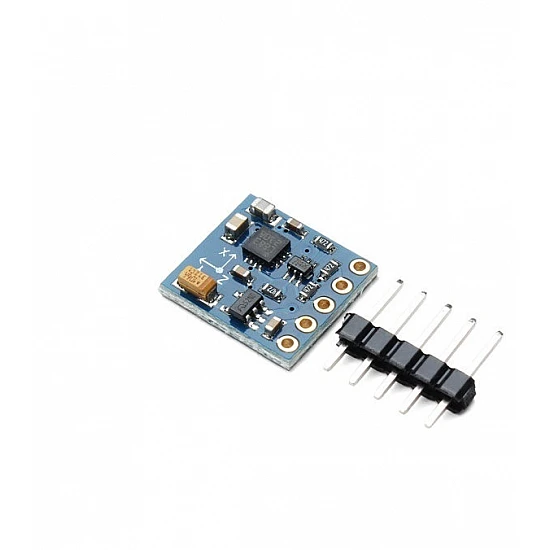

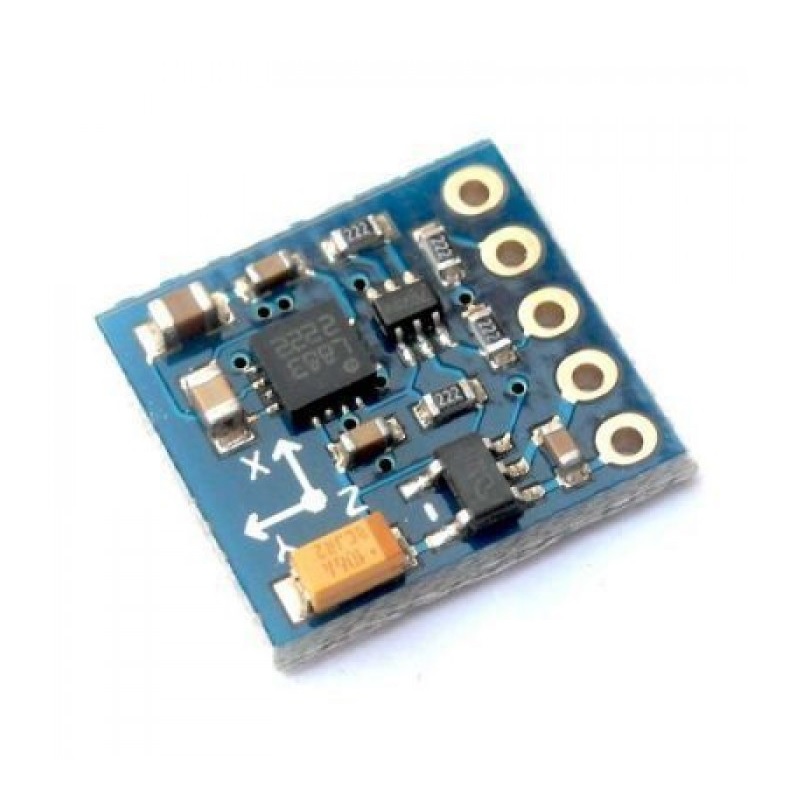

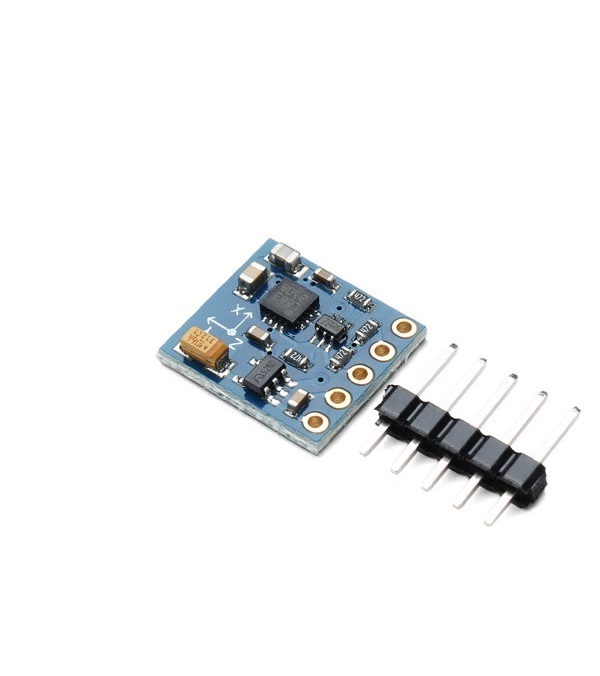

1 x GY-271 QMC5883L 3-axis Electronic Compass Module
