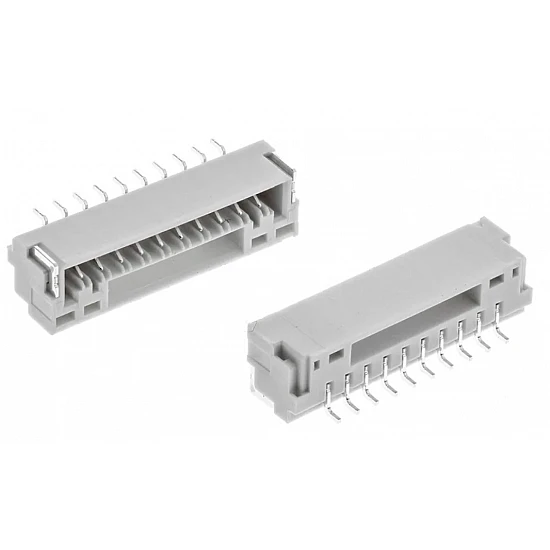

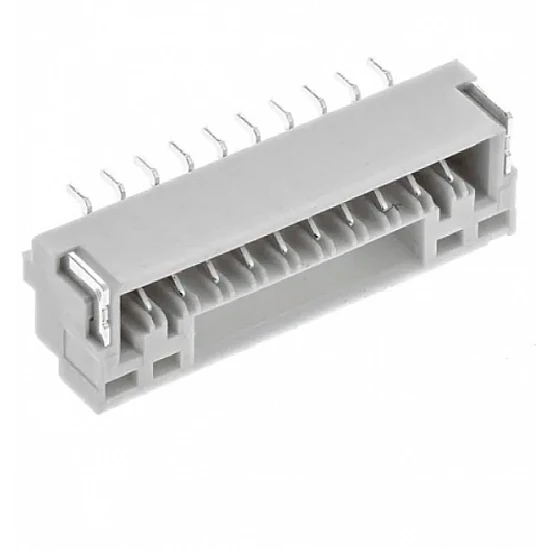

GH 1.25mm Pitch GH-10P Horizontal SMT Connector with Lock

The GH 1.25mm Pitch GH-10P SMT Horizontal Socket Connector is a high-performance interconnect solution designed for high-density electronic assemblies. This connector features a specialized horizontal surface-mount (SMT) design, making it ideal for low-profile PCB applications where vertical space is at a premium. Equipped with a secure friction lock and buckle mechanism, it ensures a stable and vibration-resistant connection, preventing accidental dislodgement in mobile or industrial equipment. The 1.25mm pitch allows for a compact footprint while maintaining reliable electrical contact across all 10 pins. Manufactured with high-grade heat-resistant plastic and phosphor bronze terminals, this connector provides excellent durability and signal integrity for modern electronic device manufacturing.

Features:

• Secure Locking Mechanism: Features an integrated buckle and lock for superior vibration resistance and connection stability.
• Ultra-Compact 1.25mm Pitch: Designed for high-density wiring in modern, small-scale electronic devices.
• Horizontal SMT Mounting: Optimized for low-profile PCBs, saving valuable vertical space within enclosures.
• High-Temperature Resistance: Constructed with materials suitable for standard SMT reflow soldering processes.
• Reliable Contact: Phosphor bronze terminals provide excellent conductivity and long-term durability.
• Versatile Application: Perfect for drones, portable consumer electronics, and industrial control modules.

Package Includes:

1 x GH 1.25mm Pitch GH-10P SMT Horizontal Socket Connector with Buckle and Lock
