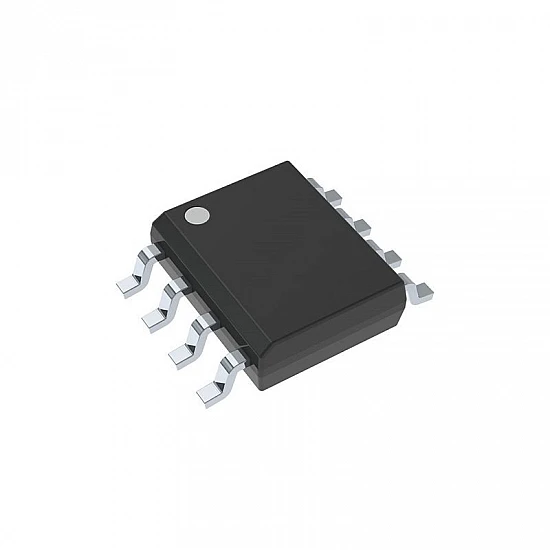

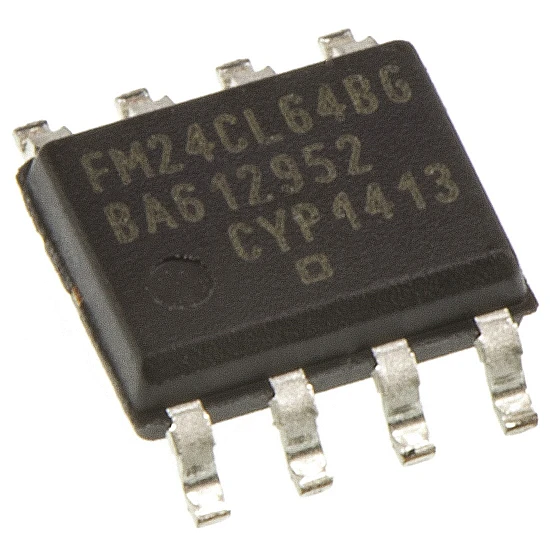

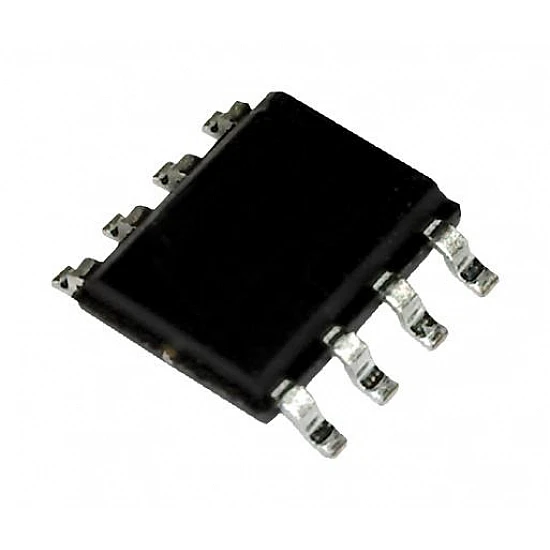

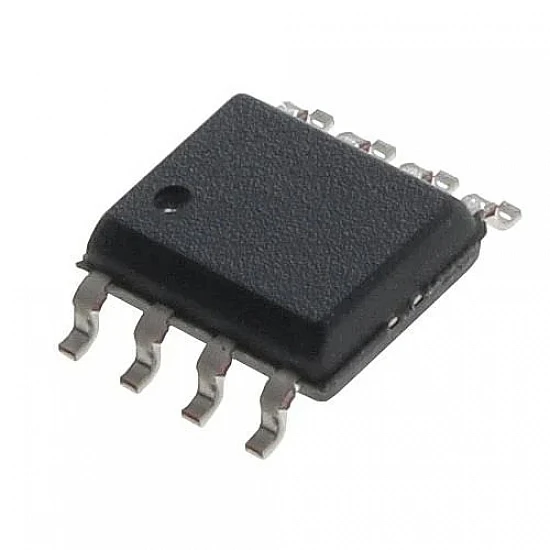

FM24CL64B-GTR 64Kb Serial I2C F-RAM Non-Volatile Memory SOP-8

The FM24CL64B-GTR is a high-performance 64-kilobit non-volatile ferroelectric RAM (F-RAM) designed for applications requiring fast, frequent, and reliable data writes. Unlike traditional EEPROM, F-RAM technology offers instantaneous write capabilities at full bus speeds without any 'write-delay' overhead. Organized as 8,192 x 8 bits, it supports an industry-standard I2C interface operating at up to 1 MHz. With a remarkable endurance of 100 trillion read/write cycles and over 150 years of data retention, the FM24CL64B is a robust hardware drop-in replacement for serial EEPROMs. Its ultra-low power consumption and wide industrial temperature range (-40°C to +85°C) make it the premier choice for mission-critical data logging, smart metering, automotive systems, and industrial control electronics.

Features:

• F-RAM Technology: Combines the non-volatility of ROM with the fast write speeds of RAM.
• High Endurance: Supports 10^14 read/write cycles, exceeding EEPROM by millions of cycles.
• NoDelay™ Writes: Eliminates write-cycle delays and data polling for improved system efficiency.
• Low Power Consumption: Consumes only 100µA active current at 100kHz and 3µA in standby.
• Fast I2C Interface: Fully compatible with 1MHz, 400kHz, and 100kHz bus frequencies.
• Industrial Grade Reliability: Rated for harsh environments with 151-year data retention at 85°C.

Package Includes:

1 x FM24CL64B-GTR 64Kb Serial I2C F-RAM Non-Volatile Memory SOP-8
