F3 EVO V2.0 Flight Controller Board for micro FPV

F3 EVO V2.0 Flight Controller Board for micro FPV
F3 EVO V2.0 Flight Controller Board for micro FPV
F3 EVO V2.0 Flight Controller Board for micro FPV
Out Of Stock
F3 EVO V2.0 Flight Controller Board for micro FPV
F3 EVO V2.0 Flight Controller Board for micro FPV
F3 EVO V2.0 Flight Controller Board for micro FPV
F3 EVO V2.0 Flight Controller Board for micro FPV
₹1,679

(inc GST)

  • Stock: Out Of Stock
  • ₹16 FlyRobo Cashback.
  • SKU: FR-02-809
    5 or more ₹1,639
    15 or more ₹1,617

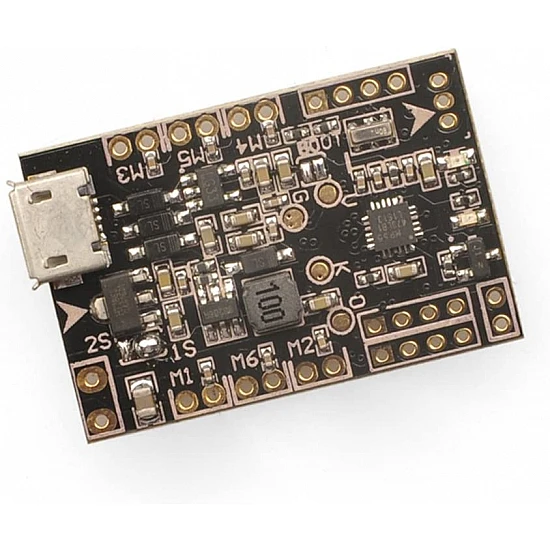

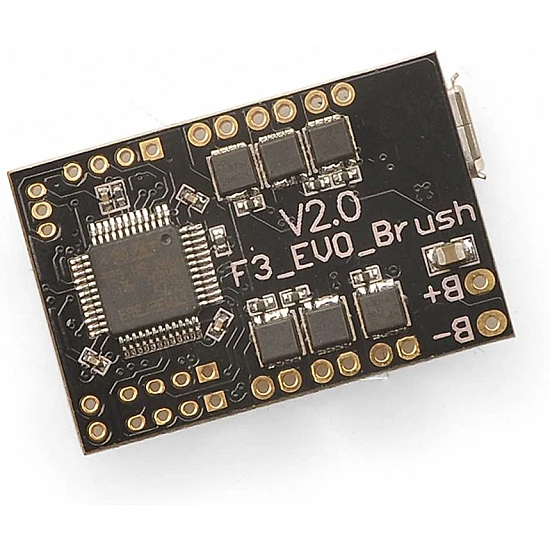

The F3 EVO Brushed Flight Controller gives you all the features in small size and designed for micro-size quads with brushed motors. STM32F303CCT6 + MPU6500 processors and advanced hardware platform F3 guarantee higher flight stability.

With large current NMOS transistors, the operation current can reach 10A or higher, can reach up to 500 mah constant output current using UART1 or UART2 output 5V can satisfy low power circuit as 25 MW FPV camera, support LED STRIP function.

it supports PPM, SBUS, DSM receiver input signals. Dedicated Open source Cleanflight software ensures that you are always updated.

Features:

  • The V2.0 supports 6 rotors
  • 32-bit brush flight controller based on SP Racing F3 EVO firmware
  • Compatible with almost all coreless motors, including the 1020 motor
  • Supports 1S and 2S power supply, with 2S power, the flying experience can be more wild.
  • STM32F303CCT6 + MPU6500, the F3 advanced hardware platform guarantees more stable flight
  • With a large-current NMOS transistor, the operating current reaches more than 10A.
  • Supports input signal of PPM, SBUS, DSM receiver
  • Has battery voltage detection and buzzer interface

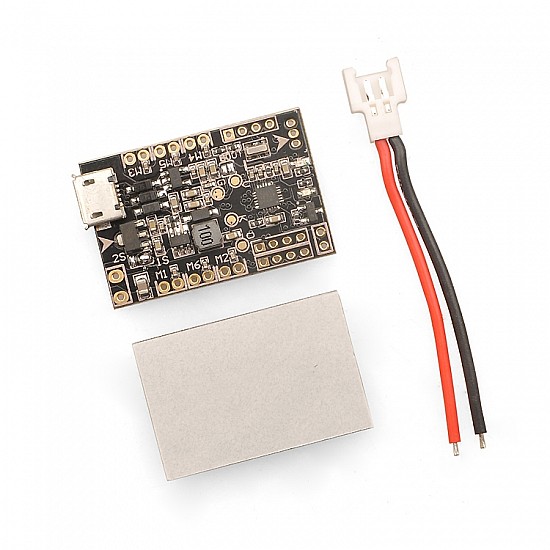

Package Include:

1 x F3 EVO V2.0 Flight Controller board

1 x Piece of Adhesive Tape.

1 x Connecting Cable.

Technical
Processor

STM32F303CCT6

Firmware

EVO firmware

Input Voltage

4.2V (1S), 8.4V (2S)

Sensors

6050 MCU

Thickness

1.2mm (PCB)

Length

2.2 cm

Width

3.25 cm
