Ethernet W5100 Shield Network Expansion Board w/ Micro SD Card Slot for Arduino

Ethernet W5100 Shield Network Expansion Board w/ Micro SD Card Slot for Arduino -  -
Ethernet W5100 Shield Network Expansion Board w/ Micro SD Card Slot for Arduino -  -
Ethernet W5100 Shield Network Expansion Board w/ Micro SD Card Slot for Arduino -  -
Ethernet W5100 Shield Network Expansion Board w/ Micro SD Card Slot for Arduino -  -
Ethernet W5100 Shield Network Expansion Board w/ Micro SD Card Slot for Arduino
₹499

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹5 FlyRobo Cashback.
  • SKU: FR-01-526
7 Day Return
Get 7 Day Replacement/Refund on this product
Free shipping
Get free shipping on this product. Buy above ₹ 999 and get free shipping.
COD Available
Get this product with Cash at the time of Delivery
Support
Get best after-sale support From our Technical team with different Tutorials

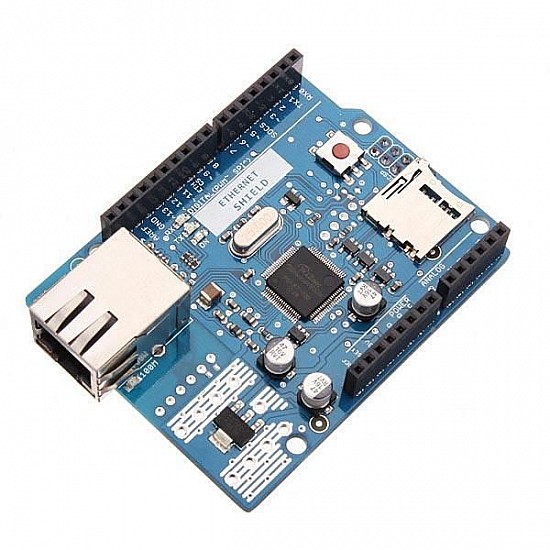

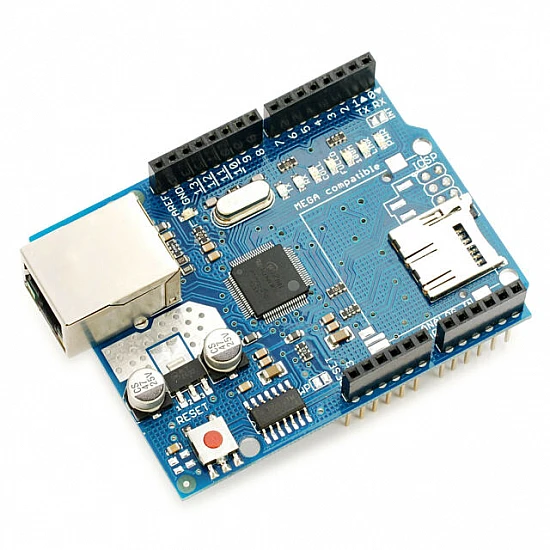

The Arduino Ethernet Shield allows an Arduino or Arduino compatible board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches that connect to the internet using the shield. The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top. The Arduino Ethernet Shield allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip providing a network (IP) stack capable of both TCP and UDP. The Arduino Ethernet Shield supports up to four simultaneous socket connections. Use the Ethernet library to write sketches that connect to the internet via a standard RJ45 Ethernet jack using the shield.

Although not used by most SD card libraries, A0 is connected to the SD slot's write-protect (WP) pin and A1 is connected to the card detect switch. Both are pulled high by 10k resistors on the Ethernet shield. These pins, therefore, cannot be used for analog input with the shield unless they are sent back or clipped off before inserting the shield into the Arduino. Additionally, if a user's circuit uses these pins for digital IO, the pullups may cause problems for existing circuitry. The Arduino Ethernet Shield connects your Arduino to the internet in mere minutes. Just plug this module onto your Arduino board, connect it to your network with an RJ45 cable (not included) and follow a few simple instructions to start controlling your world through the internet. As always with Arduino, every element of the platform – hardware, software, and documentation – is freely available and open-source. This means you can learn exactly how it's made and use its design as the starting point for your own circuits. Requires an Arduino board (not included) Operating voltage 5V (supplied from the Arduino Board) Ethernet Controller: W5100 with internal 16K buffer Connection speed: 10/100Mb Connection with Arduino on SPI port The Arduino Ethernet Shield allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip (datasheet). The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches that connect to the internet using the shield. The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top. The Ethernet Shield has a standard RJ-45 connection, with an integrated line transformer. There is an onboard micro-SD card slot, which can be used to store files for serving over the network. It is compatible with the Arduino Uno and Mega (using the Ethernet library). The onboard microSD card reader is accessible through the SD Library. When working with this library, SS is on Pin 4. The shield also includes a reset controller, to ensure that the W5100 Ethernet module is properly reset on power-up. Previous revisions of the shield were not compatible with the Mega and need to be manually reset after power-up.

Features :

  • Based on the W5100Based on the Wiznet W5100 allows an Arduino board to connect to the internet.
  • Stackable Design, can directly be supported by for Arduino official Ethernet Library.
  • Supports up to four simultaneous socket connections
  • It can be used to store files for serving over the network.
  • Compatible with the for Arduino Duemilanove (168 or 328), Uno as well as Mega (1280/2560).
  • It can be accessed using the Mini SD TF library.
  • The current shield has a Power over Ethernet (PoE) module designed to extract power from a conventional twisted-pair Category 5 Ethernet cable.
  • IEEE802.3af compliant
  • Low output ripple and noise (100mVpp)
  • Overload and short-circuit protection
  • 1500V isolation (input to output)

Package Includes:

1 x Ethernet W5100 Shield Network Expansion Board
