The WiFi module ESP-1 is manufactured by using a high-performance chip ESP8285. This small chip is encapsulated in an enhanced Tensilica’s L106 Diamond series 32-bit kernel CPU with an SRAM. Thus, ESP8285 has the complete function Wi-Fi function; it not only can be applied independently but can be used as a slaver working with other host CPUs.
When ESP8285 is applied as a slave, it can start from the onboard Flash. The built-in high-speed buffer is not only benefiting improve the system performance but optimizing the store system. In addition, ESP8285 can be used as a Wi-Fi adapter by SPI/SDIO or I2C/UART interface, when it is applied to other MCU designs.
- Ultra-small size
- Support serial to WiFi
- Wireless transparent transmission
- Long-distance transmission with ultra-low power
- Support outboard antenna
- Serial Transparent transmission
- Wireless location recognition
- WiFi probe
- Smart power plug/Smart LED light
- Mesh networks
- Wearable electronics
- Securit ID label
- Wireless location system beacon
- Sensor networks
- Industrial wireless control

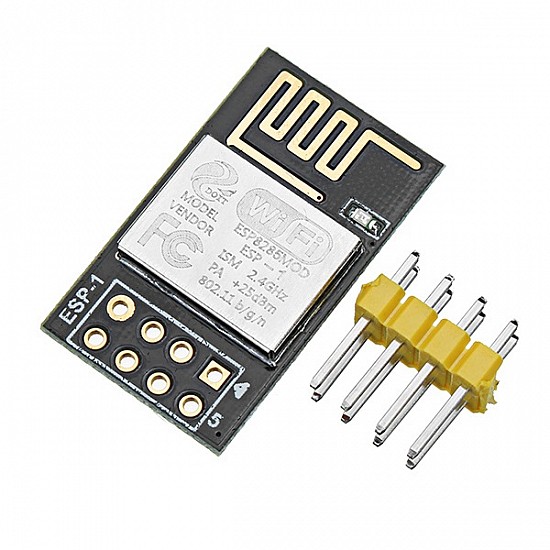

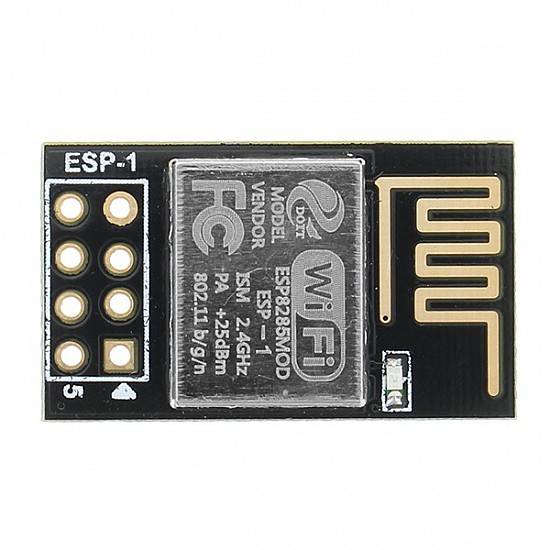

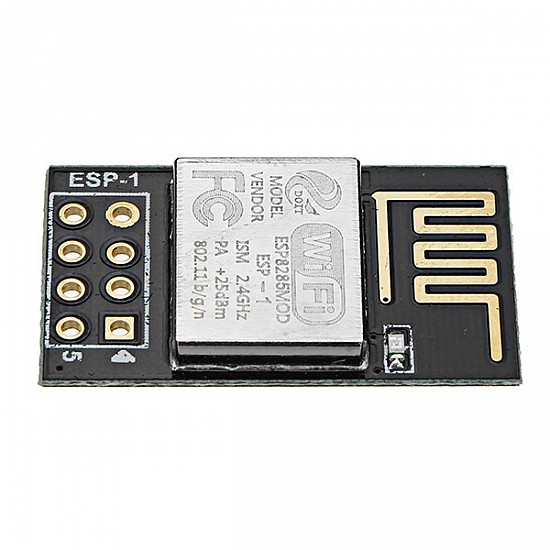

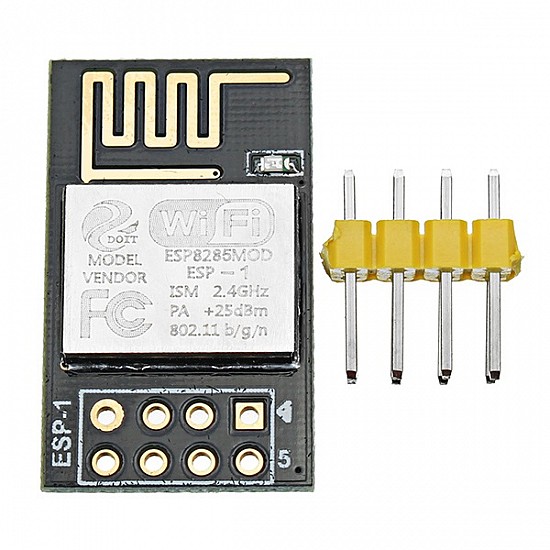

1 x ESP8285 ESP-1 Serial Wireless WiFi Transmission Module Compatible With ESP8266
HSPI, UART, I2C, I2S
|Operating Temperature Range||
-40 ℃ to 125 ℃
2.45 cm X 1.4 cm
three modes: Station, SoftAP, and SoftAP+STA
