ESP-WROOM-32 WIFI Bluetooth Networking Smart Component Development Board

ESP-WROOM-32 WIFI Bluetooth Networking Smart Component Development Board
ESP-WROOM-32 WIFI Bluetooth Networking Smart Component Development Board
ESP-WROOM-32 WIFI Bluetooth Networking Smart Component Development Board
ESP-WROOM-32 WIFI Bluetooth Networking Smart Component Development Board

ESP-WROOM-32 WIFI Bluetooth Networking Smart Component Development Board
₹499

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-227

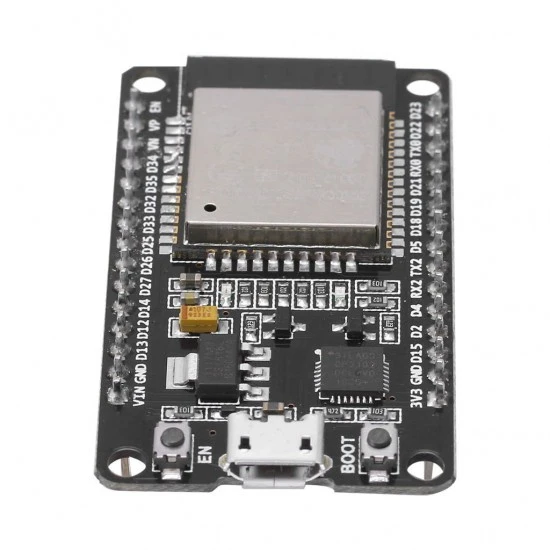

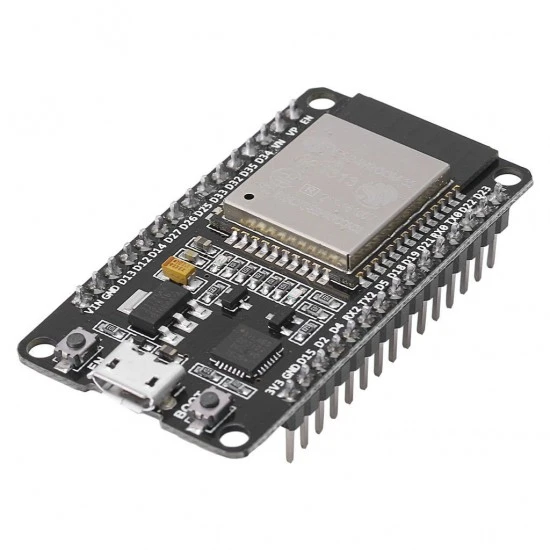

The ESP WROOM 32 MCU Module is shown. The ESP WROOM 32 is a powerful, all-purpose WiFi-BT-BLE MCU module that can handle a broad range of functions, including speech encoding, music streaming, and MP3 decoding, as well as low-power sensor networks.

The ESP32S chip, which is intended to be scalable and adaptable, lies at the heart of this module. The clock frequency of the two CPU cores, which can be adjusted from 80 MHz to 240 MHz, may each be separately controlled or powered.

The CPU can be turned off if the user prefers, and the low-power coprocessor can be used to continuously check the peripherals for changes or the crossing of thresholds. Capacitive touch sensors, Hall sensors, low-noise sensing amplifiers, an SD card interface, Ethernet, high-speed SDIO/SPI, UART, and I2C are just a few of the peripherals that are integrated within the ESP32S.

Features:-

  • 520 KB integrated SRAM.
  • Wi-Fi and Bluetooth hybrid.
  • high degree of fusion.
  • handling of extremely little power.
  • Flash 4 MB.
  • PCB antenna on the board
  • 30pin

Package Includes:-

1 X ESP-WROOM-32 WIFI Bluetooth Networking Smart Component Development Board

Technical
Processor

Two Low-Power Xtensa 32-bit LX6 Microprocessors

Clock Frequency

80-240 MHz

Data Rate

150Mbs

Flash Memory

4 MB

Number of Pins

30

Operating Current

80mA

Operating Voltage

3.0V – 3.6V

SRAM

520 KB

Weight

9 grams

Dimensions (LxWxH)

50mmx28mmx2mm
