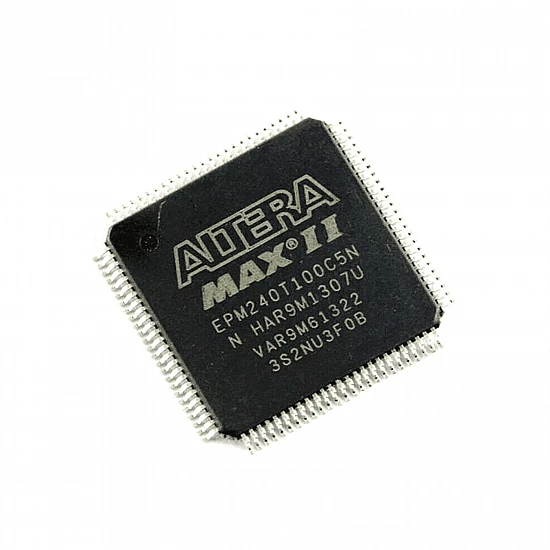

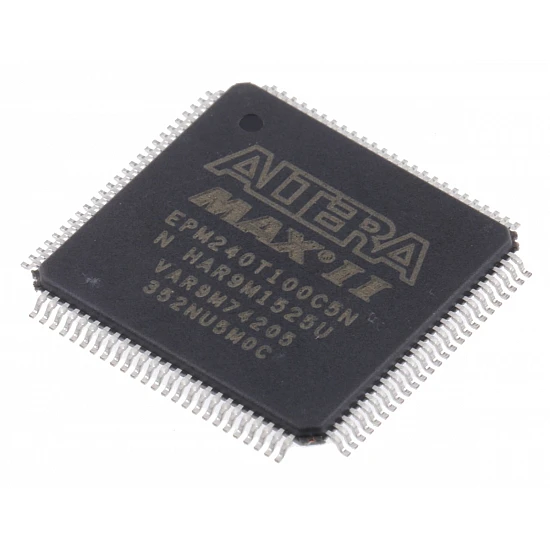

EPM240T100C5N MAX II CPLD 240 LEs 80 I/O TQFP-100

The EPM240T100C5N is a high-performance, low-power Complex Programmable Logic Device (CPLD) from the Intel (Altera) MAX II family. Designed to replace traditional, power-hungry CPLDs, the MAX II architecture utilizes a 0.18-μm flash process to deliver an 'instant-on' solution with the lowest power consumption in its class. With 240 Logic Elements and 80 available user I/O pins, it is a versatile engine for I/O expansion, bus bridging, and power-up sequencing. The device includes 8 Kbits of User Flash Memory (UFM) for non-volatile data storage and supports MultiVolt I/O standards, making it an excellent interface between components with differing voltage levels. Housed in a 100-pin TQFP package, the EPM240T100C5N is ideal for space-constrained industrial, consumer, and communication electronics requiring reliable, high-speed logic integration.

Features:

• Instant-On Non-Volatile Logic: Internal flash maintains configuration without external boot memory.
• Low Power Consumption: Optimized architecture reduces static power, extending battery life in portable designs.
• High I/O Count: Provides 80 user-programmable I/O pins in a compact 14x14mm TQFP package.
• In-System Programmability (ISP): Easily update firmware via standard JTAG interface while mounted on the board.
• User Flash Memory (UFM): 8 Kbits of integrated non-volatile storage for system parameters and IDs.
• MultiVolt I/O Support: Seamlessly interfaces with 1.5V, 1.8V, 2.5V, and 3.3V logic levels.

Package Includes:

1 x EPM240T100C5N SMD TQFP-100 chip CPLD MAX II ISP
