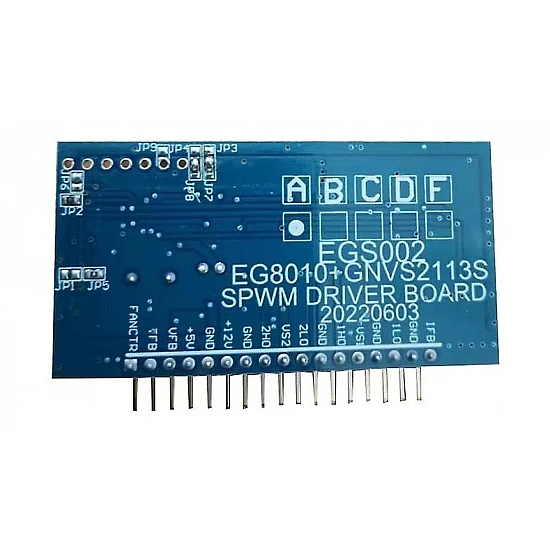

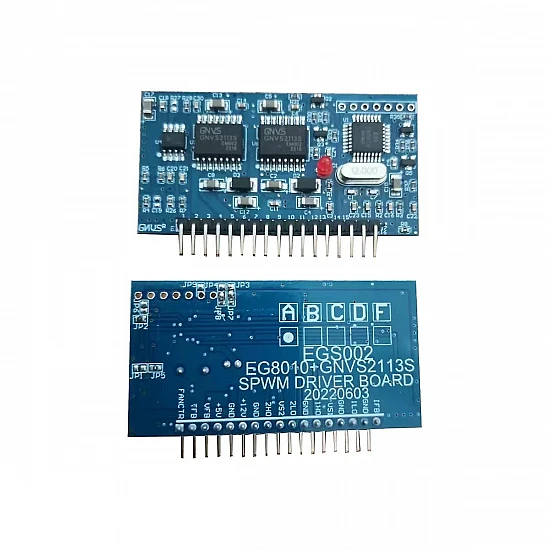

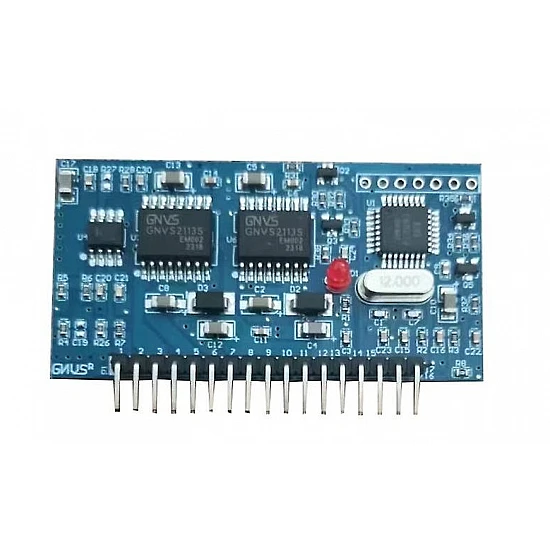

EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module

EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
-44 %
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module
₹499
₹889

(inc GST)

  • Stock: In Stock
  • ₹4 FlyRobo Cashback.
  • SKU: FR-01-291
    7 or more ₹464
    30 or more ₹445

EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module uses ASIC EG8010 as the control chip and IR2110S as the driver chip. EGS002 is an enhanced version of EGS001 that works with the original interfaces of EGS001. The driver board has fan control, LED warning indication, voltage, current, and temperature protection capabilities.

Additionally, the EGS002 incorporates cross-conduction prevention logic to improve its anti-interference capabilities as well as an LCD display interface for user convenience when using the chip's built-in display feature. EG8010 is a digital and fully functional pure sine wave inverter generator chip with dead zone control. It is used in DC-DC-AC two-stage power conversion architecture or DC-AC single-stage power frequency transformer boost conversion.


Features:

  • External 12MHz crystal oscillator, 23.4KHz PWM carrier
  • Real-time feedback on the temperature, voltage, and current
  • Protection from overvoltage, under-voltage, overcurrent, and overheating
  • It can set output voltage, frequency, and other parameters through serial communication.

Applications:

It has wide applications like Single phase pure sine wave inverters, Single-phase motor speed controllers, Single-phase inverters, Sine wave dimmers, Sine wave regulators, Sine wave generators, Digital generator systems, etc.

Package Includes:

1 x EGS002 EG8010 IR2110 DC-AC SPWM Pure Sine Wave Inverter Driver Module.

Technical
Operating Temperature Range

-25℃ to 85℃

Operating Voltage

5 VDC

PWM Frequency

23.4 KHz

Dimensions (LxWxH)

61x32x8mm
