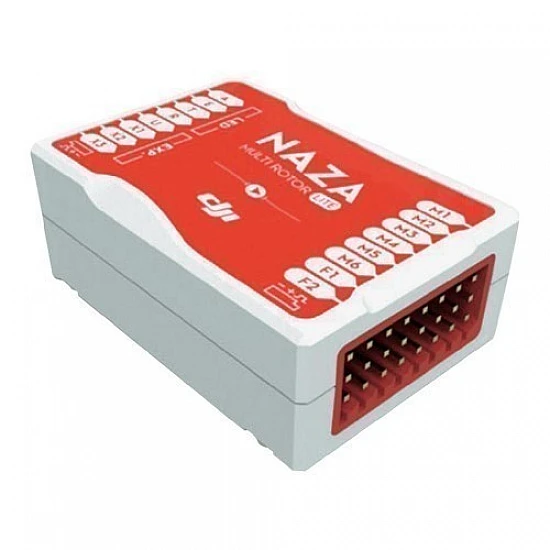

DJI NAZA-M Lite V1.1 with GPS Kit

Naza-M Lite is the high reliability and stabilized flight controller by DJI. which have various features that make flight controller better than other.

Features:

• All-in-One Design
• Multiple flight control mode/intelligent switching
• Support Futaba S-Bus and PPM receiver
• GPS Module Available/Accurate Position hold
• Intelligent Orientation Control (IOC)
• Failsafe mode
• Advanced attitude stabilize Algorithm
• Supported multi-rotor types
• Low voltage protection
• Motor Arm and Motor Dis-arm
• Built-in Gimbal stabilization function
• Remote adjustment

Supported Multi-rotor

• Quad-rotor I4, X4 / Hex-rotor I6, X6, IY6, Y6

Supported ESC output

• 400Hz refresh frequency

Recommended Transmitter

• PCM or 2.4GHz with minimum 4 channels

Working Voltage Range

• MC:4.8V~5.5V
• VU: 7.2V ~ 26.0 V (recommend 2S ~ 6S LiPo)

Power Consumption

• MAX1. 5W (0.3A@5V)
• Normal:0.6W (0.12A@5V)

Operating Temperature

• -10°C ~ 50°C

Assistant Software System Requirement

• Windows XP sp3 / Windows 7 / Windows 8

Hovering Accuracy(GPS Mode)

• Vertical:±0.8m
• Horizontal:±2.5m

Max Yaw Angular Velocity

• 200°/s

Max Tilt Angle

• 45°

Ascent / Descent

• ±6m/s

Weight (Approx)

• MC:25g
• VU:20g
• GPS:21.3g

Dimensions

• MC: 45.5mm x 31.5mm x 18.5mm
• VU: 32.2mm x 21.1mm x 7.7mm
• GPS & Compass: 46mm(diameter)x9mm

Built-In Functions

• Three Modes Autopilot
• Enhanced Fail-safe
• Low Voltage Protection
• S-Bus Receiver Support
• 2-axle Gimbal Support

Manual: Download

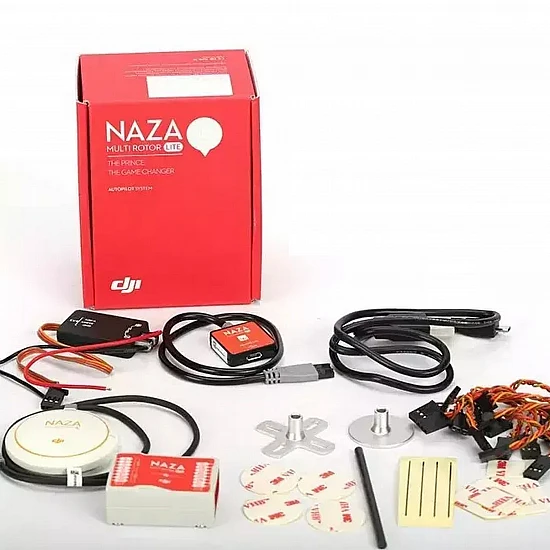

Package Content:

( Product May not come with Red Box as shown in the Photo, but all components will be in original Condition)

1 x DJI Naza Controller Unit

1 x DJI Remote LED module for Coding and Interfacing with PC

1 x DJI Power Module

1 x DJI USB to MicroUSB Cable (18 inches)

1 x GPS Module

1 x GPS Module Stand

8 x Servo Cables (5 Inches Each)

1 x Set of Precise Double-sided tape

support@dji.com contact to get support from DJI Official. FlyRobo Does not provide replacement/refund with this product
