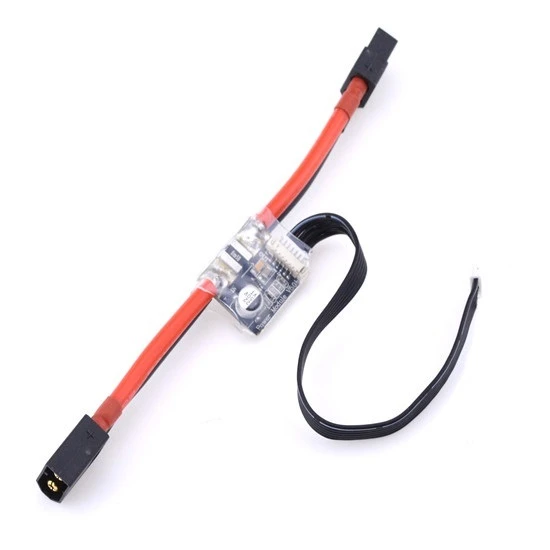

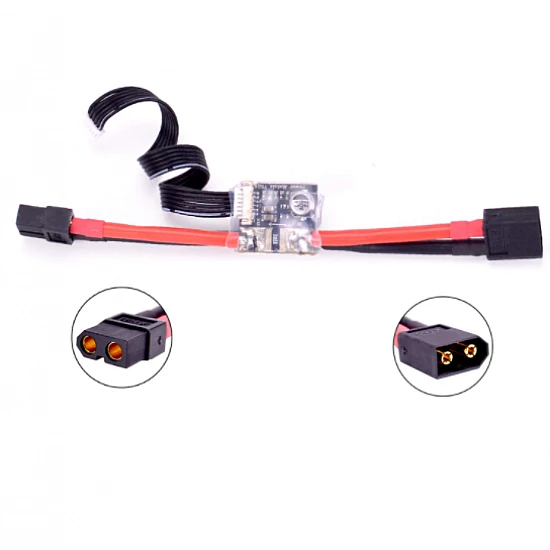

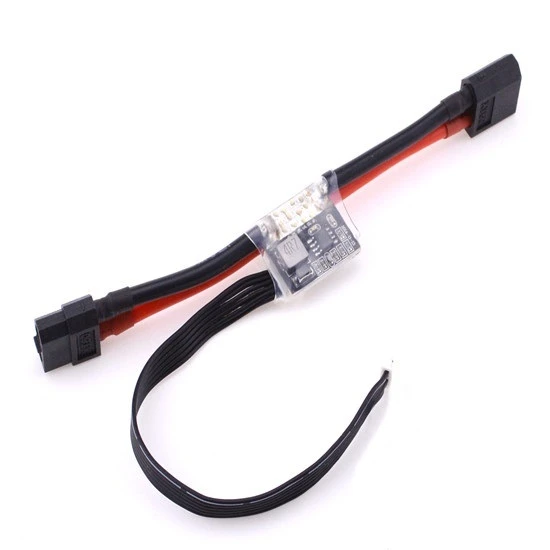

APM Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A

APM Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A
APM Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A
APM Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A
-23 % Out of Stock
(Restock: 30-07-2025 to 03-08-2025)
APM Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A
APM Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A
APM Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A
APM Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹539
₹698

(inc GST)

  • Stock: Out of Stock
    (Restock: 30-07-2025 to 03-08-2025)
  • ₹5 FlyRobo Cashback.
  • SKU: FR-02-590
    5 or more ₹517
    15 or more ₹504
FlyRobo FlyRobo
Add to Cart
Buy Now Notify When Available
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

APM Pixhawk Power Module is a way of providing your APM with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable.

The onboard switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery.

Features:

  • Switching regulator outputs 5.3V and 2.25A max.
  • It has a 6P cable that can be directly connected to APM/Pixhawk flight control.
  • It comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.

Package Includes:

1 x APM Pixhawk Power Module V6.0 Output BEC 3A XT60 Plug 28V 90A.

Technical
Color

Black and Red
Connector Type

XT60
Max Input Voltage

28 VDC
Maximum Current

90A
Operating Voltage

6 to 28 VDC

Output Voltage

5.3V
Power Module
Length

150 mm
