Ai-Thinker ESP32-A1S WiFi+BT Audio Development Board

Ai-Thinker ESP32-A1S WiFi+BT Audio Development Board
Ai-Thinker ESP32-A1S WiFi+BT Audio Development Board
Ai-Thinker ESP32-A1S WiFi+BT Audio Development Board
Ai-Thinker ESP32-A1S WiFi+BT Audio Development Board
Ai-Thinker ESP32-A1S WiFi+BT Audio Development Board
Ai-Thinker ESP32-A1S WiFi+BT Audio Development Board
Ai-Thinker ESP32-A1S WiFi+BT Audio Development Board
₹445

(inc GST)

  • Stock: In Stock
  • SKU: FR-01-451
7 Day Return
Get 7 Day Replacement/Refund on this product
Free shipping
Get free shipping on this product. Buy above ₹ 999 and get free shipping.
COD Available
Get this product with Cash at the time of Delivery
Support
Get best after-sale support From our Technical team with different Tutorials

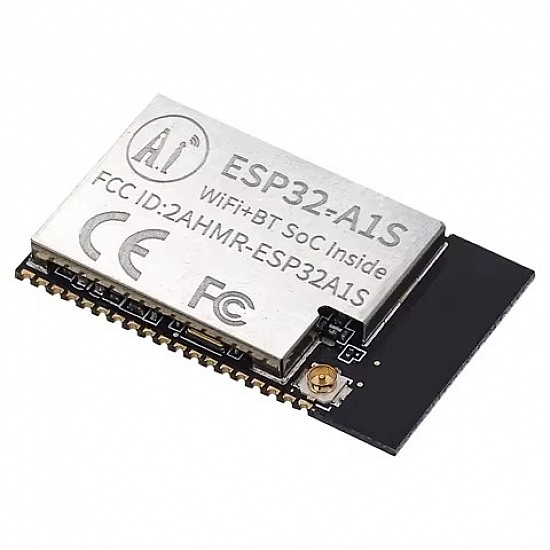

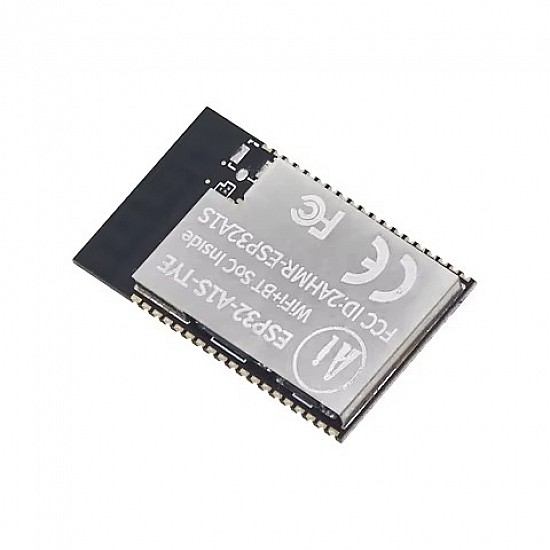

ESP32- A1S is an ultra-small, powerful volume multifunction audio module, the main chip uses a low-power dual-core 32-bit CPU, the main frequency can up to 240MHZ, and the operating capacity up to 600 DMIPS. It has a built-in Codec AC101 audio decoding chip, which supports local music playback.

It can be widely used in various IoT applications, suitable for home smart devices, smart Audio, story machine solutions, etc., are the ideal solution for IoT applications.

Ai-Thinker ESP32-A1S WiFi+BT Audio Development Boards internal circuit is highly integrated, supports a variety of peripherals, can support secondary development, and quickly realize product differentiation. ESP32-A1S adopts an SMD package to realize the rapid production of products and provide customers with a high-reliability connection mode. It is especially suitable for modern, large-scale, low-cost production methods, and is convenient for various IoT hardware terminal applications.

Features:

  • Low power 32-bit CPU, can also serve the application processor
  • Supports UART/SPI/I2C/PWM/ADC/DAC
  • Support for firmware upgrade (FOTA)

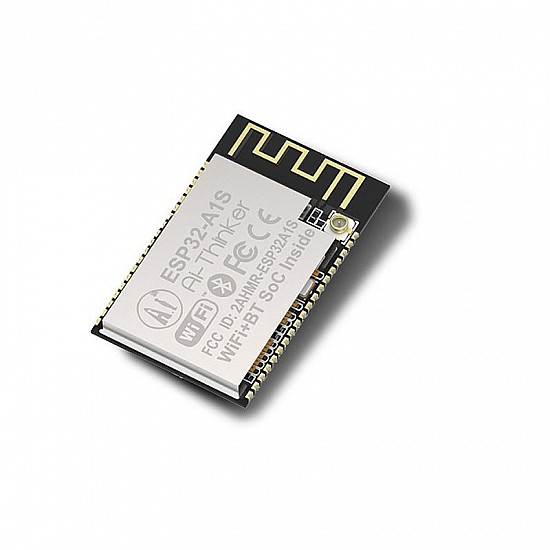

  • Antenna supports on-board antenna or IPEX block output
  • smallest 802.11b/g/n WiFi BT SoC Module
  • Supports a variety of mainstream compression and lossless audio formats, including M4A, AAC, FLAC, OGG, OPUS, MP3, WAV, etc.
  • Supports audio input methods such as MIC and Line-in.

Package Includes:

1 x Ai-Thinker ESP32-A1S WiFi+BT Audio Development Board

Write a review

Note: HTML is not translated!
Bad Good
Technical
Model

ESP32-A1S

Antenna Type

IPEX and PCB

Audio Fomat

MP3, sWAV, sM4, sAAC, sFLAC, sOGG, sOPUS

Audio Input

Support LINE-IN and 2-way MIC input

Audio Output

Support 1 channel headphone output and 1 channel left and right speaker output

Bluetooth Version

4.2

Current Dissipation

350mA

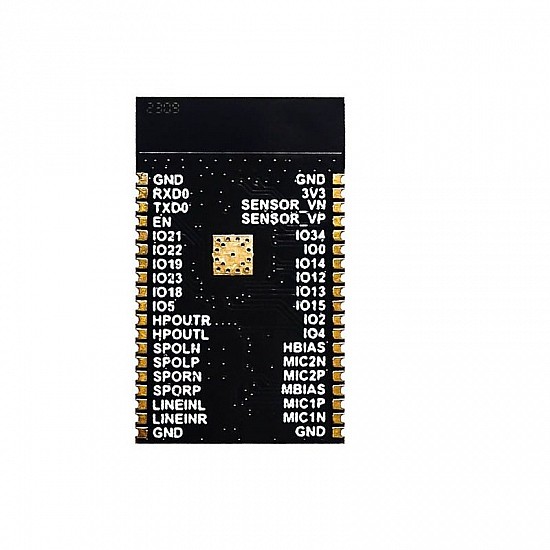

Custom IO Port

14

Input Supply Voltage

3.3VDC

Operating Temperature Range

-20°C to 85°C

Package/Case

SMD-38

Security

WPA/WPA2/WPA2-Enterprise/WPS

SPI Flash

Default 32Mbit

UART Baudrate

Default 115200 bps

WIFI

802.11 b/g/n/, Support DLNA protocol

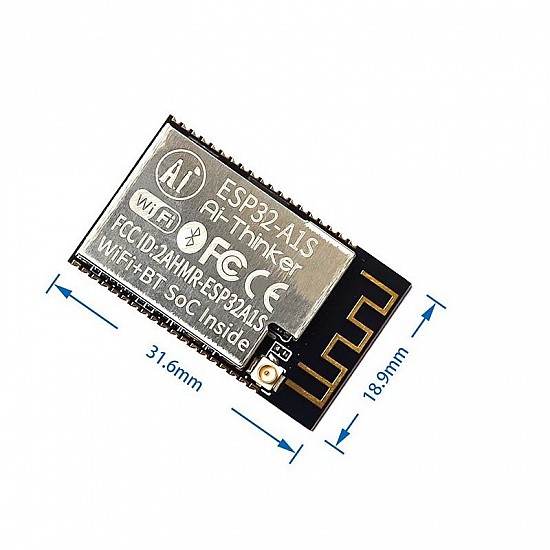

Dimensions (LxWxH)

31.6x18.9x3 mm
