ADS1110 16 Bit Analog Digital Convertor for Thermocouple Temperature Detection

ADS1110 16 Bit Analog Digital Convertor for Thermocouple Temperature Detection
ADS1110 16 Bit Analog Digital Convertor for Thermocouple Temperature Detection
-17 %
ADS1110 16 Bit Analog Digital Convertor for Thermocouple Temperature Detection
ADS1110 16 Bit Analog Digital Convertor for Thermocouple Temperature Detection
ADS1110 16 Bit Analog Digital Convertor for Thermocouple Temperature Detection
₹407
₹489

(inc GST)

  • Stock: In Stock
  • ₹4 FlyRobo Cashback.
  • SKU: FR-01-164
    7 or more ₹388
    30 or more ₹378

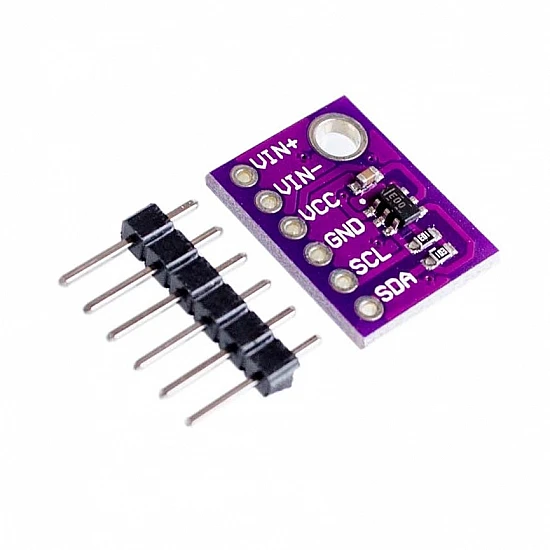

ADS1110 is a precision, continuously self−calibrating Analog-to-Digital (A/D) converter with differential inputs and up to 16 bits of resolution. The ADS1110 uses an I2C-compatible serial interface and operates from a single power supply ranging from 2.7V to 5.5V.

Features:

  • Chipset: ADS1110, 16 Bit A/D Converter
  • Onboard PGA
  • Onboard Oscillator
  • Single-cycle conversion
  • 12C interface
  • Low Current Consumption

Applications:

  • Portable Instrumentation
  • Industrial Process Control
  • Smart Transmitters
  • Consumer Goods
  • Factory Automation
  • Temperature Measurement

Package Includes:

1 x ADS1110 16 Bit Analog Digital Convertor for Thermocouple Temperature Detection

Technical
Accuracy

2.048V ±0.05%

Chipset

ADS1110, 16 Bit A/D Converter

Logic Voltage

3.3V or 5V

Power

2.7 - 5.5V

PROGRAMMABLE DATA RATE

15SPS to 240SPS

Length

16 mm

Height

2 mm

Width

12 mm
