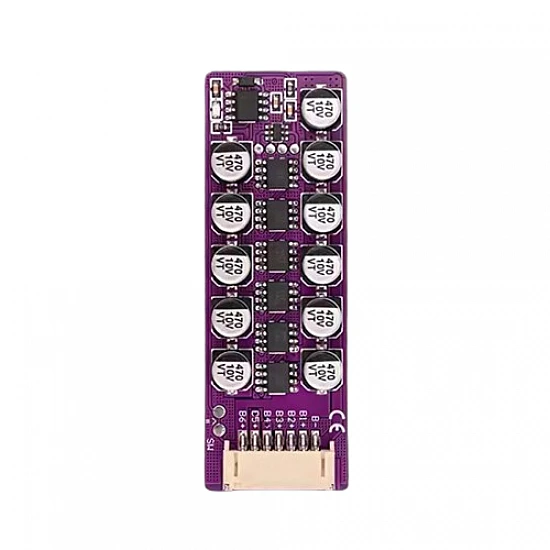

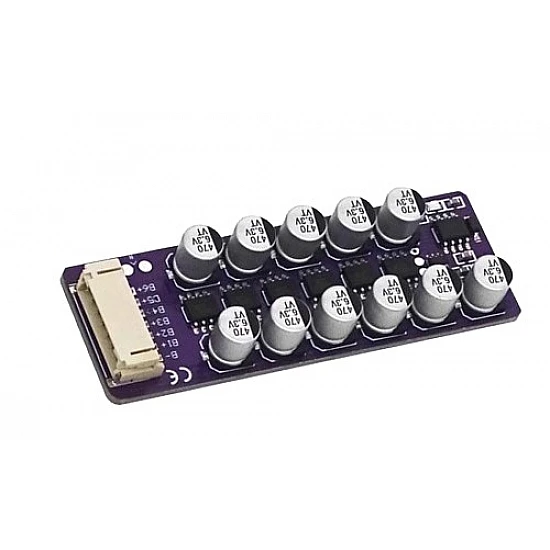

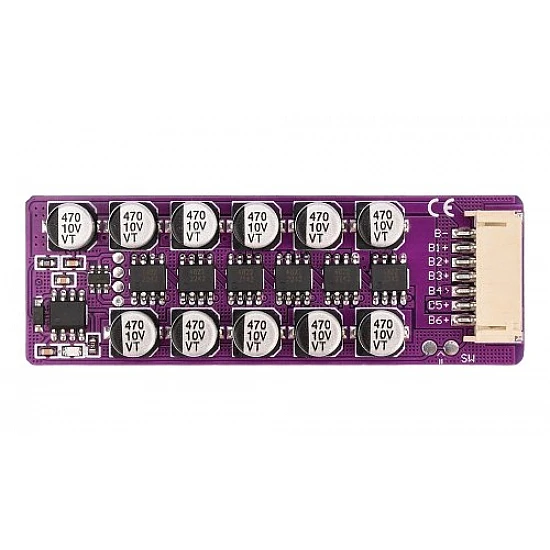

6S 5.5A High-Current Capacitive Active Balancer for Lithium Battery Packs

This 6S High-Current Active Balancing Plate is an essential upgrade for any 6-series lithium battery pack, providing high-precision energy transfer with minimal heat generation. Utilizing advanced capacitive 'shuttle' technology, this board actively moves energy from cells with higher voltage to those with lower voltage, rather than simply burning off the excess as heat. It supports a massive balancing current of up to 5.5A, ensuring that even large-capacity packs stay perfectly equalized within a 5mV margin. This process significantly extends battery life and improves overall pack safety. Designed for versatility, it is compatible with NCM/LFP chemistries. The board includes integrated under-voltage protection to prevent battery damage and is built with low-resistance MOSFETs for maximum efficiency.

Key Features:

• Active Energy Transfer: Efficiently equalizes cells without wasting energy as heat.
• High Balancing Current: Up to 5.5A transfer rate for fast equalization of large packs.
• Extreme Precision: Maintains voltage balance accuracy within 5mV for optimal pack health.
• Universal Compatibility: Works with NCM/LFP battery types.
• Low Heat Generation: Capacitive architecture ensures the board remains cool during high-current operation.
• Safety Protection: Automatically enters sleep mode when cell voltage is below 2.5V.

Package Includes:

1 x 6S 5.5A High-Current Capacitive Active Balancer for Lithium Battery Packs
