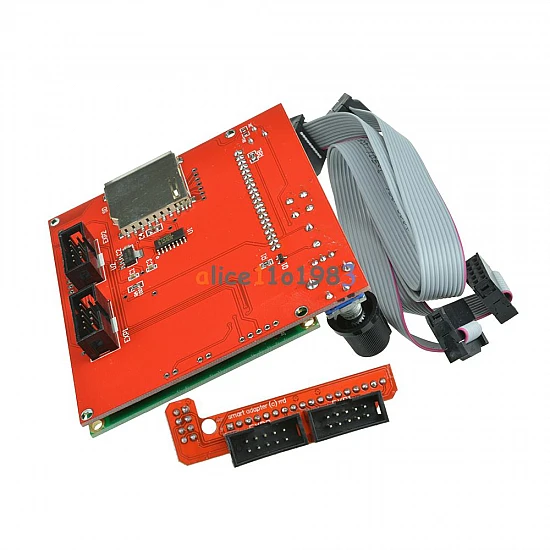

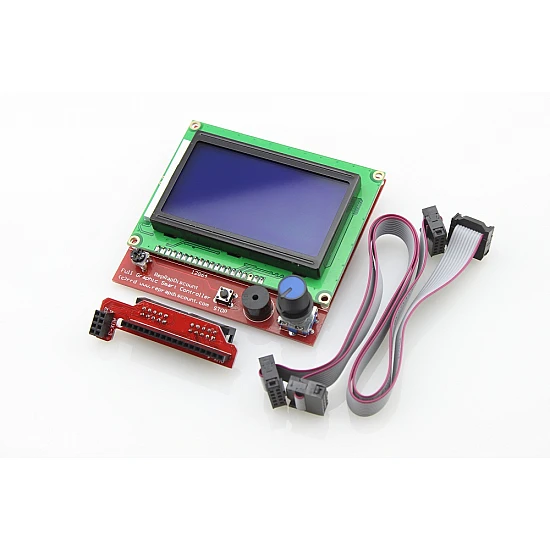

The 3D printer 128×64 Smart LCD controller for ramps 1.4 contains an SD-Card reader, a rotary encoder and a 128×64 LCD display. You can easily connect it to your RAMPS board using the “smart adapter”. After connecting this panel to your Ramps you don’t need your pc any more, the Smart Controller supplies power for your SD card. Furthermore, all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card. Compares to the 2004 Smart LCD Controller With Adapter, this 128×64 screen can display much more information, which would help you run the 3D printer without a computer.
- RAMPS 1.4 LCD12864 intelligent controller
- LED background light control circuit
- LED background light control circuit, a small function of intelligent controller, With pin short time to decide on all LED turn or steering 30 seconds
- You can turn on the light time to do the long or short form of the adjustment TRIMM R4100K from 10 seconds to 2 minutes
1 x 3D printer 128×64 Smart LCD controller for ramps 1.4
