24V 10A SMPS Industrial Power Supply

24V 10A SMPS Industrial Power Supply - Power Supply - 3D Printer - 3D Printer and Accessories
Out Of Stock
24V 10A SMPS Industrial Power Supply
₹1,149

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹12 FlyRobo Cashback.
  • SKU: FR-06-401

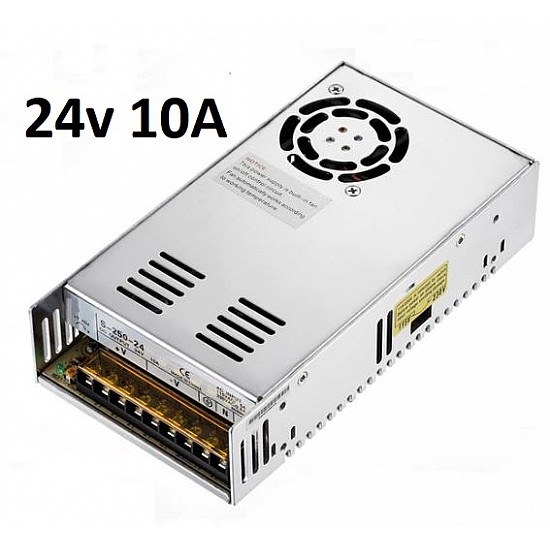

24V 10A Industrial power supply with Aluminium casing, High quality. Best suitable for CNC Machines and 3D printers. From Flyrobo.in, You will get best quality and most efficient industrial SMPS ( Industrial power supply).

Features:

  • High efficiency, long life, and high reliability
  • Low dc ripple, high efficiency
  • low operation temperature & long performance life
  • Excellent insulation property, high dielectric strength
  • 100% full-load burning test
  • Dimension: 180*110*50 (Approx.)

Input:

  • AC input voltage range(V):AC 110V/220V±15% (switch replacement)
  • Input current(A):6.5A /115V,4A /230V
  • Frequency (Hz):50/60Hz
  • Efficiency:87% Typ(230VAC Full Load)
  • Inrush current(A):25A/115V 50A/230V cold start
  • Leakage current(mA):<3.5mA/240VAC

Output:

  • Output Voltage(V):+24VDC
  • Voltage Regulation:±10%
  • Output Current(A):10A
  • Current Range (A):0-10A
  • Rated Power(W) :240W
  • Start time, hold-up time(ms):Ton≤200ms,Td≥30ms @230Vac Full Load
  • Rise time(ms):Typ:100ms @230Vac Full Load
  • Ripple/Noise(mVp-p):150mVp-p

Protection:

  • Over voltage Protection: >115%-135% Rated output voltage
  • Over load Protection: >105%-150% Auto recovery
  • Short circuit Protection: Latched

Package Content:

1 x 24V 10A SMPS Industrial Power Supply
