₹2,799

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹27 FlyRobo Cashback.
  • SKU: FR-01-203

1800W 40A DC to DC Adjustable Constant Voltage and Current Power Supply Module with high power and stable output converts 10-60VDC to 12-97V DC. It ensures high conversion efficiency, up to 97%.

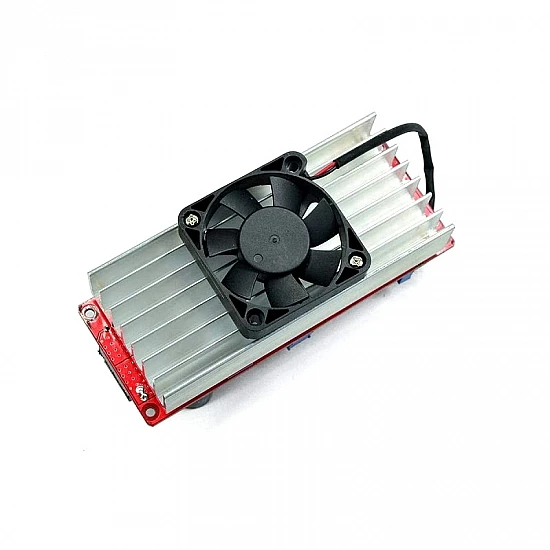

It is designed with a smart temperature control fan, which will automatically work when the temperature reaches about 60℃, and stop when the temperature drops below 60℃.

Features:

  • The main power tube insulation board is made of high-grade alumina, and the thermal conductivity is 10 times that of ordinary insulation mats.
  • With airfoil-type heat dissipation, the heat dissipation effect is very good, and the output power is even greater (the power of the 48V input and fan can reach around 1800W).
  • The 100V 210A TO-247 large package power tube has a large power margin and good dynamic response.
  • Double large-size Ferro-silica-aluminum magnetic rings, using four 1.2-pure copper enameled wires, with low heat generation and high efficiency.

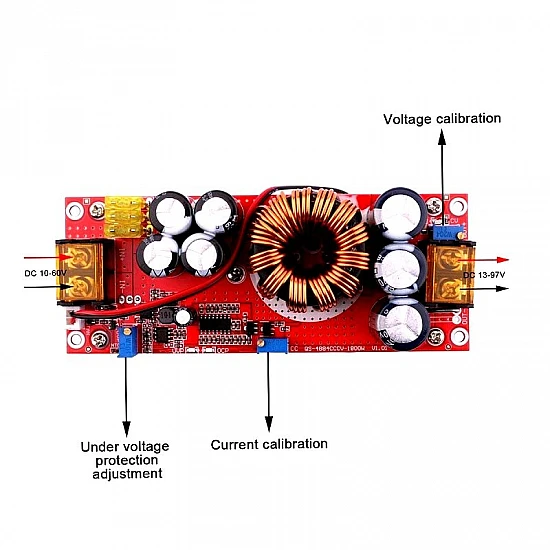

  • Brand 3296W multi-turn potentiometer, high adjustment accuracy, small drift.
  • Undervoltage protection is adjustable, which can effectively protect a variety of batteries and can also be used for solar cells.
  • With the constant current function, it can be used for boosting the battery car, charging the battery, and so on.
  • The input of 3 20A fuses in parallel can protect the risk of accidental short circuits in the output.
  • Three indicator lights: Undervoltage, overcurrent, power indication, working status at a glance.
  • The input and output are all high-frequency capacitors, low output ripple, low heat generation, and long life.
  • The MLCC ceramic capacitor is added to the input and output, and the output ripple is significantly reduced, which is about 100mV at 48V to 72V 4A.
  • Applications: It is widely used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power supply, DIY adjustable CV CC power supply, solar power charging, and various battery charging.

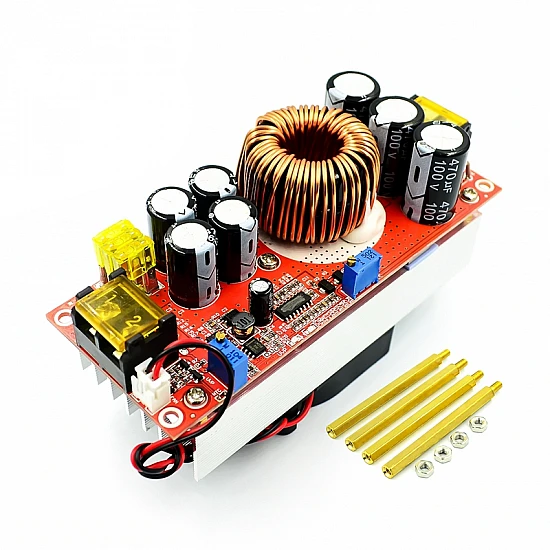

Package Includes:

1 x 1800W 40A DC to DC Adjustable Constant Voltage and Current Power Supply Module

4 x Alloy standoff with Nuts.

Technical
Conversion Efficiency

up to 93 to 897%

Input Voltage

8 - 60V

Operating Frequency

150KHz

Operating Temperature Range

-40 to + 85

Output Current

35A max

Output Voltage

12 - 97V

Overcurrent Protection

Yes

Power

1800W

Quiescent current

15mA

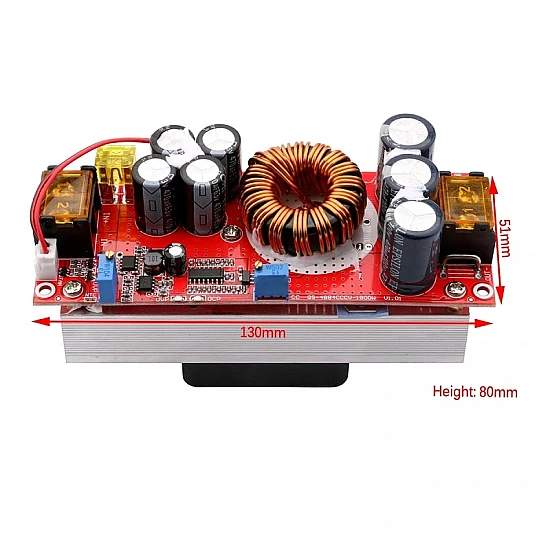

Length

130 mm

Height

80 mm

Width

52 mm
