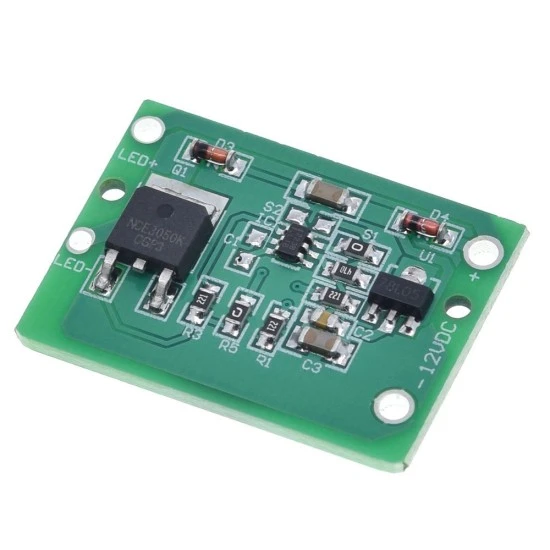

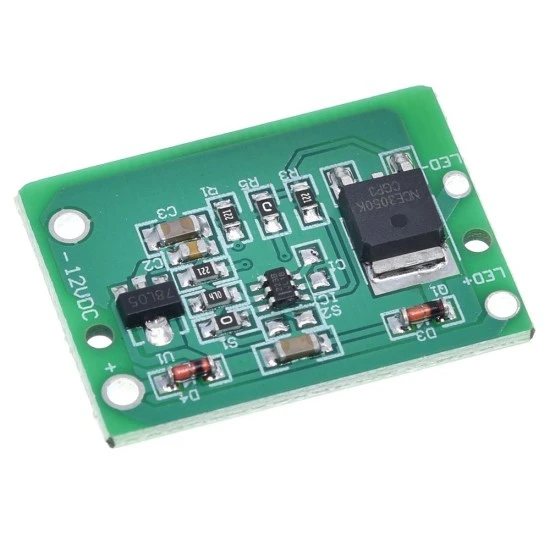

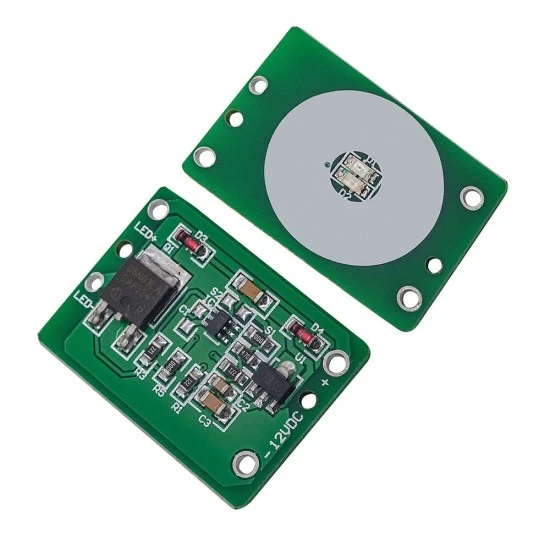

12V TTP223 Capacitive Touch Switch Module with Jog Latch

The 12V TTP223 Capacitive Touch Switch Module is a compact, highly responsive touch-sensitive switch designed for direct integration into 12V DC systems. Powered by the reliable TTP223 touch sensor IC, this module features an onboard power transistor capable of switching 12V loads (such as LED strips, small DC motors, and relays) directly without requiring an external microcontroller. It serves as a modern, wear-free replacement for traditional mechanical push buttons.

This versatile module supports both Jog (Momentary) and Latch (Self-locking) modes, configurable via onboard solder jumpers. It is widely used in smart home automation, interactive exhibits, custom LED lighting control, and DIY electronics projects. Its high sensitivity allows it to detect touch through non-metallic surfaces like glass, plastic, acrylic, and wood, making it perfect for concealed or waterproof switch designs.

Features:

• Highly Responsive Touch Sensor: Powered by the industry-standard TTP223 capacitive touch IC for stable and rapid touch detection.
• Direct 12V Load Switching: Features an onboard power transistor to drive 12V LED strips, relays, or DC loads directly.
• Configurable Working Modes: Easily switch between Jog (Momentary) and Latch (Self-locking) modes using the onboard solder pads.

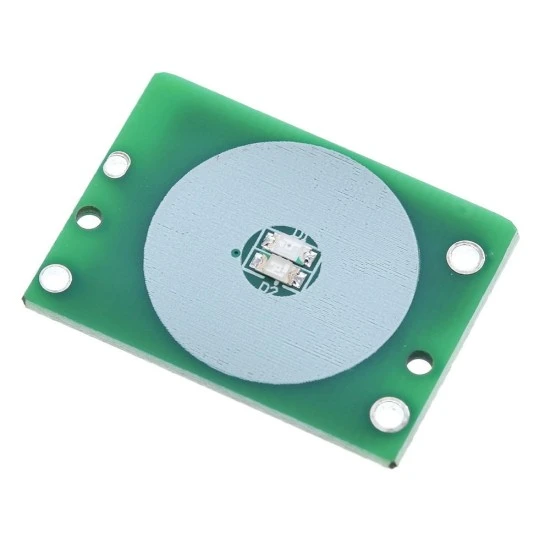

• Integrated Status Indicator: Onboard dual-color LED provides clear visual feedback for power and switch activation status.
• Concealed Mounting Capability: Can detect touch through non-metallic barriers such as acrylic, glass, wood, and plastic.
• Ultra-Compact Design: Lightweight and small form factor allows seamless integration into tight spaces and custom enclosures.

Package Includes:

1 x 12V TTP223 Capacitive Touch Switch Module
