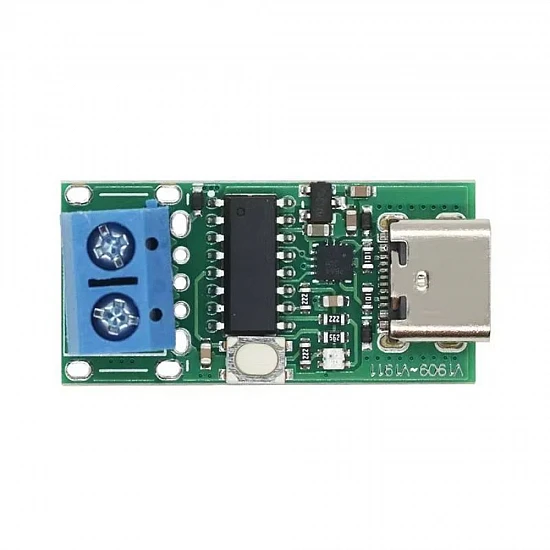

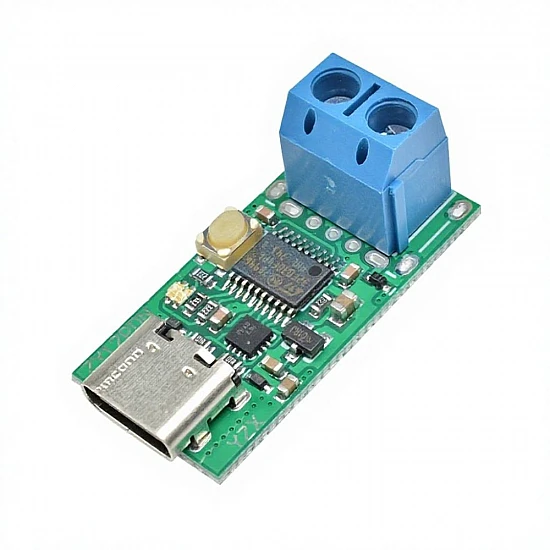

ZY12PDN USB-C PD 2.0/3.0 to DC Trigger Fast Charge Module

The ZY12PDN USB-C PD Trigger Module is a highly efficient decoy board designed to extract specific DC voltages from USB Power Delivery (PD) chargers and power banks. By simulating a PD-compatible device, this module handshakes with your Type-C power source to output desired voltages, making it an excellent solution for powering traditional laptops, routers, and custom DIY electronics directly from a modern USB-C adapter.

Equipped with an onboard push button, users can easily poll and select the required voltage output (typically 5V, 9V, 12V, 15V, or 20V depending on the source capabilities). The module features a robust 2-pin screw terminal for quick and secure bare-wire connections to your circuit diagram or barrel jack adapters. It is widely used by engineers and makers for upgrading legacy devices to USB-C, building portable power solutions, and integrating fast-charge capabilities into custom IoT projects.

Features:

• Protocol Compatibility: Fully supports USB Power Delivery (PD) 2.0 and 3.0 standards for versatile fast-charging access.
• Voltage Polling: Built-in tactile button allows for easy cycling and selection of negotiated output voltages up to 20V.
• High Power Delivery: Capable of passing high currents required for laptop charging and high-draw DC components.

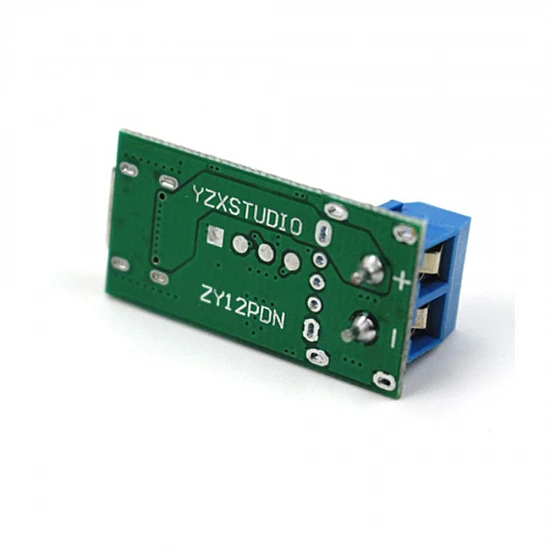

• Easy Interfacing: Features a standard USB Type-C input and a secure blue screw terminal block for straightforward DC output wiring.

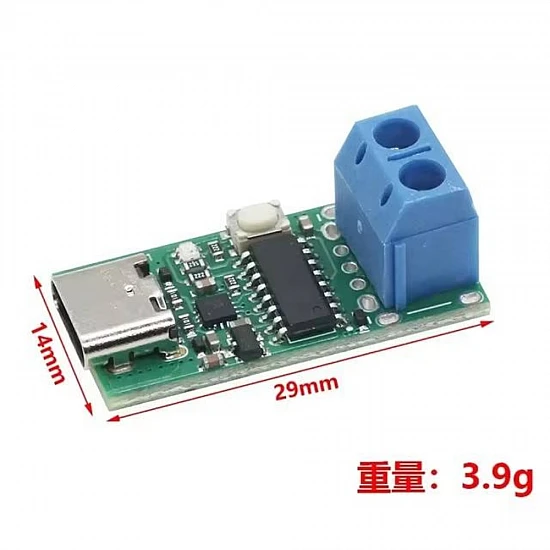

• Compact Form Factor: The miniature PCB design allows for seamless integration into enclosures, shrunk tubes, or existing device shells.

Package Includes:

1 x ZY12PDN USB-C PD 2.0/3.0 to DC Trigger Module with Screw Terminal
