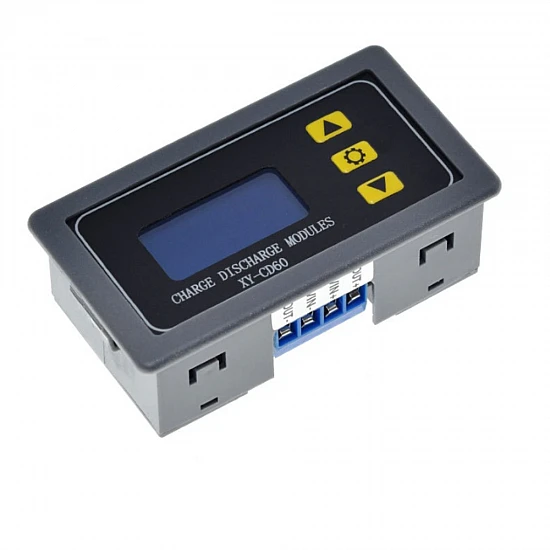

XY-CD60 Battery Charge Discharge Controller Module 6-60V

The XY-CD60 Battery Charge Discharge Controller Module is an intelligent, dual-mode voltage protection module designed to safeguard your batteries from overcharging and over-discharging. Operating over a wide voltage range of 6V to 60V DC, this module is highly compatible with various battery chemistries, including Lead-Acid, Lithium-Ion, and LiFePO4. It features a clear LCD display that shows real-time voltage, battery percentage, and operating time, making it an essential component for reliable power management systems.

Equipped with a robust protective case, the XY-CD60 offers two primary modes: Charging Mode (UP) and Discharging Mode (dn). Users can easily configure upper and lower voltage limits using the onboard tactile buttons. When the battery voltage reaches the set thresholds, the module triggers its integrated relay to connect or disconnect the load or charger. This makes it perfect for solar power systems, DIY battery charging stations, UPS backups, and automated battery testing setups.

Features:

• Dual-Mode Operation: Supports both charging control mode and discharging protection mode.
• Wide Voltage Range: Compatible with any battery bank from 6V to 60V DC.

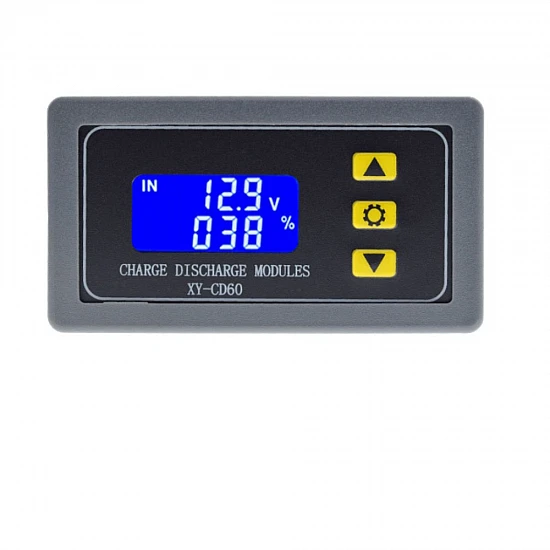

• Real-Time Monitoring: High-definition LCD screen displays voltage, percentage, and time simultaneously.
• Voltage Protection: Precise undervoltage and overvoltage protection to extend battery life.
• Time Control Function: Allows users to set specific charging or discharging durations.
• Serial Communication: Features UART interface for remote monitoring and parameter configuration.
• Protective Enclosure: Comes with a sleek, panel-mountable plastic case for easy integration.

Package Includes:

1 x XY-CD60 Battery Charge Discharge Controller Module with Case
