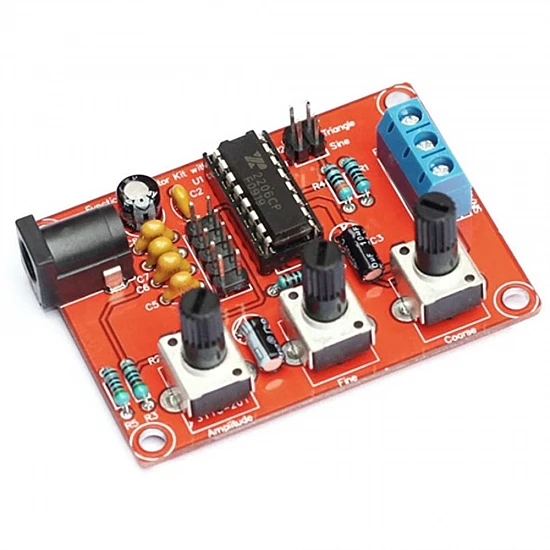

XR2206 High-Precision Function Signal Generator Soldered with Case

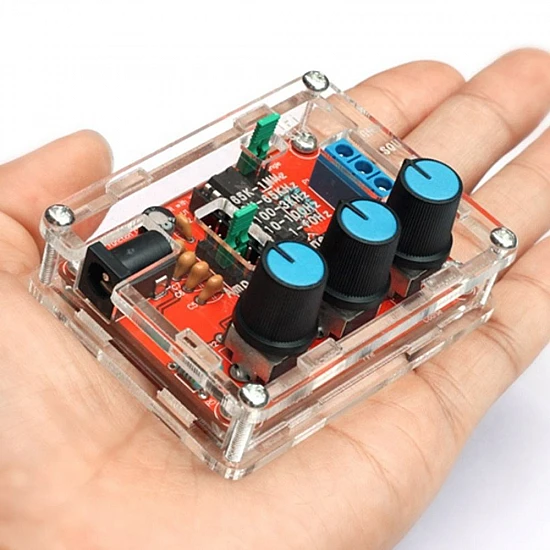

The XR2206 High-Precision Function Signal Generator is a versatile and reliable module designed to produce high-quality sine, triangle, and square waveforms. Fully assembled and housed in a durable, transparent acrylic case, this compact unit serves as an excellent signal source for electronic testing, circuit troubleshooting, and educational demonstrations. It offers an adjustable frequency range from 1Hz up to 1MHz, making it an indispensable tool for both hobbyists and professional engineers.

Ideal for oscilloscope calibration, audio amplifier testing, and verifying sensor logic, this signal generator easily integrates into any test bench setup. It features three intuitive rotary knobs for fine-tuning frequency and amplitude, along with onboard jumpers for selecting the desired frequency band. With a standard DC barrel jack for power (9V to 12V DC) and a robust screw terminal block for signal output, interfacing with your circuits is quick and secure.

Features:

• Versatile Output: Capable of generating precise sine, triangle, and square waves for various testing scenarios.
• Wide Frequency Range: Adjustable frequency output from 1Hz up to 1MHz.

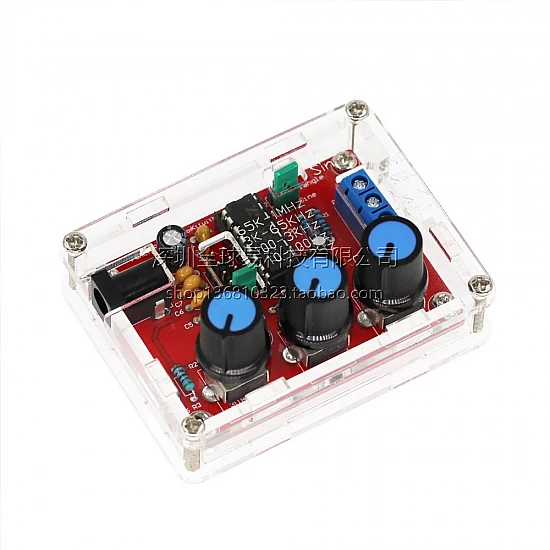

• Protective Enclosure: Comes fully welded and housed in a clear acrylic case to protect the PCB from short circuits and dust.
• Easy Adjustments: Features onboard potentiometers for precise control over amplitude and frequency tuning.
• Simple Power Connection: Utilizes a standard 5.5mm DC barrel jack, compatible with common 9V-12V power supplies.

Package Includes:

1 x XR2206 High-Precision Function Signal Generator Soldered with Acrylic Case
