ST-LINK V2 in-circuit debugger and programmer for STM8 and STM32

ST-LINK V2 in-circuit debugger and programmer for STM8 and STM32
ST-LINK V2 in-circuit debugger and programmer for STM8 and STM32
ST-LINK V2 in-circuit debugger and programmer for STM8 and STM32
-62 % Out Of Stock
ST-LINK V2 in-circuit debugger and programmer for STM8 and STM32
ST-LINK V2 in-circuit debugger and programmer for STM8 and STM32
ST-LINK V2 in-circuit debugger and programmer for STM8 and STM32
ST-LINK V2 in-circuit debugger and programmer for STM8 and STM32
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹577
₹1,499

(inc GST)

  • Stock: Out Of Stock
  • ₹5 FlyRobo Cashback.
  • SKU: FR-07-520
    5 or more ₹564
    15 or more ₹557
FlyRobo FlyRobo
Add to Cart
Buy Now Notify When Available
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

Much similar in architecture for debugging, the ST-LINK/V2 and the ST-LINK/V2-ISOL share the same features like digital isolation between the PC and the target application board which allows to withstands voltages of up to 1000 Vrms.

Specifically, the debugger incorporates the use of USB full-speed interface to communicate with the ST Visual Develop (STVD) or ST Visual Program (STVP) software for STM8 application, and use of the USB full-speed interface to communicate with Atollic®, IAR™, Keil®or TASKING integrated development environments for STM32 applications.

Features :

  • 1.65V to 5.5V application voltage supported on SWIM interface
  • 5V power supplied by a USB connector
  • USB 2.0 full speed compatible interface
  • 1.65V to 3.6V application voltage supported on the JTAG/SWD interface and 5V tolerant inputs
  • SWIM low speed and high-speed modes supported
  • USB standard A to mini B cable
  • Status LED which blinks during communication with the PC
  • Direct firmware update feature supported

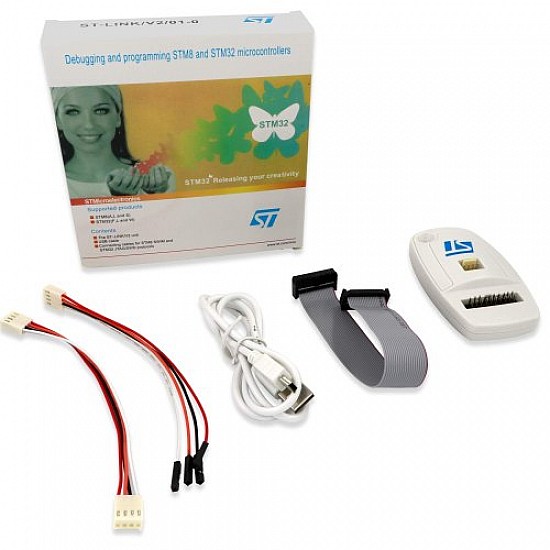

Package Includes :

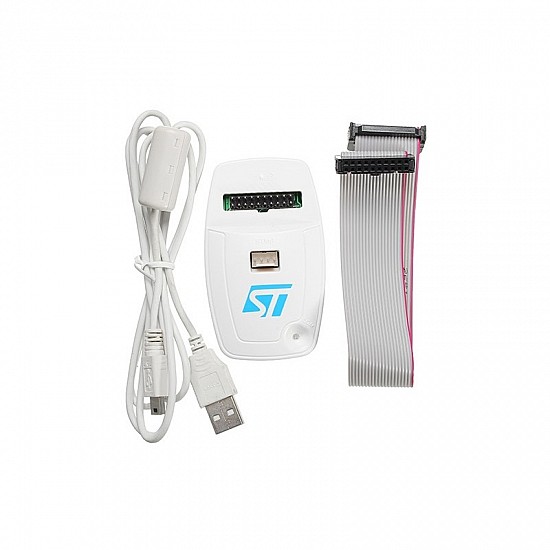

1 x ST-LINK/V2 debugging and programming Unit.

1 x USB standard A to mini B cable.

1 x Connecting Cable for STM8 SWIM and STM32 JTAG/SWD protocol.

1 x Flat ribbon with a standard ERNI connector at one end.

Technical
Input Voltage

1.65 ~ 5.5 V
USB

USB A to Mini- B cable
