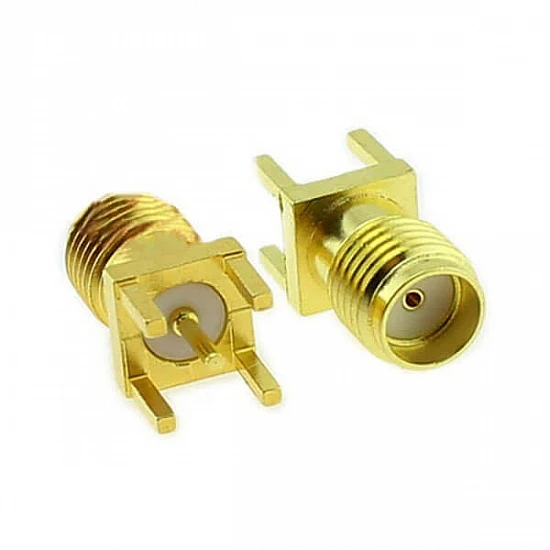

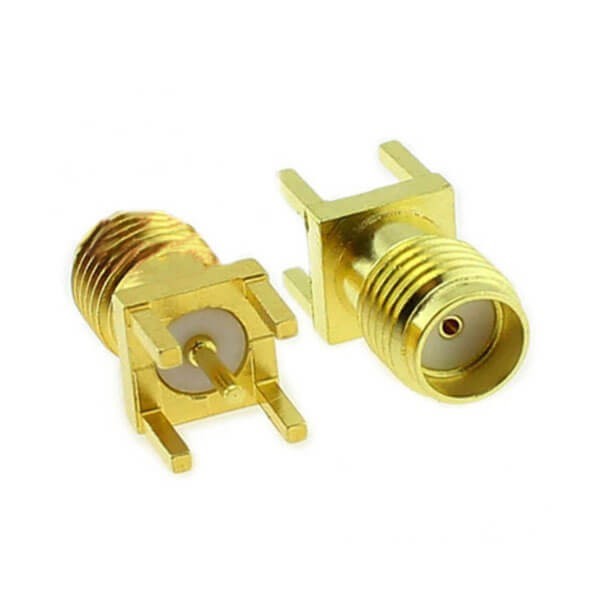

SMA Female for PCB Straight Type Through Hole Connector With Cap

SMA Female for PCB Straight Type Through Hole Connector With Cap
SMA Female for PCB Straight Type Through Hole Connector With Cap
₹24

(inc GST)

  • Stock: In Stock
  • SKU: FR-07-077
    10 or more ₹22
    50 or more ₹20

SMA Female for PCB Straight Type Through Hole Connector With Cap for SMA male RF antennas with a Characteristic impedance of 50Ω. They are widely used in connection with RF coaxial cable or the transmission of RF signals in the mobile communication system, GSM, GPRS, CDMA, LTE, GPS, GNSS, GLONASS, BeiDou corresponding to the network, IT field and LANs, etc. The characteristic of the connector is in a small volume, lightweight and convenient connection.

Specifications:

  • Impedance: 50Ω.
  • Connector Mounting: PCB mount.
  • Working voltage 335V Max
  • Insulation resistance ≥5000 mΩ.
  • Dielectric withstand voltage 1000V RMS
  • Frequency range –DC-12.4GHz
  • The insertion loss of ≥1.05 dB/6 GHz
  • Temperature range 65°C to 165°C

Features:

  • High Reliability, Resistance strong vibration, good mechanical, and electrical performance.
  • This jack is suitable for all types of SMA wireless modules. Used to connect the antenna
  • Radio and instrument equipment, and ground of the transmission system, which is widely used in vibration and hostile
  • environment, are widely used in radio frequency coaxial cable.

Package Includes:

1 x SMA Female for PCB Straight Type Through Hole Connector With Cap.
