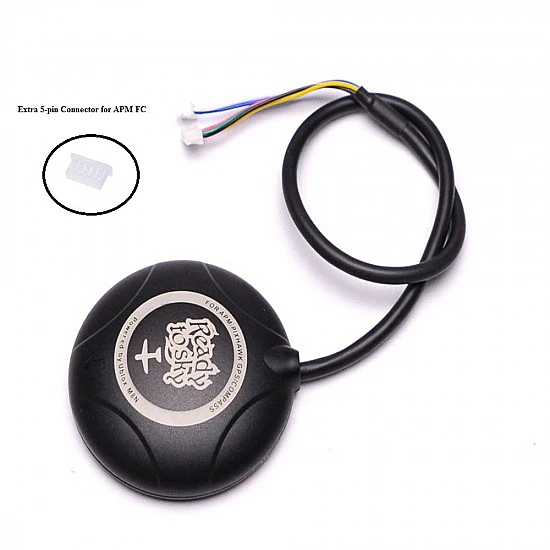

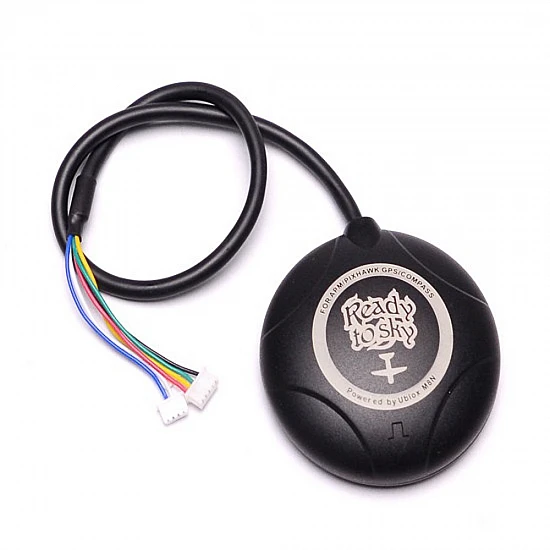

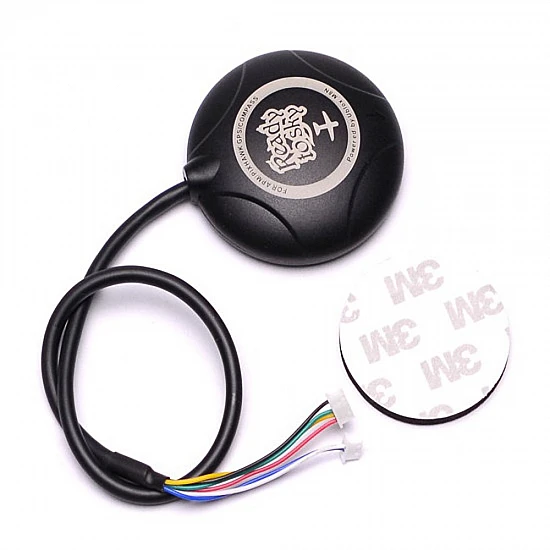

Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk with Extra Connector for APM

Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk with Extra Connector for APM
Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk with Extra Connector for APM
Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk with Extra Connector for APM
Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk with Extra Connector for APM
Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk with Extra Connector for APM
Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk with Extra Connector for APM
Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk with Extra Connector for APM
Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk with Extra Connector for APM
Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk with Extra Connector for APM
₹2,299

(inc GST)

  • Stock: In Stock
  • ₹22 FlyRobo Cashback.
  • SKU: FR-02-592
    3 or more ₹2,161
    10 or more ₹2,084
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

Readytosky Ublox NEO-M8N High Precision GPS Module has Built-in Compass for PIXHAWK and APM Flight Controller (Ready to connect to PIXHAWK FC) with onboard Compass, low power consumption, and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy. It support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more.

Features:

  • Supported antennas Active and passive
  • Odometer Travelled distance
  • Data-logger For position, velocity, and time (NEO-M8N)
  • It has an Onboard compass
  • Suitable for aircraft positioning, flight route, and automatic return flight.
  • The built-in compass can effectively reduce the interference to the magnetic field sensor.
  • You can connect the same module to APM Flight Controller just after swapping the extra 5-pin connector provided in the Package.

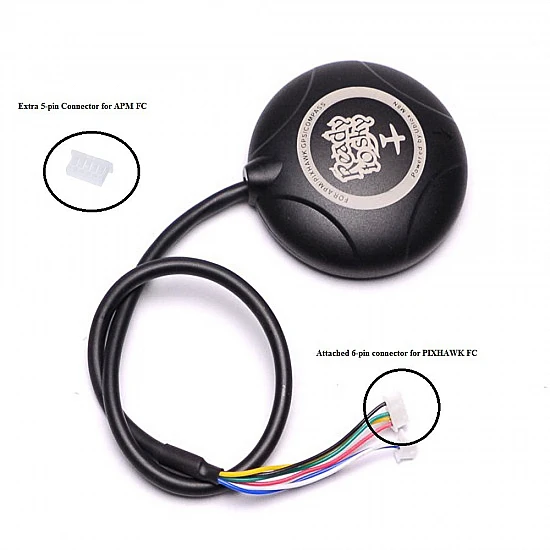

Note: The module comes with a 6 pin connector connected by default (i.e.Ready to connect to PIXHAWK Flight Controller) and also has an extra 5 pin connector for APM FC for Swapping.

Package Includes:

1 x Readytosky Ublox NEO-M8N GPS with Compass for Pixhawk.

1 x Extra 5-pin Connector for APM.

Technical
Model

Ublox NEO-M8N

Acceleration range

<4

Cable Length

30 cm

Diameter

54 mm

Input Supply Voltage

0.5 - 3.6 VDC

Operating Temperature Range

-45°C to 105°C

Receiver Type

72-channel Ublox M8 Engine

Sensitivity

Tracking & Navigation: -161 dBm

Tracking Sensitivity

-161 dBm

Width

15 mm
