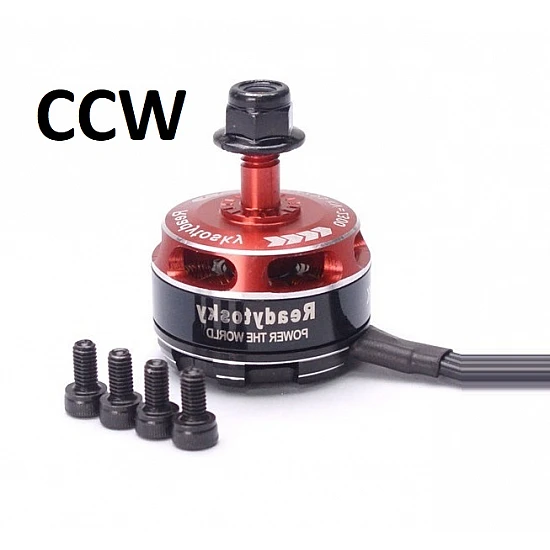

This GT2205 2300KV Brushless DC Motor is good quality, the light-weight multirotor motor with a very nice design both aesthetically and in terms of build quality. This Brushless DC Motor is very smooth and the tolerances are very tight. It comes with strong c-clip for reliable operation. The GT2205 2300KV Brushless DC Motor has curved high-temperature N52 magnets and quality proven bearings to improve the operational characteristics of the motor. The only drawback of this motor is the problem with self-cooling technology. It shows the lack of exposed fins which are really important for cooling purpose. As we have tested this GT2205 2300KV BLDC motor for its abilities, we have no doubt that it will definitely answer the need for serious makers and pilots of drone racers everywhere.
- KV: 2300
- Direction: CCW
- Stator diameter: 22mm
- Stator length: 5mm
- Shaft diameter: 4.0mm
- Motor dimension(Dia*Len): 27.5*34.35mm
- Idle current(10)@10V(A): 0.6
- No.of cells (Lipo): 3-4S
- Max continuous Power(W) 180S: 495
- Internal resistance: 65mÎ©
- Max current(180s): 30A
- Max.Efficiency Current: (3-6A)>81%
- The build quality on these is really top-notch.
- The motor is extremely smooth
- The motor weighs around 35 grams.
- The use of a very strong c-clip makes the motor durable.
- Thin, wide and curved magnets for unique flight characteristics.
Package Includes :
1 x GT2205 2300KV Brushless DC Motor
4 x Socket Head Cap (Allen) Bolts for motor fitting
