RC Aeroplane Kit ( Motor + ESC + Propeller + Servo + TX-RX (FSI6))

RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
-19 %
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX (FSI6))
RC Aeroplane Kit ( Motor + ESC + Propeller + Servo + TX-RX (FSI6))
₹6,099
₹7,499

(inc GST)

  • Stock: In Stock
  • ₹60 FlyRobo Cashback.
  • SKU: FRC-02-681

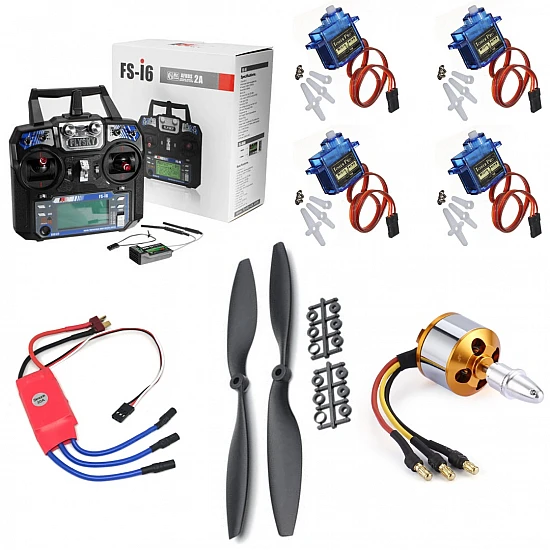

This RC Aeroplane Kit includes almost all parts for the basic RC Aeroplane with 6ch RX TX. It includes everything to make and fly your own RC Aeroplane. This Kit Provides a FlySky FS-i6 RC Transmitter with Receiver,1000kv Brushless motor,30A Simonk ESC, TowerPro SG90 Servo Motor, and a 1045 Propeller pair(CW+CCW).

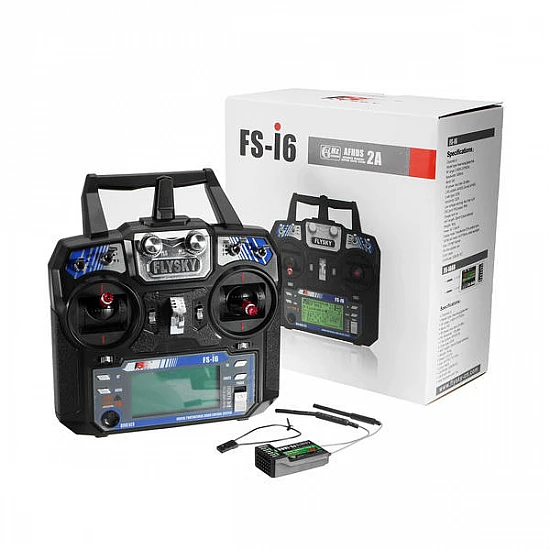

FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter with FS-iA6 Receiver is a great low-cost entry-level 6-channel 2.4 GHz Transmitter and Receiver that uses solid and reliable Automatic Frequency Hopping Digital System spread spectrum technology. It also comes with an FS-iA6 6-channel receiver. Suitable for controlling Quadcopters, Multirotor, Heli, and Airplane.

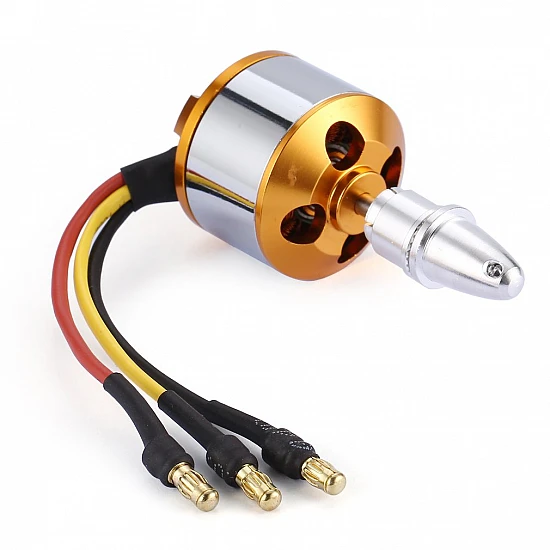

1000KV Brushless DC Motor is a brushless motor specifically made for RC planes, quadcopters, and multi-rotors. It is a 1000kV motor. It provides high performance, superpower, and brilliant efficiency.

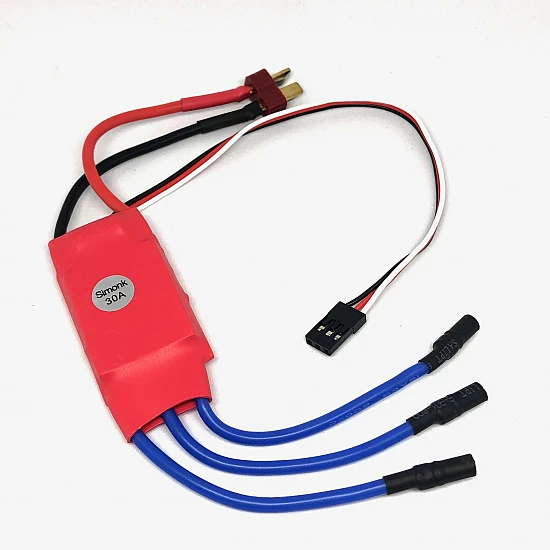

30A Simonk ESC Electronic Speed Controller can drive motors that consume up to 30A current. It can be used to control our brushless motors with a 2S-3S LiPo. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules.

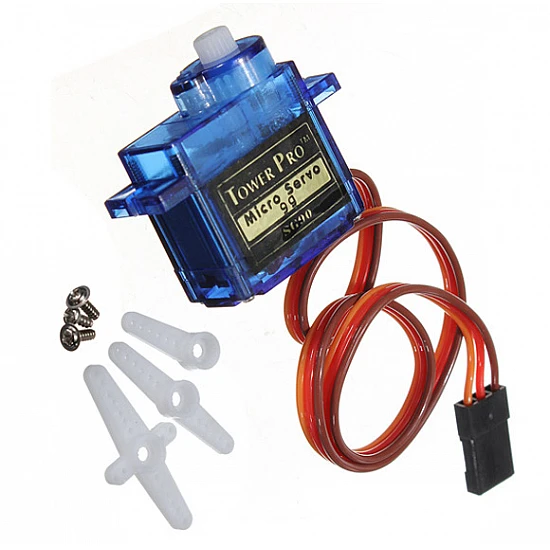

TowerPro SG90 Servo Motor is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance and high torque of 1.5 kg-cm gives you the freedom to use it for a variety of projects.

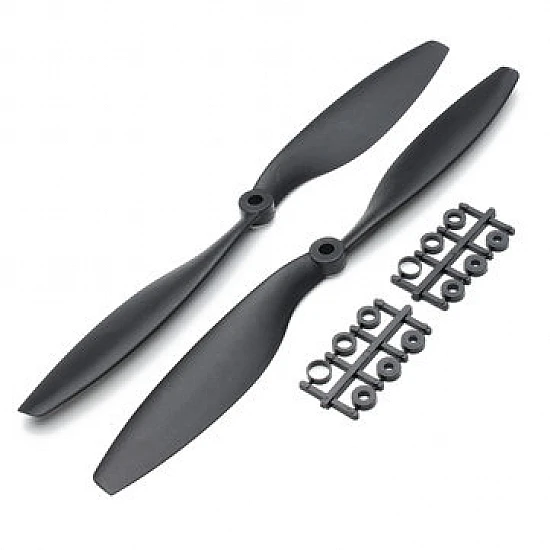

The 10x4.5 inch Propeller Pair (CW+CCW) is a set of counter-rotating RC aircraft propellers perfect for use in twin and multiple motor RC airplanes or coaxial RC helicopters.  The length is 10 inches and the pitch is 4.5 inches per revolution.

Package Includes:

1 x Flysky FS-i6 2.4G 6CH TX-RX

1 x A2212 1000KV Brushless Motor For RC Airplane / Quadcopter

1 x 30A Brushless ESC

1 x 1045 Propeller 10in 10x4.5 For Drone



4 x Tower Pro 9G Micro Servo Motor

Oximeter
Dimension

27.8x27 mm

ESC
Batteries

2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery

BEC

2 A

Constant Current

30A (Max 40A less than 10 seconds)

Input Voltage

5.6V - 16.8V

Motor
Batteries

2-3 cell Li-Poly

Current Capacity

12A/60s

Max Efficiency

80%

Max Efficiency Current

4-10A (>75%)

Model

A2212

No Load Current

0.5A @10V

Shaft Diameter

3.17mm

Propeller
Length

10 inch

Pitch

4.5 inch

Servo Motor
Dimensions (LxWxH)

2.2 x 1.15 x 2.7 cm

Model

TOWER PRO 9G MICRO SERVO MOTOR

Operating Voltage

4.8 - 6 V

Transmitter And Receiver
Band

142

Channels

6

Frequency Range

2.40-2.48GHz

Model

FlySky FS-i6 6CH AFHDS Transmitter With FS-iA6B Receiver

Size

Transmitter: 17.4 X 8.9 X 19 cm; Receiver: 4.7 x 2.62 x 1.5 cm

Questions11 Answers10 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?755
Which battery should I use with this kit ?
Kalp
  • You can use 3 cell lipo battery with less than 2200 mah as per my opinion. https://www.flyrobo.in/11.1v-2200mah-lipo-battery-with-imax-b3-lipo-balance-charger?search=2200+mah&description=true
    Flyrobo[ 25/05/2023 ]
    Was this answer helpful?1
In kit servo motor are 4 and propeller are 2 and we get same remote as shown in picture
Shamanth
Load capacity of RC aircraft
What's the max load carrying capacity??
Srikanth SP
Do you deliver in Nashik , Maharashtra , India
Nimu Patel
  • Yes, Our service is available in Nashik , Maharashtra , India.

    FlyRobo[ 27/01/2022 ]
    Was this answer helpful?-1
Can it be delivered in telengana?
Can it be delivered to telengana?
Sanjeev
  • Yes, Our service is available in Telangana, State of India.
    Flyrobo[ 07/03/2023 ]
    Was this answer helpful?-5
Does the esc have bec
Does the esc come with bec
Md.Mamun
  • Yes sir, This RC plane kit cones with Simonk ESC with 5V BEC Out.
    FlyRobo[ 19/07/2022 ]
    Was this answer helpful?-6
Transmeter and recever range
Sharu
  • This RC Aeroplane Kit comes with the FS-i6 transmitter & FS-iA6B Receiver of Flysky brand. Flysky has not officially declared the range but as per the customer review the operational distance of the device is up to 1500 meters and is subject to magnetic interference. When the level of magnetic interference is higher, the range of the transmitter decreases, whereas when the level of magnetic interference is lower, the transmitter can operate at a greater range.
    Flyrobo[ 13/03/2023 ]
    Was this answer helpful?-8
Does it come included with a board
Can it control how much thrust is put out by the motor and propellers
Neha Gupta Menon
  • The board does not come with it you will find it in a stationery shop or it depends on which type of board you want to use to build an RC plane body. people also make RC planes using simple corrugated box. Weightlifting capacity depends on many factors. like frame design. Weight of other things also affects it. like Battery weight, board weight etc. Hence we will not be able to provide this information. While motor comes with it is 1000kv motor and has a maximum thrust capacity of ~1000g.
    Flyrobo[ 03/03/2023 ]
    Was this answer helpful?-8
कितने किलोमीटर दूर तक कवर करता है।
बैटरी सैल वाली है या चार्जिंग वाली।
नंद किशोर बैरागी कोटा राज
  • 500mtr to 1 KM.
    FlyRobo[ 17/07/2021 ]
    Was this answer helpful?-9
When will delivered order?
Ajeet
  • Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.
    FlyRobo[ 16/07/2021 ]
    Was this answer helpful?-1056
