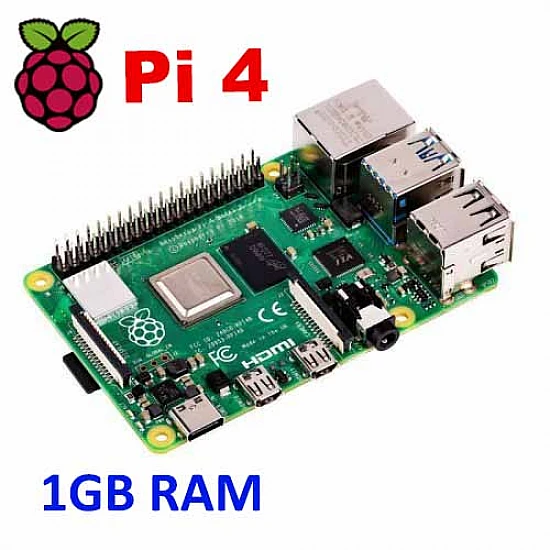

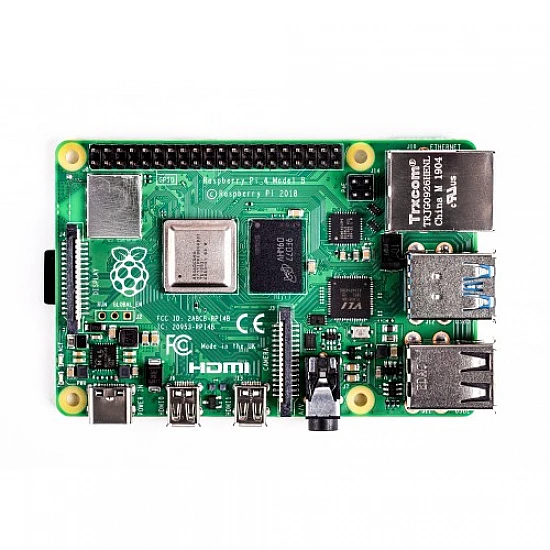

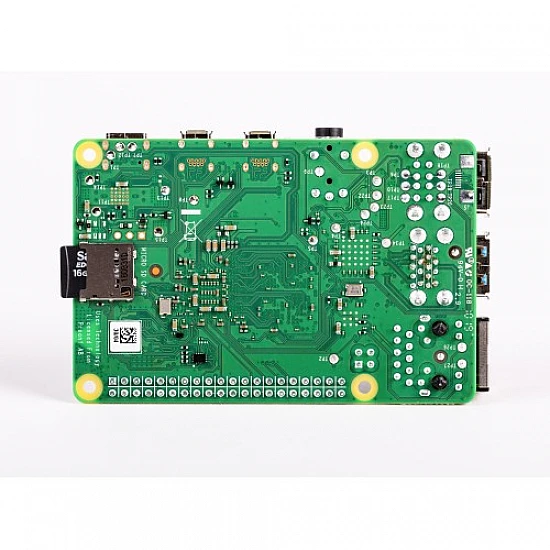

Raspberry Pi 4 Model-B with 1 GB RAM

This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, 1 GB RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+ while retaining backward compatibility and similar power consumption. For the end-user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.

Raspberry Pi Foundation has launched Raspberry Pi 4 Model B in 3 versions:

  1. Raspberry Pi 4 Model-B with 1 GB RAM
  2. Raspberry Pi 4 Model-B with 2 GB RAM
  3. Raspberry Pi 4 Model-B with 4 GB RAM


Specifications:

Model-Raspberry Pi 4 Model-B

Processor- Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

RAM Memory - 1 GB LPDDR4 SDRAM

Connectivity:

  1.  2 × USB 2.0 Ports
  2.  2 × USB 3.0 Ports
  3.  2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, BLE Gigabit Ethernet Bluetooth 5.0

Operating Power:

  1.  5 Volt 3 Ampere DC via GPIO header
  2.  5 Volt 3 Ampere DC via USB Type-C Connector
  3.  Power Over Ethernet (PoE)–Enabled (requires separate PoE HAT)
  4.  GPIO- (Fully backward compatible with previous boards)

Multimedia:

  1.  H.264 (1080p60 decode, 1080p30 encode);
  2.  H.265 (4Kp60 decode);
  3.  OpenGL ES, 3.0 Graphics

Video and Sound:

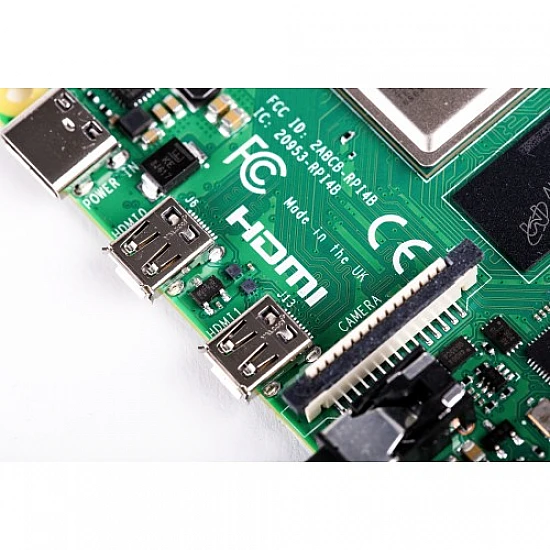

  1.  2  x  micro HDMI ports (up to 4Kp60 supported)

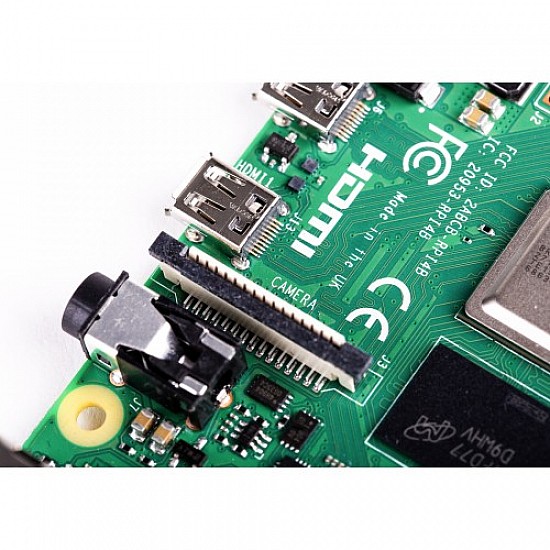

  2.  2 x Lane MIPI CSI Camera Port

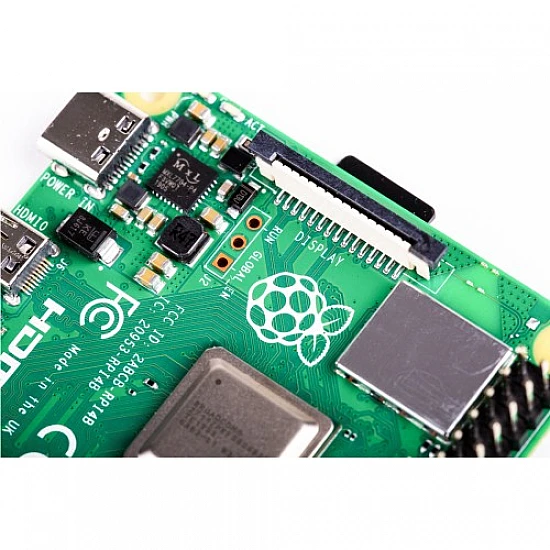

  3.  2 x Lane MIPI DSI Display Port

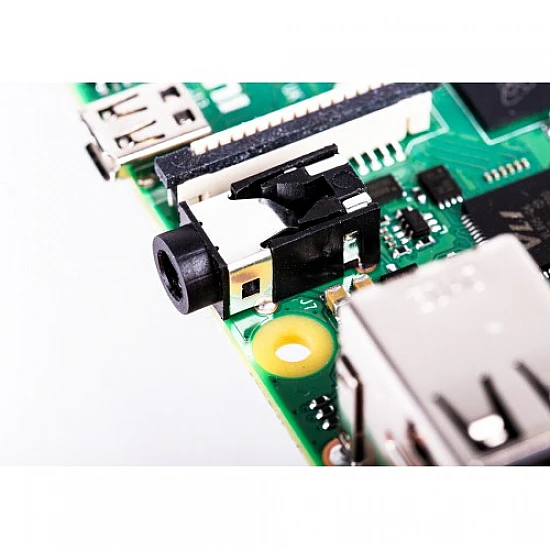

  4.  4 x Pole Stereo Audio and Composite Video Port

Clock Speed- 1.5 GHz

Micro-SD Card Slot- Yes (FAT32 format), support maximum 32G Micro SD Card Memory Features

Operating Temperature Range- 0ºC to 50ºC




Features/Specs

Raspberry Pi 4B

Raspberry Pi 3 B+

Release date 24th June 2019 14th March 2018
SoC Broadcom BCM2711
quad-core Cortex-A72 @ 1.5 GHz
Broadcom BCM2837B0
quad-core Cortex-A53 @ 1.4 GHz
GPU VideoCore VI with OpenGL ES 1.1, 2.0, 3.0 VideoCore IV with OpenGL ES 1.1, 2.0
Video Decode H.265 4Kp60, H.264 1080p60 H.264 & MPEG-4 1080p30
Video Encode H.264 1080p30
Memory 1GB, 2GB, or 4GB LPDDR4 1GB LPDDR2
Storage microSD card
Video & Audio Output 2x micro HDMI ports up to 4Kp60
3.5mm AV port (composite + audio)
MIPI DSI connector
1x HDMI 1.4 port up to 1080p60
3.5mm AV port (composite + audio)
MIPI DSI connector
Camera MIPI CSI connector
Ethernet Native Gigabit Ethernet Gigabit Ethernet over USB (300 Mbps max.)
WiFi Dual-band 802.11 b/g/n/ac
Bluetooth Bluetooth 5.0 + BLE Bluetooth 4.2 + BLE
USB 2x USB 3.0 + 2x USB 2.0 4x USB 2.0
Expansion 40-pin GPIO header

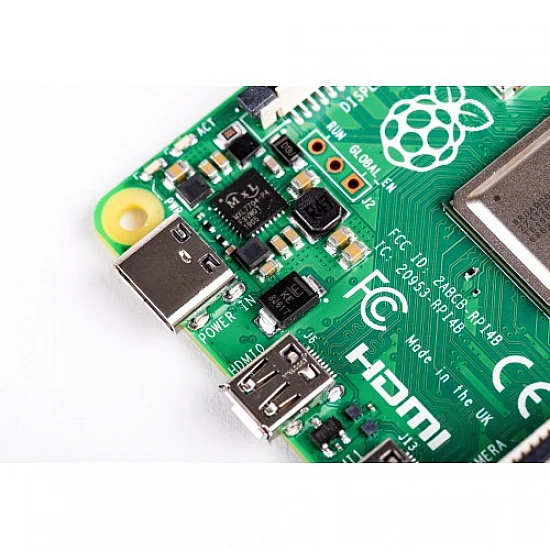

Power Supply 5V via USB type-C up to 3A
5V via GPIO header up to 3A
Power over Ethernet via PoE HAT
5V via micro USB up to 2.5A
5V via GPIO header up to 3A
Power over Ethernet via PoE HAT
Dimensions 85×56 mm
Default OS Raspbian (after June 24, 2019) Raspbian (after March 2018)


Key Features:

Faster processing:

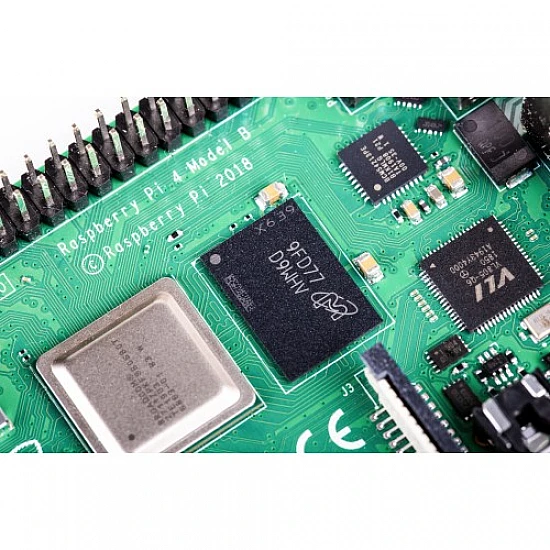

  • With one of latest Broadcom 2711, Quad-Core Cortex A72 (ARM V8-A)  64-bit SoC Clocked at  1.5GHz  processor improved power consumptions and thermals on the Pi 4+Bmeans that the CPU on the BCM2837 SoC can now run at 1.5GHz, a 20% increase on the previous Pi 3 model (which ran at 1.2GHz).
  • Hardware upgrade on Pi4 developed for more faster performance e with all new 1GB/2GB and 4GB LPDDR4 SDRAM variants.
  • Video performance on Pi 4 B is also upgraded with dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60 which supports H 265 Decode (4Kp60), H.264, and MPEG-4 decode (1080p60).

Faster wireless:

  • A significant change on the Pi 4 B compared to the previous Pi 3 models is the inclusion of a new faster, dual-band wireless chip with 802.11 b/g/n/ac wireless LAN.
  • The dual-band 2.4GHz and 5GHz wireless LAN enables faster networking with less interference and the new PCB antenna technology allow better reception.
  • Latest 5.0 Bluetooth allows you to use a wireless keyboard/trackpad with more range than before without extra dongles, keeping things nice and tidy.

Enhanced Ethernet Connectivity:

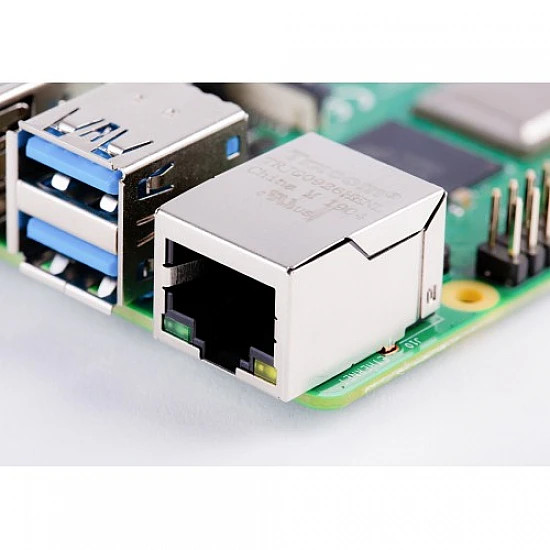

  • The Pi 4 B has significantly faster-wired networking with USB 3.0 technology, thanks to an upgraded USB/LAN chip, and you should see speeds that are 10x faster than on previous models of the Pi.

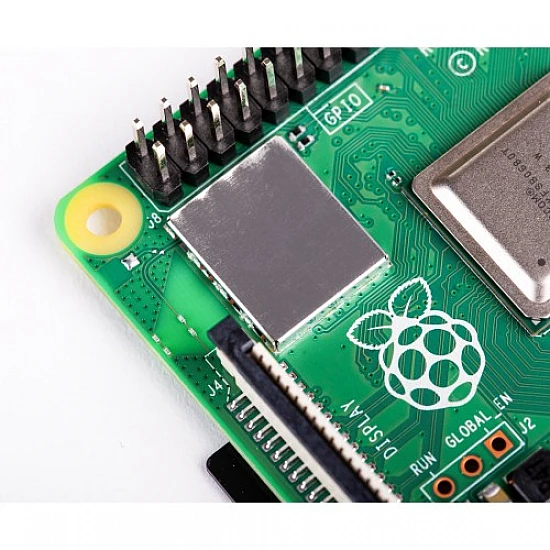

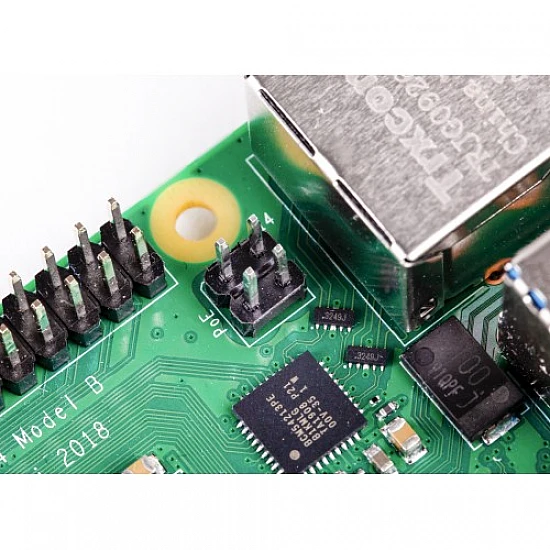

  • The GPIO header remains the same, with 40 pins, fully backward-compatible with previous boards as on the previous three models of Pi. However, it should be noted that the new PoE header pins may contact components on the underside of some HATs, like Rainbow HAT. Some standoffs will prevent any mischief from occurring though.


Package Content:

1 x Raspberry Pi 4 Model-B with 1 GB RAM
