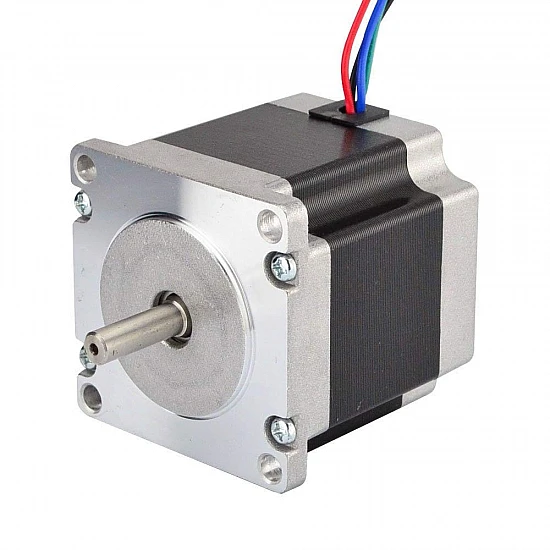

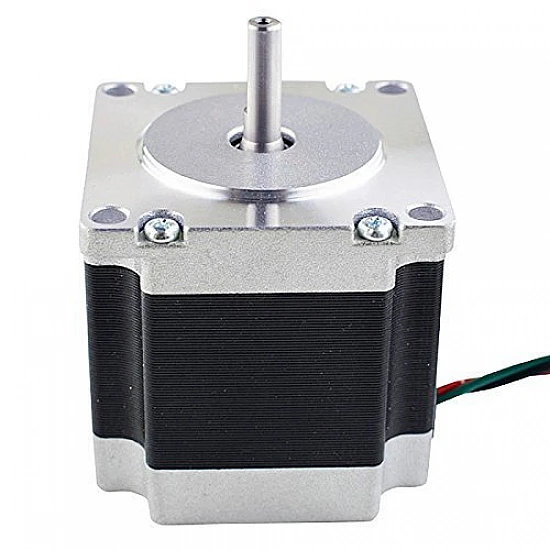

NEMA23 10.1 kg-cm Stepper Motor

NEMA23 10.1 kg-cm Stepper Motor
NEMA23 10.1 kg-cm Stepper Motor
Out Of Stock
NEMA23 10.1 kg-cm Stepper Motor
NEMA23 10.1 kg-cm Stepper Motor

NEMA23 10.1 kg-cm Stepper Motor
₹1,199

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹11 FlyRobo Cashback.
  • SKU: FR-04-436

The NEMA23 10.1 kg-cm Stepper Motor can provide 10.1 kg-cm of torque at 2.8A current per phase. The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control.

The motor’s position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. The NEMA23 10.1 kg-cm Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.

They are very useful in various applications, especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc.

Features:

  • High accuracy of around 3 to 5% a step.
  • The input pulse decides the rotation angle of the motor.
  • Control of this motor is less costly because of the exclusion of complex control circuitry.
  • Provides good starting, stopping, and reversing.
  • The speed is proportional to the frequency of the input pulses.
  • Comparably more powerful than NEMA17 motors.

Package Includes:

1 x NEMA23 10.1 KGCM Stepper Motor

Technical
Accuracy

Inductance Accuracy: ±20%; Resistance Accuracy: ±10%; Step Angle Accuracy: ±5%

Detent Torque

0.36 Kg-Cm

Holding Torque

10.1 Kg-Cm

Inductance

2.2 mH/Phase

Input Current

2.8 A/Phase

No. of Leads

4

Operating Voltage

2.3

Resistance

0.83 ohm

Shaft Diameter

0.635 cm

Shaft Length

2.06 cm

Shaft Type

Round

Step Angle

1.8°

Dimensions (LxWxH)

5.1x5.7x5.7 cm
