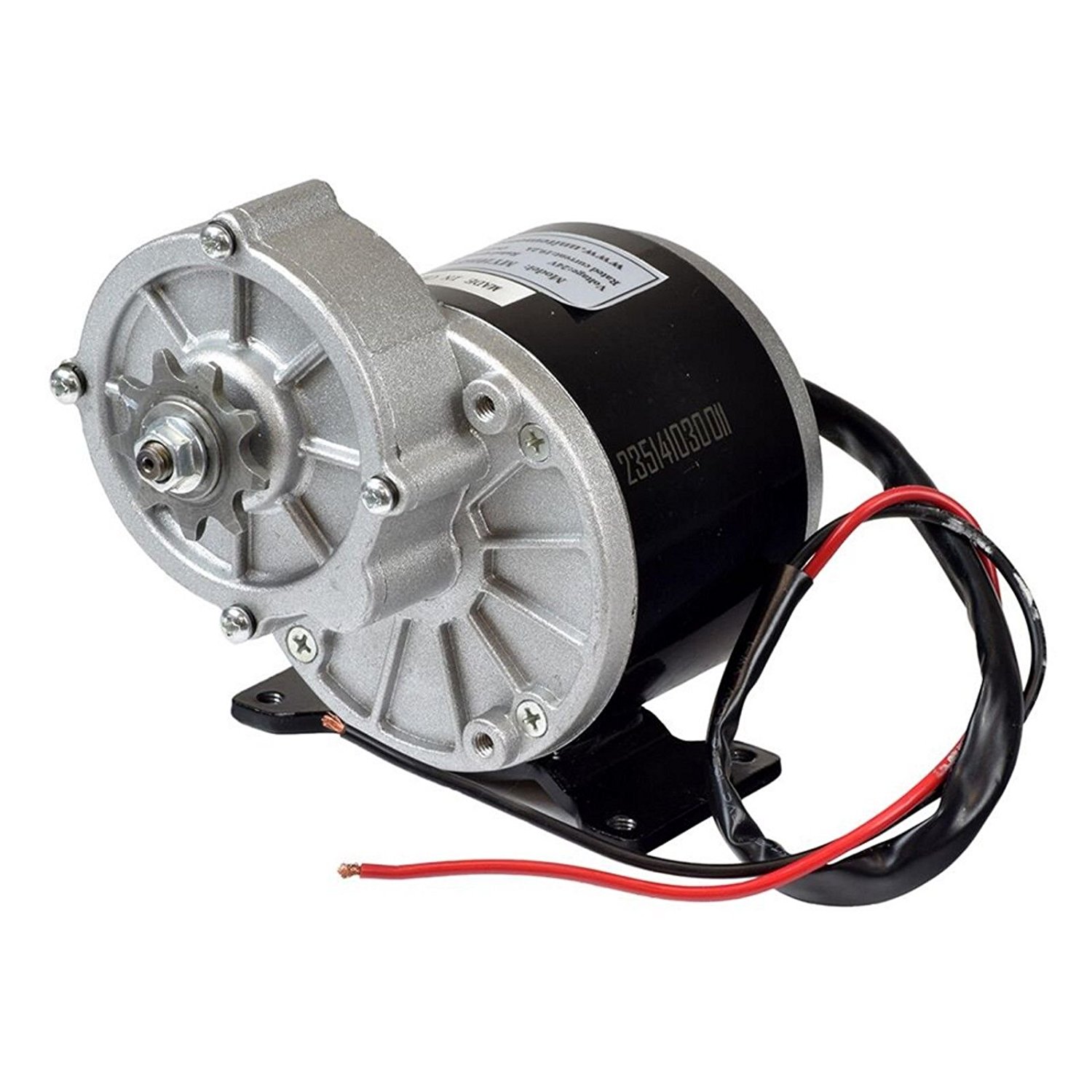

This popular MY1016Z3 reduction motor is simply the most commonly used motor for Scooters, Bikes and quad's available in the market!
It is normally found in the better quality quads and scooters on the market and is classed as a mid range combination.
They are quite powerful for their small size and extremely reliable. We've sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go and go etc!
- 24 Volt DC Operation.
- Permanent Magnet DC Motor.
- No Load RPM: 3850.
- No Load Current: <2.2 Amps.
- Rated Wattage: 350W (0.50 Horsepower).
- Rated Load RPM: 400.
- Torque (NM): 40.
- Rated Current: 19 Amps.
- Efficiency: 78%.
- Reduction Ratio: 9.78:1.
- Direct Drive (No Free Spooling).
- Suitable for Forward and Reverse Operations.
- Base Mount Model.
- 9 Tooth Sprocket for 1/2" x 1/8" Pitch Chain.
This motor is capable of rotation in either clockwise or counter clockwise by reversing the motor's power wires.
For Chain Size: Pitch 0.5in; Roller Diameter 0.3in; Roller Width 0.16in
Packing Details -

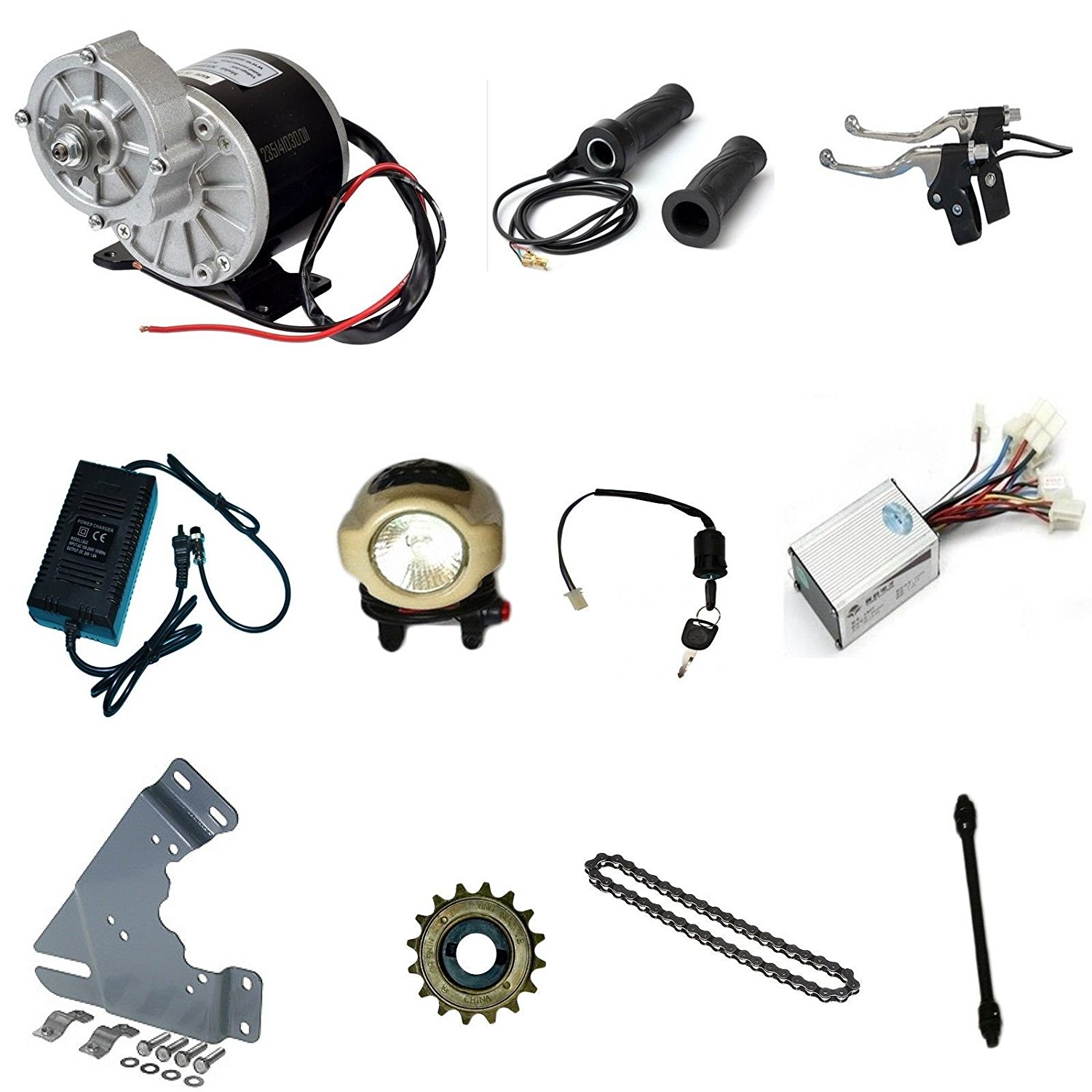

The motor kit includes:
1. 1pcs x MY1016Z3 DC 24V 350W motor.
2. 1pcs x Motor controller.

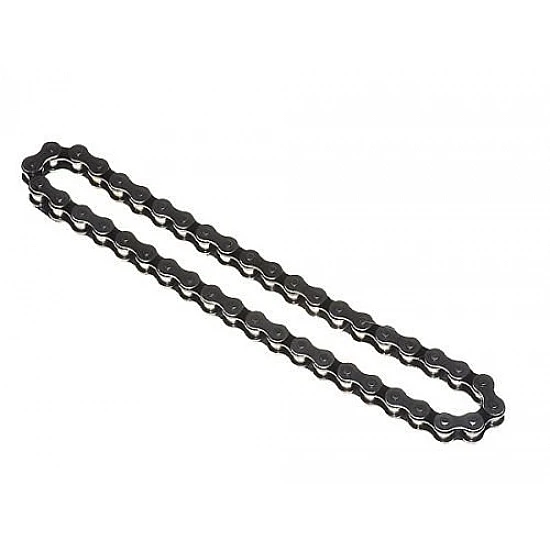

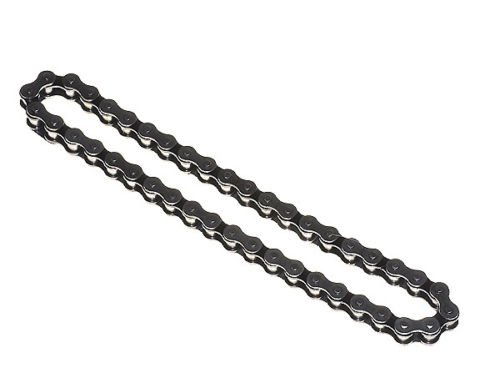

3. 1pcs x Chain.
4. 1pcs x Freewheel.
5. 1pcs x Freewheel adapter.
6. 1pcs x Mounting plate with bolts.
7. 1pcs x Throttle handle & Brake lever.

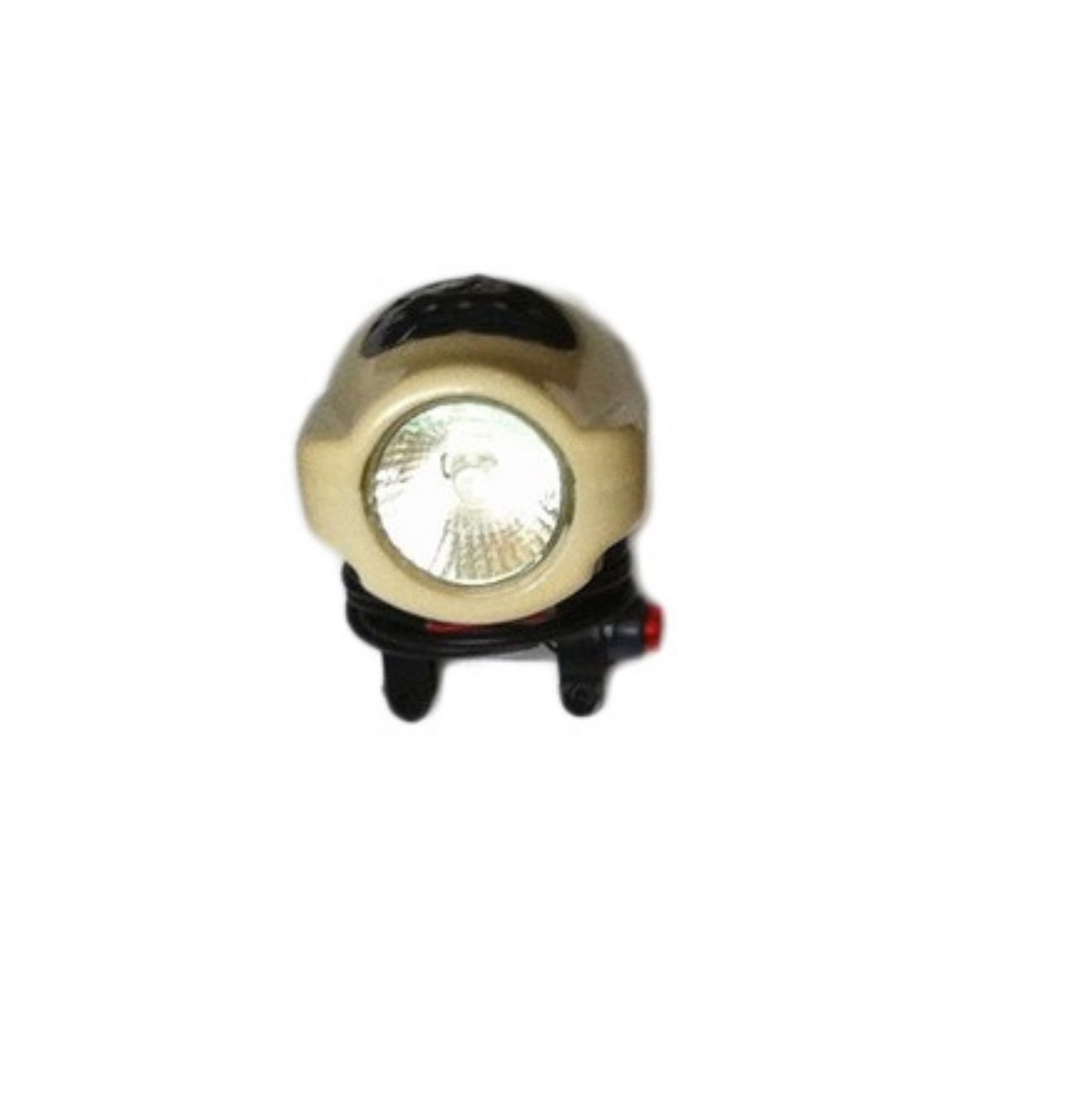

8. 1pcs x Headlight.

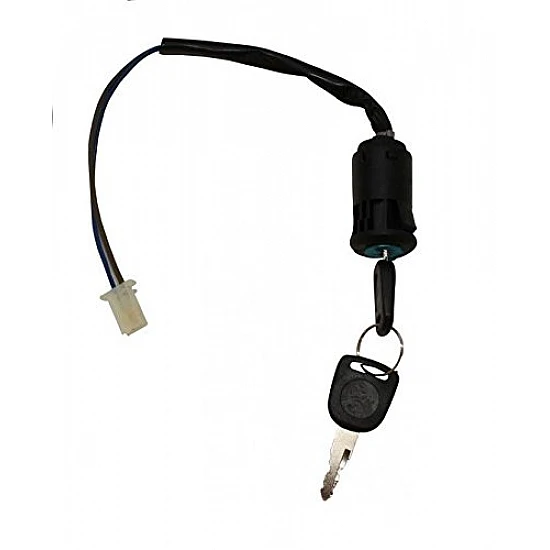

9. 1pcs x Switch & key.
10. 1pcs x 18cm axis.

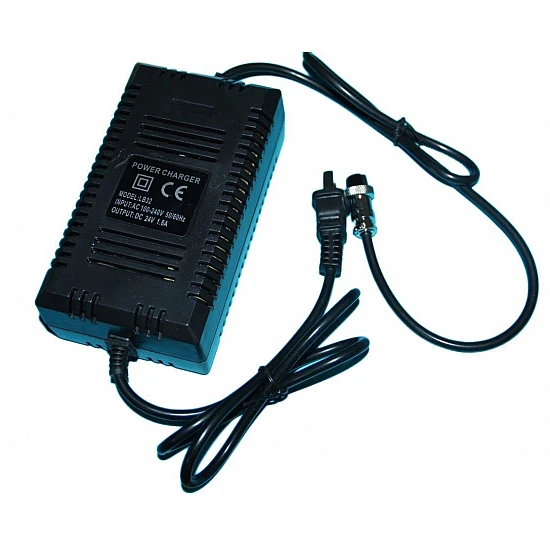

11. 1pc x Charger.
Please note - This kit does not include batteries.
This kit is made to be compatible with almost all bicycles. there is very few bicycles where this is not compatible but you can make it compatible with some extra nut bolt and small efforts.[ 27/10/2021 ]Was this answer helpful?
Order will be delivered within 1-3 days in metro city, 3-5 days in other city and 4-7 days in villages or small city. This is the average time of delivery in express shipping. but can change with different locations and different situations.[ 16/07/2021 ]Was this answer helpful?
