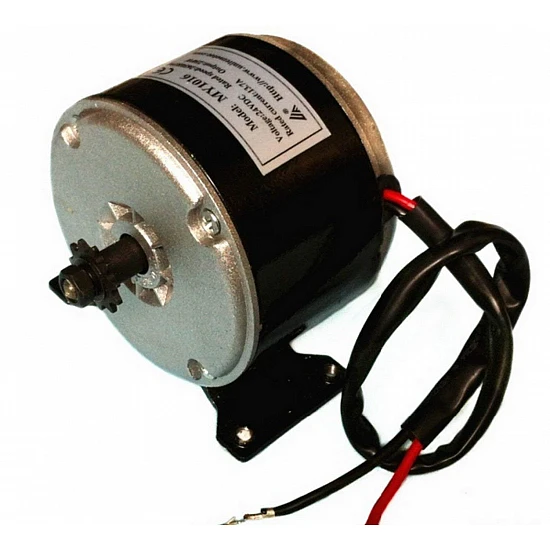

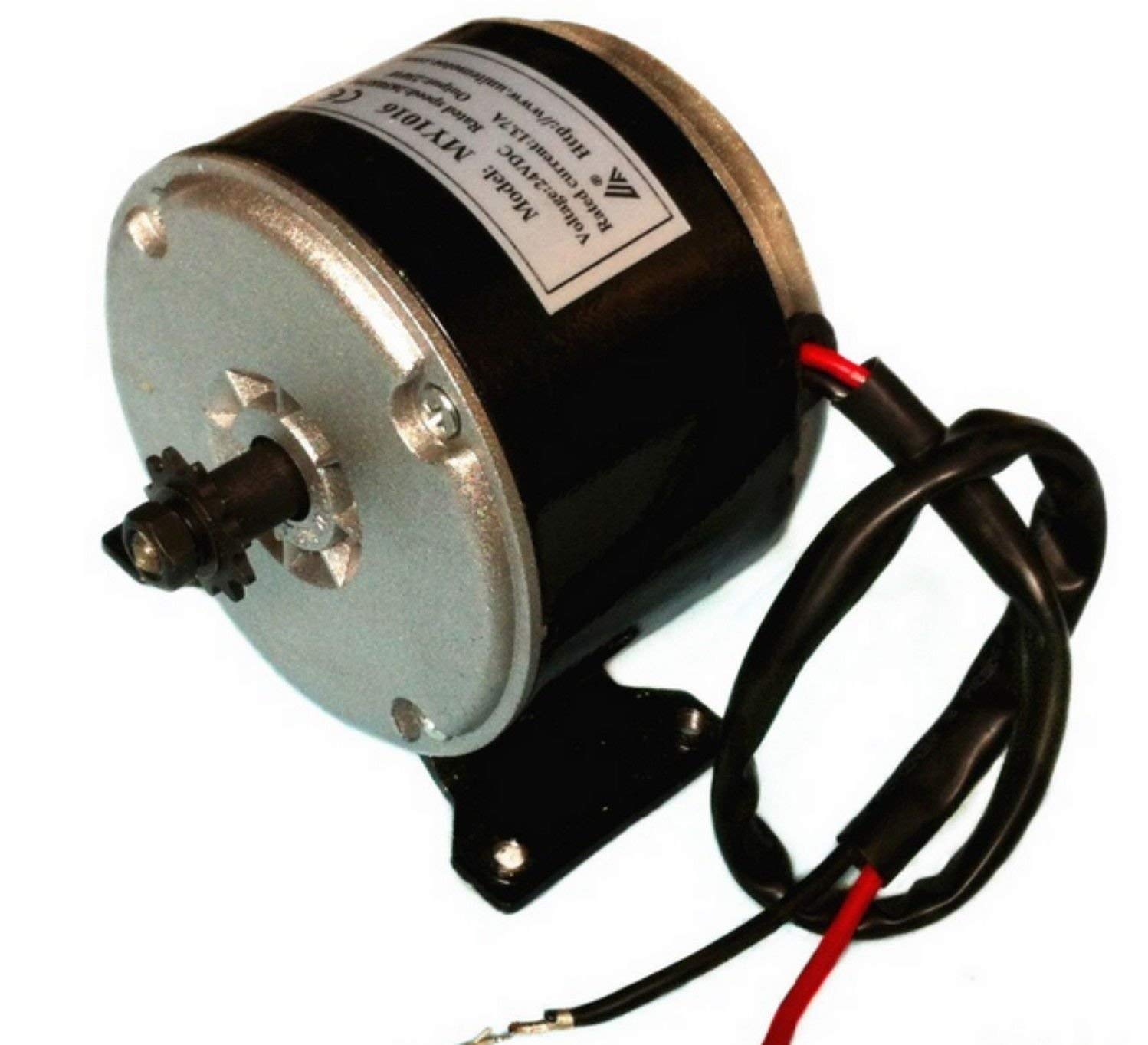

Electric Bicycle permanent Magnet DC Motor MY1016. 24 volt 250 watt output electric scooter and bike motor.
- rated speed (rpm) :2650 +/- 5 %
- rated current : ≤ 13.7A; current without load :0.7 - 1.4 A
- rated torque :0.87 Nm
- transmission :chain sprocket (11 teeth, pitch 1/4"=6,35 mm), exchangeable, fixation nut shaft diameter :10 mm (milled groove one-sided 1,5 mm)

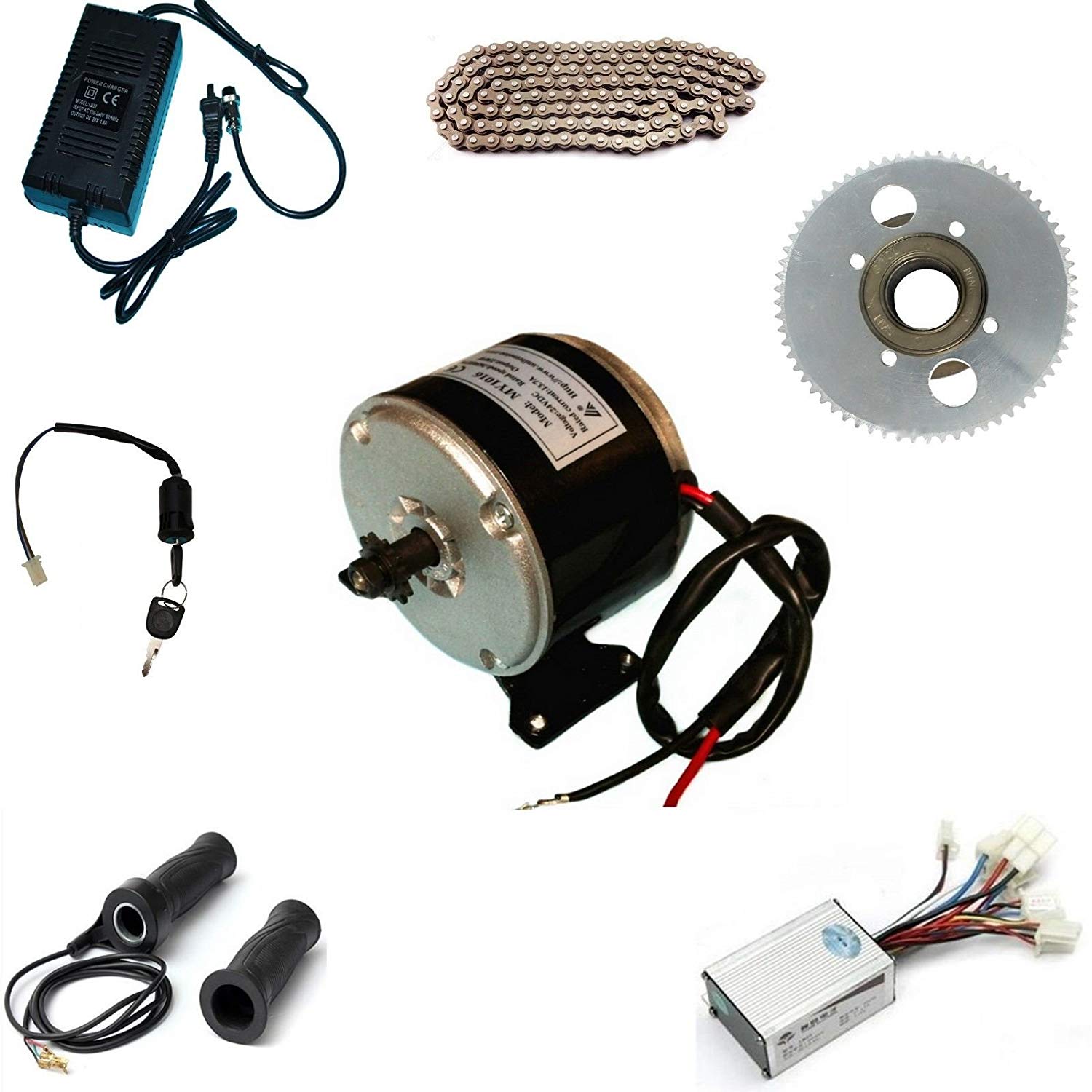

The motor kit include:
1. 1pcs x 24v MY1016 250w motor

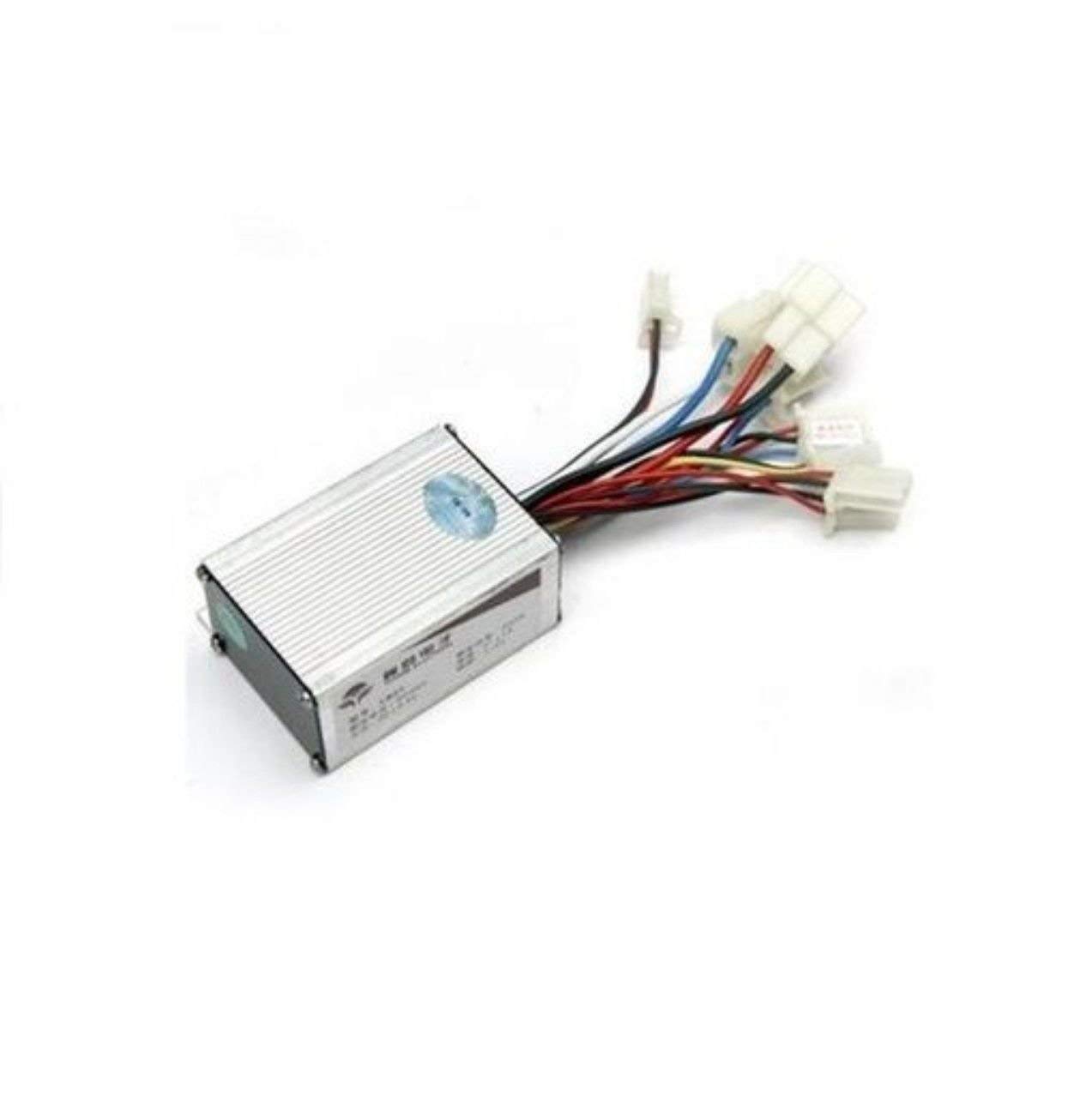

2. 1pcs x 24v 250w controller

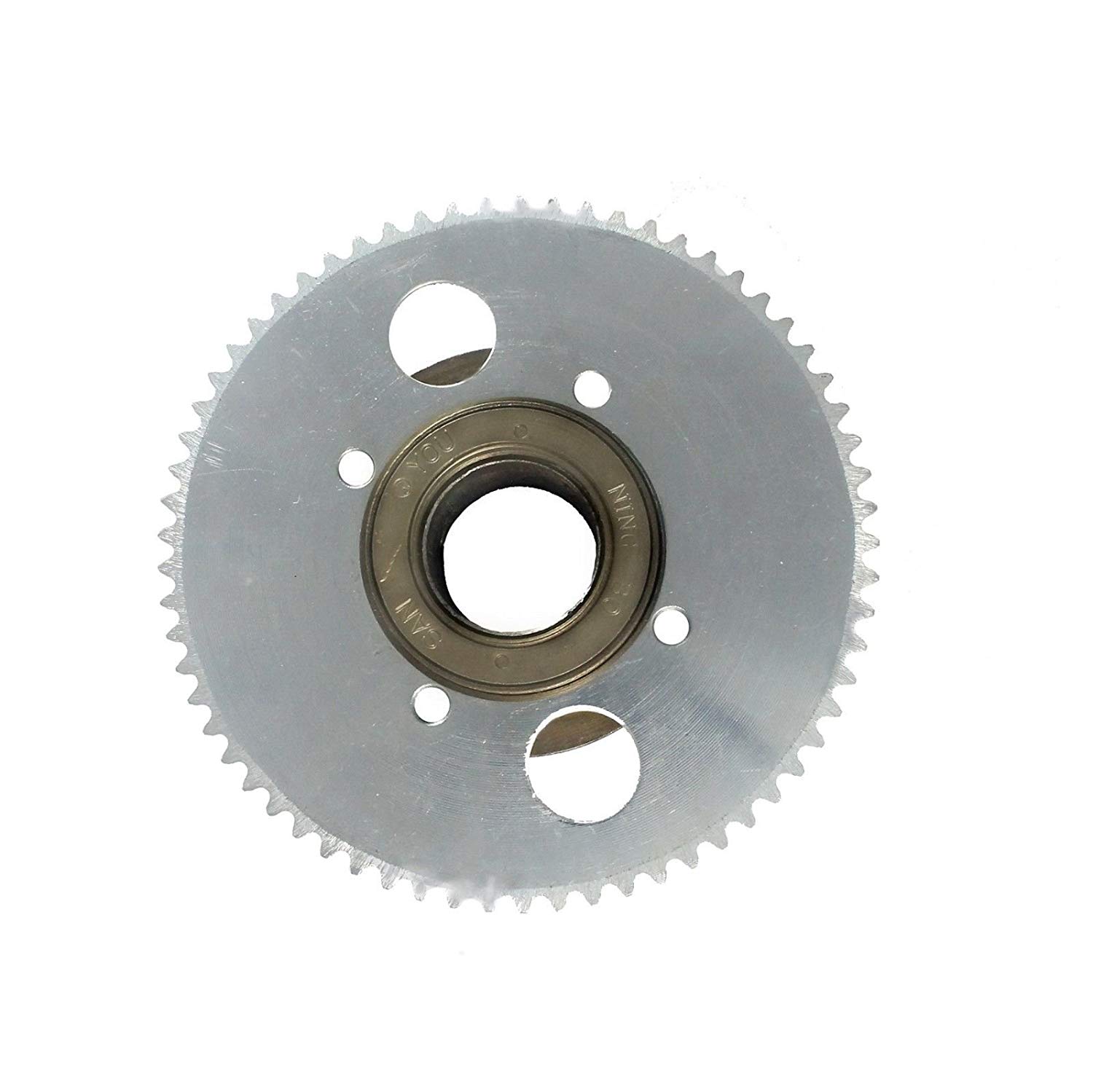

3. 1 pcs x 80T tooth （Dental plate）
4. 1 pair x Throttles
5. 1 pcs x 25H chain
6. 1 pcs x Freewheel

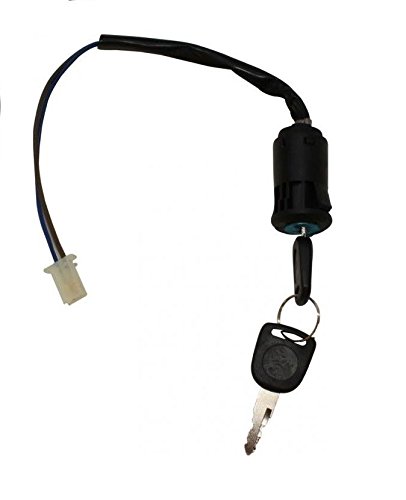

7. 1 pcs x electric door lock

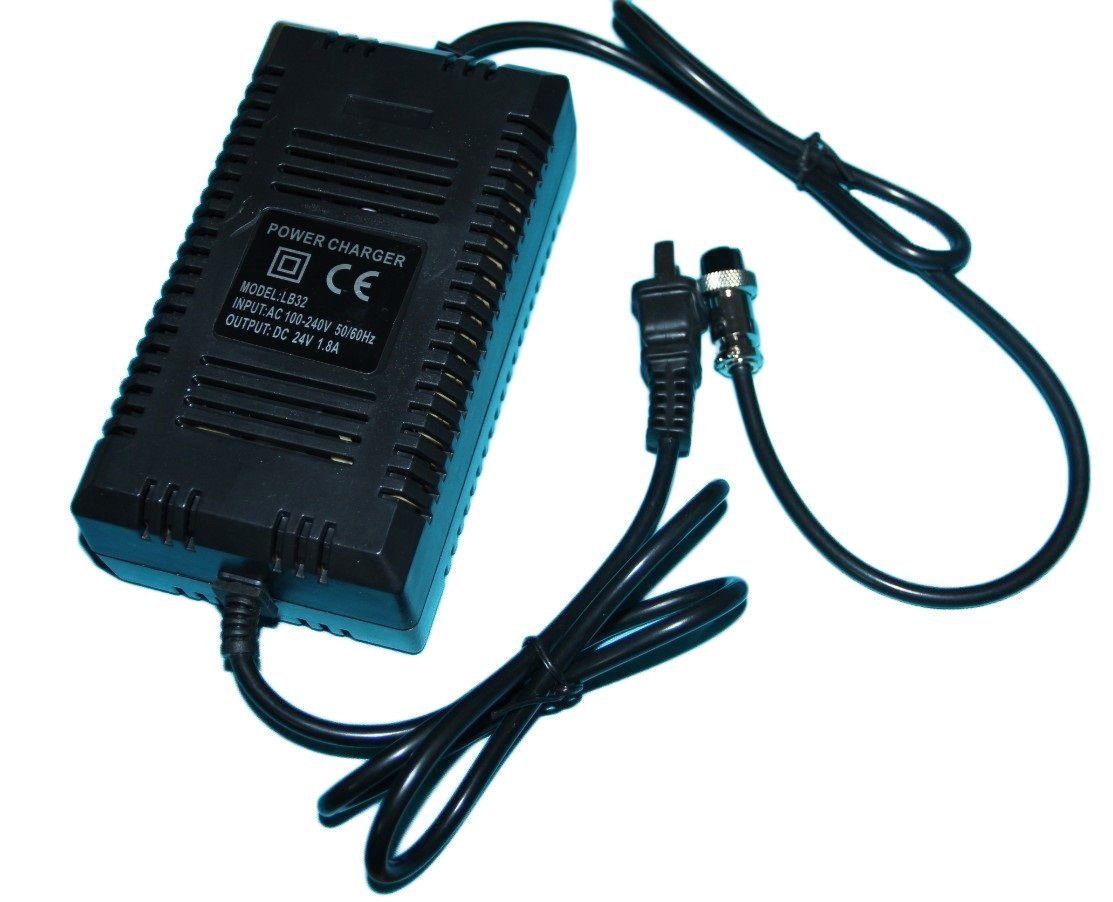

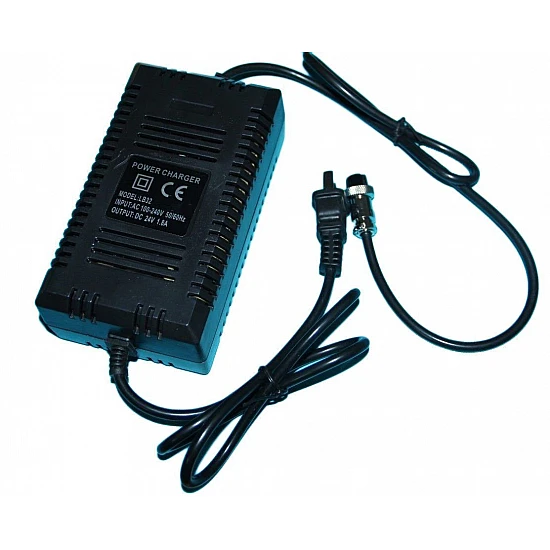

8. 1 pc x Charger
Pls note - This kit does not include battery
