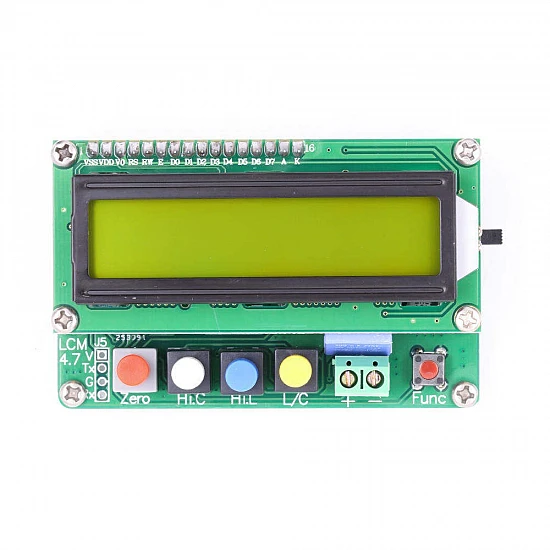

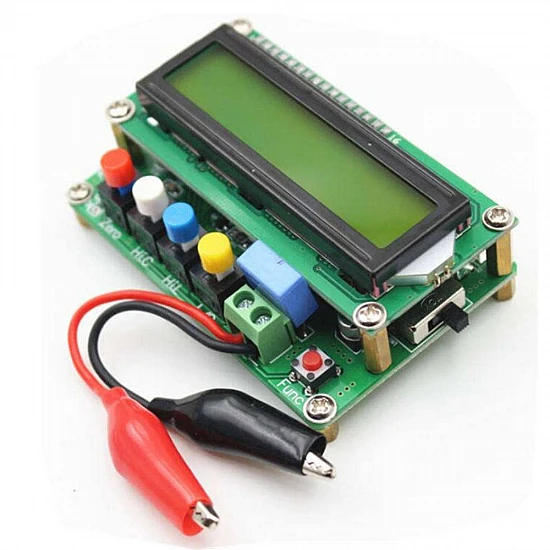

LC100-A High-Precision Digital LC Meter Inductance Capacitance

The LC100-A High-Precision Digital LC Meter is an indispensable diagnostic tool designed for makers, students, and RF engineers who require highly accurate measurements of inductance and capacitance. Unlike standard multimeters that struggle with small passive components, the LC100-A utilizes high-speed microcontroller computation to deliver precise readings down to 0.01pF for capacitors and 0.001uH for inductors. This makes it the perfect companion for tuning RF circuits, designing switch-mode power supplies (SMPS), and testing custom-wound coils.

Featuring a clear, dual-line 1602 LCD display, the module provides real-time readings of both the measured value and the test frequency. It comes equipped with an onboard calibration (Zeroing) function that eliminates stray lead capacitance and inductance with a single button press, ensuring laboratory-grade accuracy. The board can be conveniently powered via a standard Mini-USB port or through an external 5V DC power terminal, making it highly versatile for both benchtop testing and field applications.

Features:

• High-Precision Measurement: Capable of measuring extremely small capacitance (down to 0.01pF) and inductance (down to 0.001uH).
• Dual-Line 1602 LCD: Displays measured values and test frequency simultaneously for comprehensive analysis.
• One-Touch Calibration: Onboard 'Zero' button easily calibrates out test lead resistance and stray capacitance.
• Flexible Power Options: Can be powered via the onboard Mini-USB port or through external 5V DC screw terminals.
• Four Intelligent Test Modes: Dedicated buttons for low capacitance, high capacitance, low inductance, and high inductance.
• Robust Build Quality: Features high-quality tactile switches, precision capacitors, and pre-installed brass standoffs for physical protection.

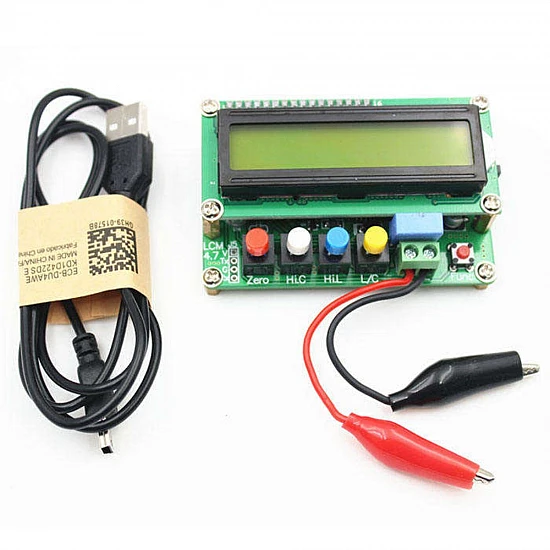

Package Includes:

1 x LC100-A High-Precision Digital LC Meter Module

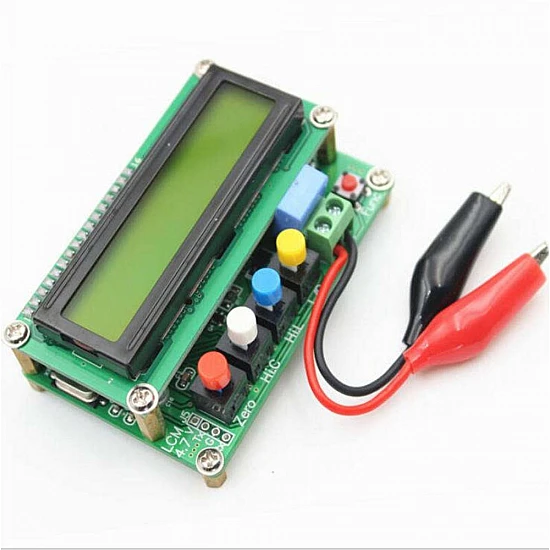

1 x Pair of Alligator Clip Test Leads

1 x Mini USB Power Cable
