JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC

JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
-22 %
JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
JHEMCU GHF411AIO Pro F4 OSD Flight Controller Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC
₹5,471
₹6,999

(inc GST)

  • Stock: In Stock
  • ₹54 FlyRobo Cashback.
  • SKU: FR-02-504
    3 or more ₹5,260
    10 or more ₹5,144

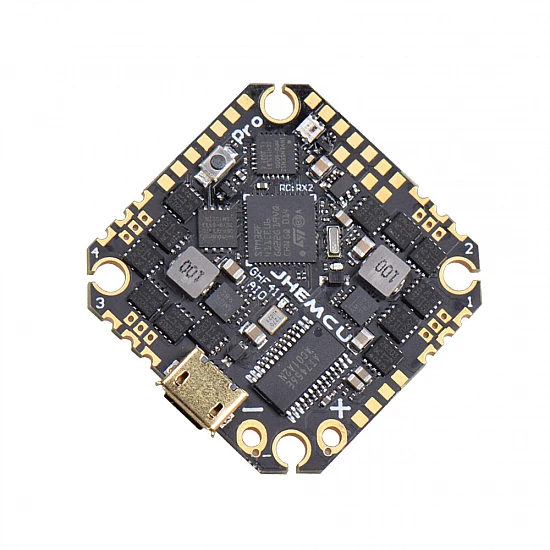

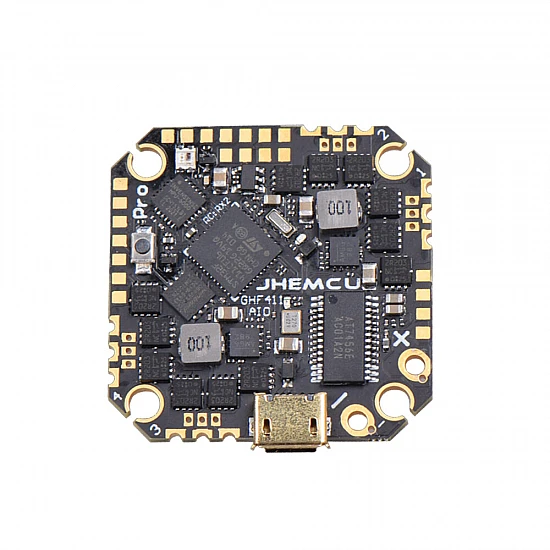

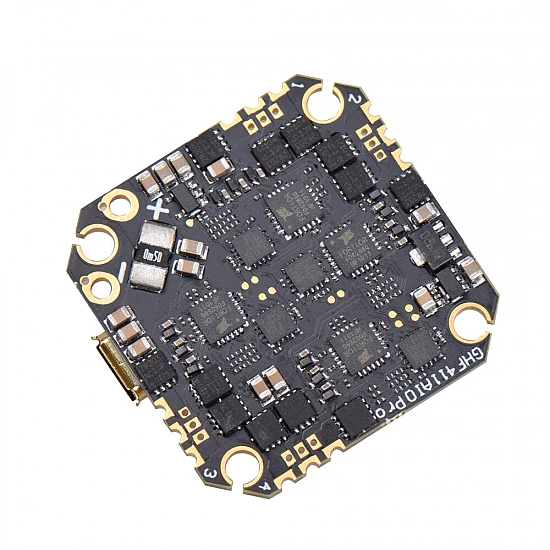

The JHEMCU GHF411AIO Pro F4 OSD Flight Controller with Built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC is now available! Improve the performance of your drone with this innovative all-in-one solution. Precision control and seamless maneuverability are guaranteed by the cutting-edge F4 OSD Flight Controller. With 2 to 6S batteries and the integrated 25A BLHELI_S 4in1 Brushless ESC, you can power your drone with ease. This combination is a must-have for drone fans and professionals alike because to its simple design and potent capabilities. Upgrade to the GHF411AIO Pro to have a flight experience unlike any other.

The JHEMCU GHF411AIO Pro F4 OSD Flight Controller will improve the capabilities of your drone. This amazing product, which has a built-in 25A BLHELI_S 2-6S 4in1 Brushless ESC, combines cutting-edge technology with ease.

You'll have unmatched precision and control over the flight dynamics of your drone thanks to its cutting-edge F4 OSD Flight Controller. Fly with assurance as this system guarantees fluid movement and reactivity.

Strong performance is guaranteed by the integrated 25A BLHELI_S 4in1 Brushless ESC, which supports a variety of battery alternatives from 2 to 6S. This adaptability enables you to alter the power configuration of your drone to suit your preferences and requirements.

Features:

Feature Value
Brand Name JHEMCU
Model GHF411AIO Pro
Item Name F4 OSD Flight Controller Built-in 25A 4in1 ESC
Size 32.5×32.5mm
Mounting Hole 25.5×25.5mm
Weight 7.4g
CPU STM32F411CEU6 (100MHZ)
MPU MPU6000 ( SPI)
Firmware Betaflight JHEF411
Built-in Betaflight OSD ( AT7456E) Yes
Built-in Current Sensor Yes
Support WS2812 LED Yes
Input Voltage 3-6S Lipo
Con. Current 25A
Firmware BLHELI_S
Support PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600 Yes

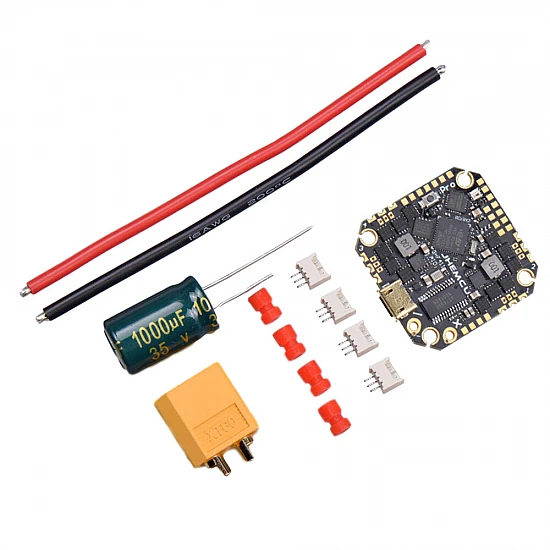

Package Includes :

1x F4 FC AIO 25A ESC Board
2x 16AWG Power Cable
1x XT30 Plug Connector
4x 1.25mm Connector for Motor(Plug and Play)
4x Anti-vibration Ball
1x 470UF/35V Electrolytic capacitor

Technical
Model

GHF411AIO Pro

CPU

STM32F411CEU6 (100MHZ)

Firmware

Betaflight JHEF411

Mounting Hole size

25.5×25.5mm

Size

32.5×32.5mm

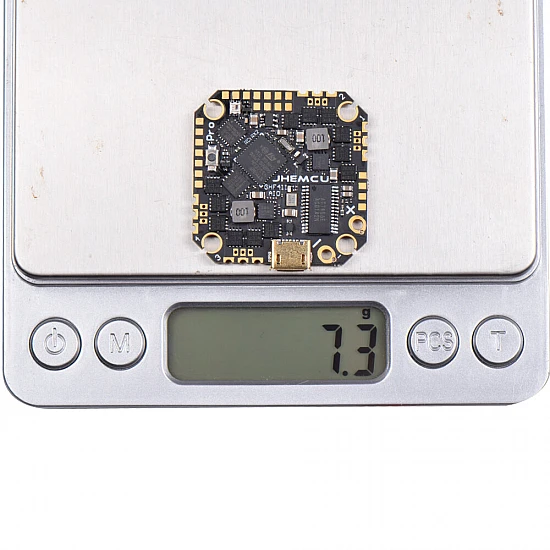

Weight

7.3 g

ESC
Input Voltage

3-6S Lipo
