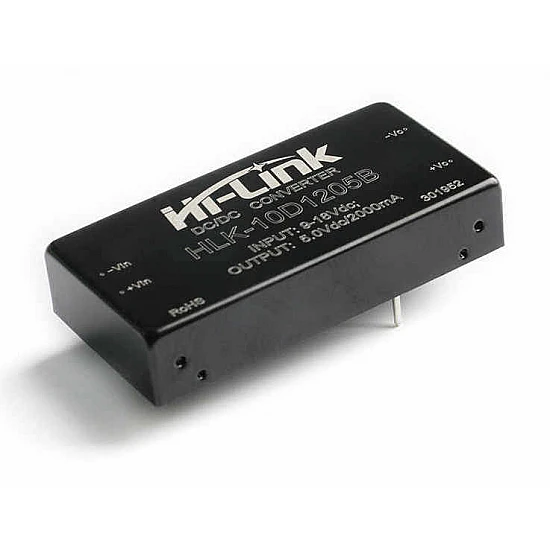

HLK-10D1205B 5V/10W DC-DC Switch Power Supply Module 10W DC / DC power module A series products output power is 10W, 4: 1 wide voltage input range, efficiency up to 91%, 1500VDC conventional isolation voltage, allowable operating temperature -40 ℃ to +85 ℃, with input under-voltage protection, The output over-voltage, over-current, and short-circuit protection functions, bare metal meets CISPR32 / EN55032 CLASS A, and is widely used in medical, industrial control, power, instrumentation, communication, railway, and other fields.
1. Ultra-wide range input (4: 1), output 10W
2. Conversion efficiency 91% (Typ)
3. Isolation voltage 1500Vdc
4. Ultra-low standby power consumption: 0.036W (typical value)
5. Superfast start: 1mS (typical value)
6. Operating temperature range: -40 ° C ~ + 85 ° C
7. Input under-voltage, output short circuit, overcurrent, overvoltage
8. Metal shell, low output ripple
9. International standard pins, PCB board plug-in installation
10. Adopting high-quality environmentally-friendly waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
11. High reliability, long-life design, long continuous working time.
1 x HLK-10D1205B 5V/10W DC-DC Switch Power Supply Module.
