GX16 7-Pin Circular Aviation Socket Plug Male and Female Panel Connector

GX16 7-Pin Circular Aviation Socket Plug Male and Female Panel Connector
GX16 7-Pin Circular Aviation Socket Plug Male and Female Panel Connector
-54 %
GX16 7-Pin Circular Aviation Socket Plug Male and Female Panel Connector
GX16 7-Pin Circular Aviation Socket Plug Male and Female Panel Connector
GX16 7-Pin Circular Aviation Socket Plug Male and Female Panel Connector
₹73
₹159

(inc GST)

  • Stock: In Stock
  • SKU: FR-07-093
    10 or more ₹69
    50 or more ₹67

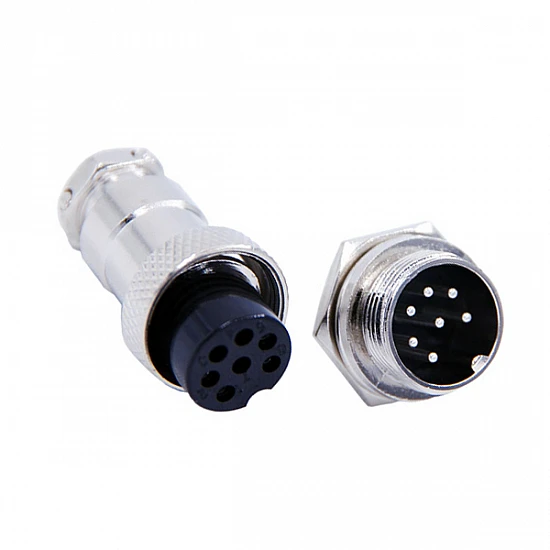

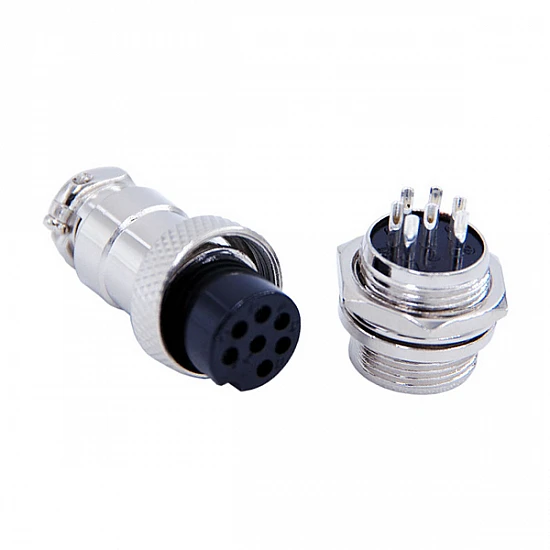

GX16 7-Pin Aviation Socket Plug, also known as circular shell connector. It is a panel-mount type connector with a male end mounted on the panel and a female connector usually plugs into it. It is used in places where a watertight connection is required.

Features:

  • Simple to install.
  • Male is panel mountable and female is cable mountable.
  • It has separate male and female pins.

Applications:

  • It is widely used in aviation, data acquisition systems, inclinometer, computer automation measurement and control systems,  audio/video, test and measurement, communications, etc.

Package Includes:

1 x GX16 7-Pin Circular Aviation Socket Plug Male and Female Panel Connector.

Technical
Color

Silver

Connector Type

GX16

Current Handling Capacity

5A

Gender

Male-Female Pair

No. of Contact Points

7

Operating Temperature Range

-20°C to 85°C

Plug Type

Aviator Plug

Rated Operating Voltage

250 V

Material

Metal & Bakelite

Length

Male: 20.5mm, Female: 36mm

Width

Male: 21mm ( Body diameter), Female: 17.5mm ( Body diameter)
