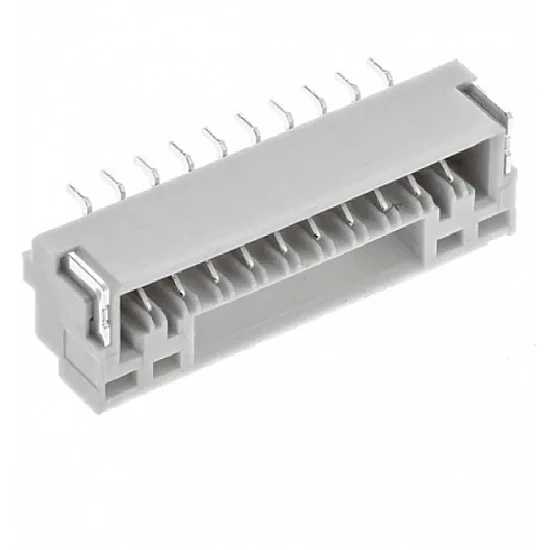

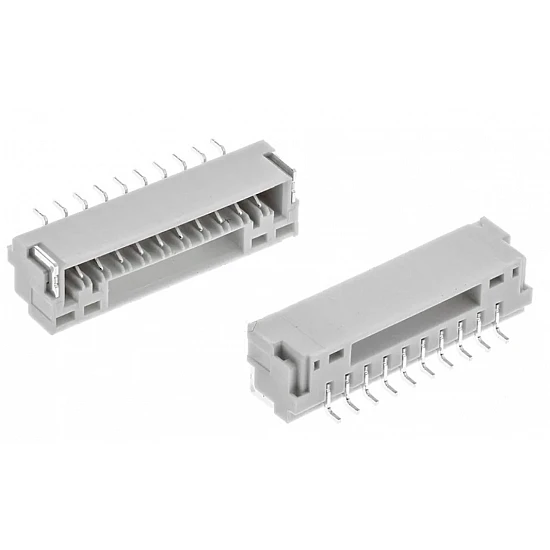

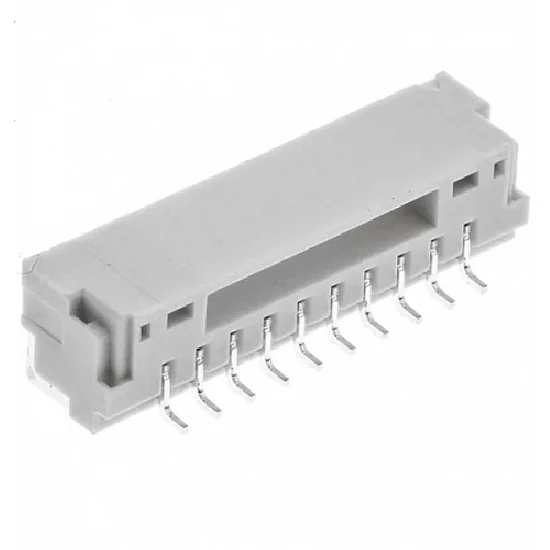

GH 1.25mm Pitch GH-9P SMT Horizontal Socket Connector with Lock

The GH 1.25mm Pitch GH-9P SMT Horizontal Socket Connector is a high-density interconnect solution engineered for modern electronic assemblies. Featuring a low-profile horizontal surface-mount design, this connector is ideal for space-constrained PCB layouts in consumer electronics and industrial modules. It is equipped with an integrated buckle and secure friction lock mechanism that ensures a stable, vibration-resistant connection, preventing accidental disconnection. The 1.25mm pitch allows for a compact footprint while maintaining high electrical reliability across all 9 pins. Constructed with heat-resistant materials suitable for SMT reflow soldering and durable phosphor bronze terminals, this connector provides excellent signal integrity and mechanical longevity for professional electronic manufacturing.

Features:

• Secure Locking System: Integrated buckle and friction lock provide superior vibration resistance for stable connectivity.
• Space-Saving 1.25mm Pitch: Compact design optimized for high-density wiring in small-scale electronic devices.
• Horizontal SMT Mounting: Right-angle surface-mount configuration saves valuable vertical space within enclosures.
• Reflow Solder Compatible: Manufactured with high-temperature resistant plastic to withstand standard SMT processes.
• Reliable Signal Integrity: Phosphor bronze terminals ensure consistent conductivity and durability over multiple cycles.
• Versatile Application: Perfect for drones, portable devices, and low-profile industrial control boards.

Package Includes:

1 x GH 1.25mm Pitch GH-9P SMT Horizontal Socket Connector with Buckle and Lock
