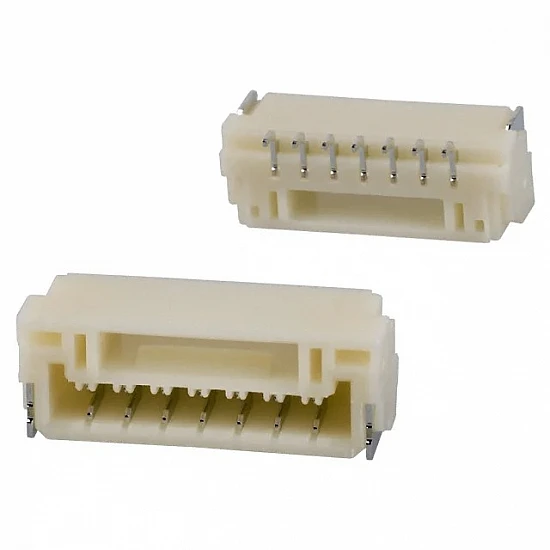

GH 1.25mm Pitch GH-7P SMT Horizontal Socket Connector with Lock

The GH 1.25mm Pitch GH-7P SMT Horizontal Socket Connector is a high-precision interconnect solution designed for high-density electronic assemblies. This connector features a low-profile, 90-degree horizontal surface-mount (SMT) design, making it an ideal choice for compact PCB applications where vertical space is limited. Equipped with a secure friction lock and buckle mechanism, it ensures a stable and vibration-resistant connection, effectively preventing accidental dislodgement in mobile or industrial devices. The 1.25mm pitch allows for a miniature footprint while maintaining reliable electrical contact across all 7 pins. Manufactured from high-grade heat-resistant plastic and durable phosphor bronze terminals, this GH series connector provides excellent signal integrity and mechanical longevity for professional electronic manufacturing and DIY projects.

Features:

• Secure Locking System: Integrated buckle and friction lock provide superior vibration resistance for stable connectivity.
• Ultra-Compact 1.25mm Pitch: Designed for high-density wiring in modern, small-scale electronic devices.
• Horizontal SMT Mounting: Right-angle surface-mount configuration saves valuable vertical space within device enclosures.
• Reflow Solder Compatible: Constructed from high-temperature resistant materials suitable for standard SMT processes.
• High Signal Integrity: Phosphor bronze terminals ensure consistent conductivity and durability over multiple cycles.
• Robust Construction: Engineered to withstand the rigors of industrial-grade operational cycles.

Package Includes:

1 x GH 1.25mm Pitch GH-7P SMT Horizontal Socket Connector with Buckle and Lock
