FPV 5.8G 600MW 48 Channel Wireless AV TX & RX TS832 RC832 - Wireless Audio Video Transmitter Receiver system

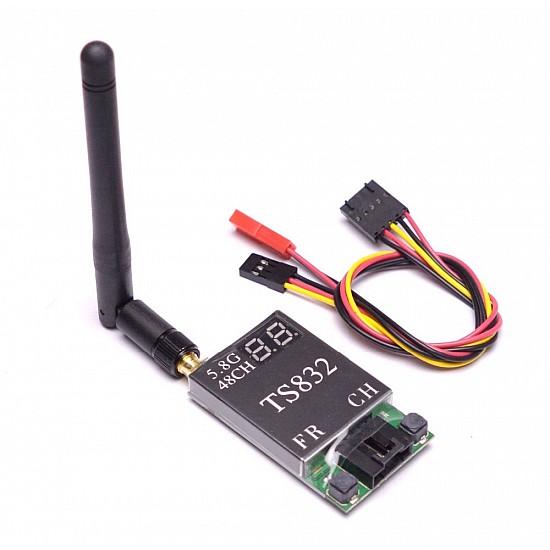

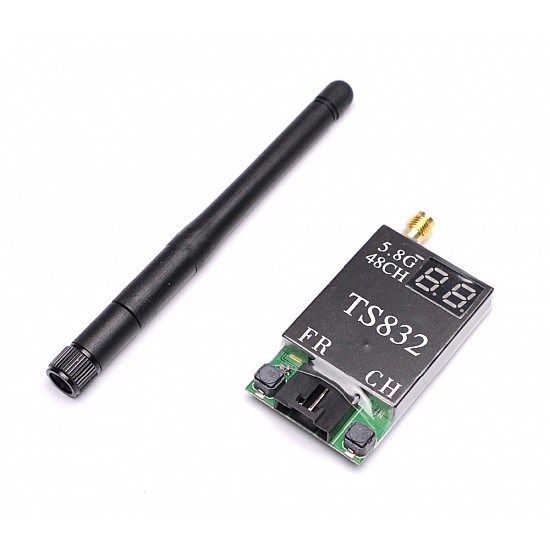

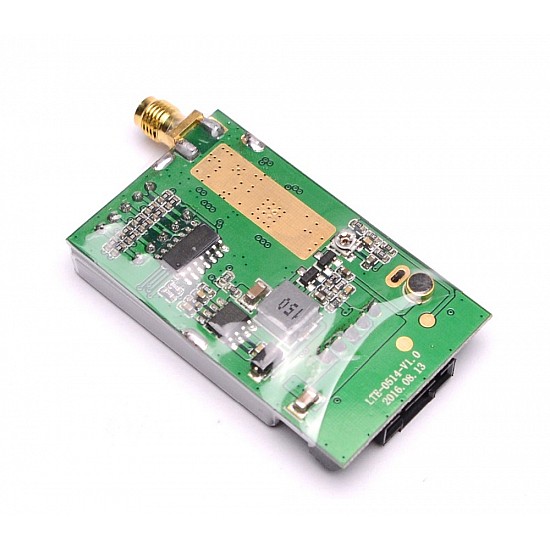

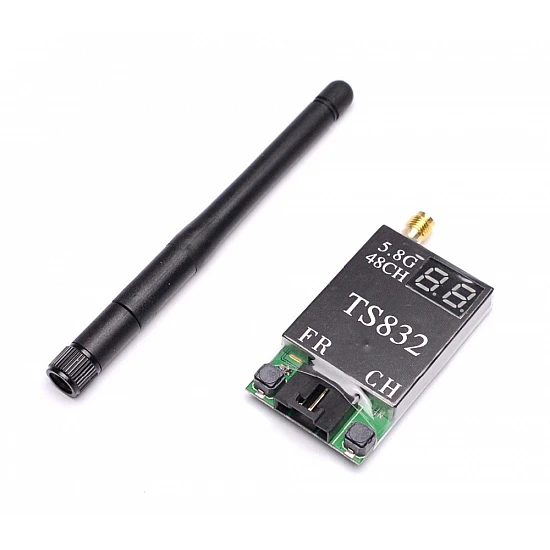

Transmitter TS832:

New version upgrade to 48 channels:cover A,B,C,D,E,F band,and will be more stable and better heat dispersion.600mW long range AV wireless system,about 5km range in the open area.Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching.Frequency control:built-in frequency and phase lock loop.Independent video and audio signal outputs,real-time positioning which frequency band and which channel received; Power off memory: Replay the very last frequency band and channel.

Specification:

• TS832 transmitter Antenna
• Gain: 2db
• frequency: 5.8G
• forwarding Power: 600mA
• Power consumption: 7.4-16V (3S Lipo suggested)
• Video format: NTSC / PAL Auto
• Operating current: 220mA at 12V
• bandwidth Audio: 6.5 M
• bandwidth video: 8 M
• weight: about 22g

Frequency

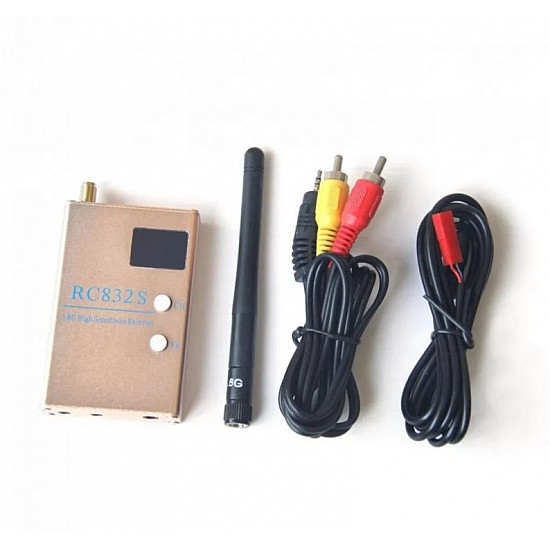

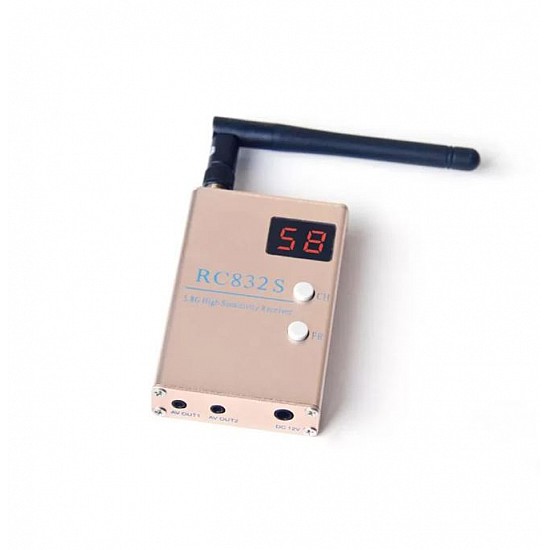

Receiver RC832:

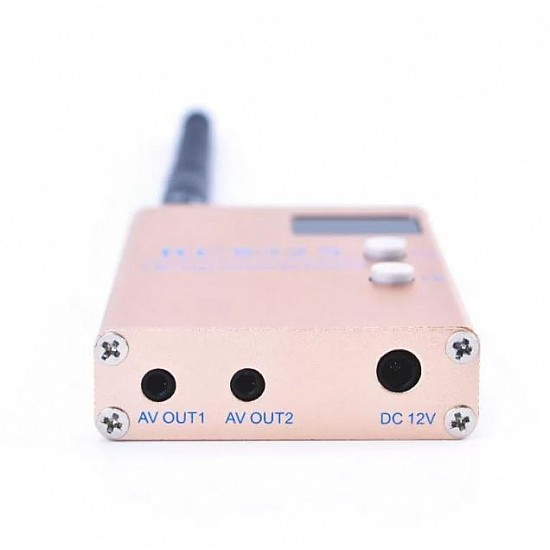

The RC832 plus Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two-button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipo into the included prewired cable with mini JST. It just doesn't get any simpler than this.

Specification:

• Video format supported: NTSC/PAL
• Antenna connection: RP-SMA, jack
• Power input: 12V
• Working current: 200mA max
• Antenna impedance: 50
• Rx sensitivity -90dBm
• Video impedance: 75
• Video format: NTSC/PAL auto
• bandwidth video: 8 M
• weight: about 22g

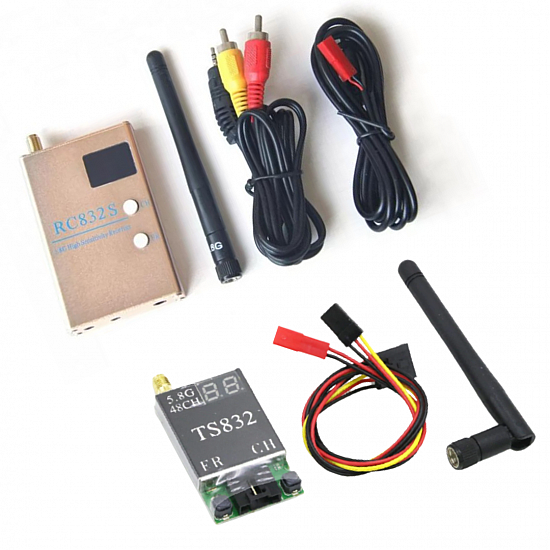

Package Content:

1 x TS832 (TX)
1 x RC832 (RX)
2 x Antennas (2db)
1 x Basic wires set
